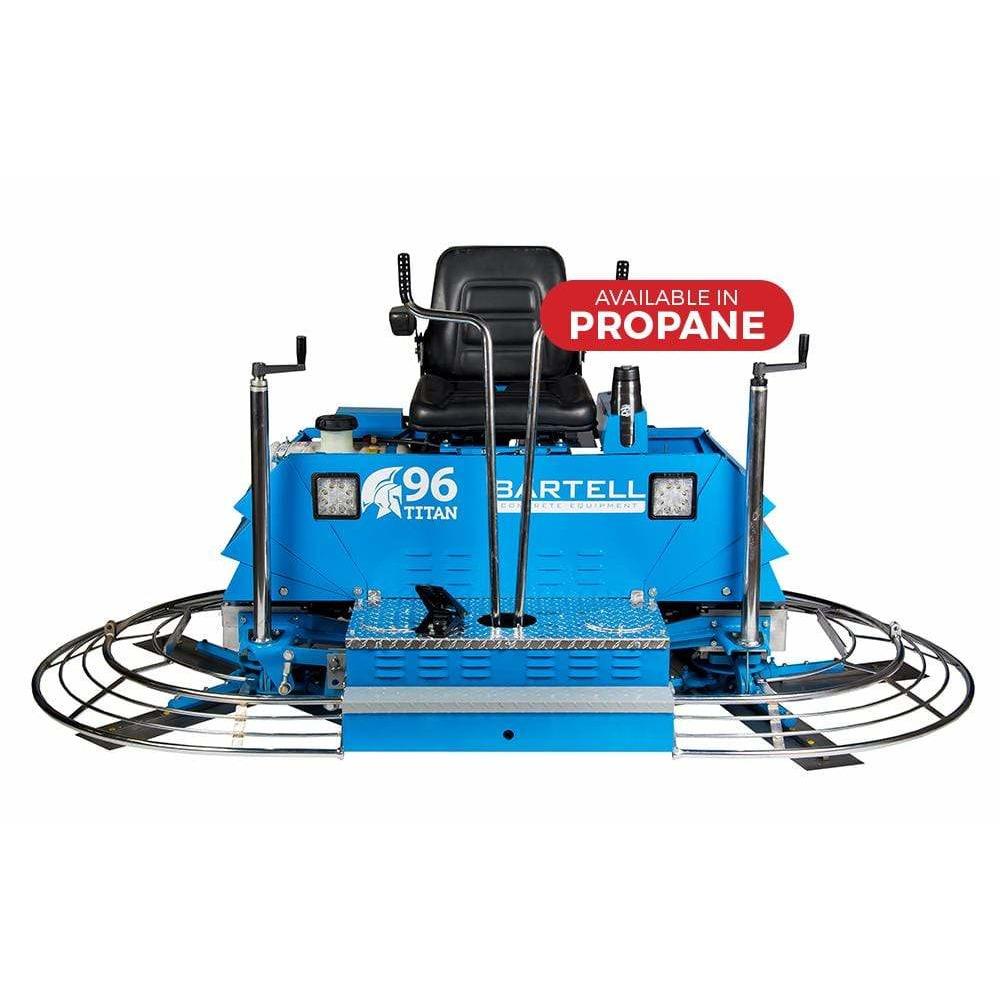

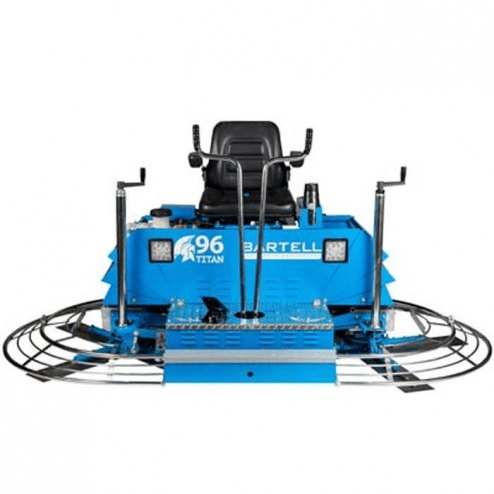

Bartell Global Titan 96 Ride On Power Trowel Machine, Concrete, Vanguard Engine, Propane Option - TITAN96


Well respected for its power and torque in a sleek, low profile design. TheTitan 96 8-foot rider delivers an incredibly smooth finish while providing optimum operator comfort. Lower profile design gives the operator a better feel and sightline of the slab. Blade speeds of 180 RPM can be reached with this machine and it comes standard with Dual Position Steering.

Features

  • 6″ lower to the ground
  • 19″ height from bottom of foot to seat

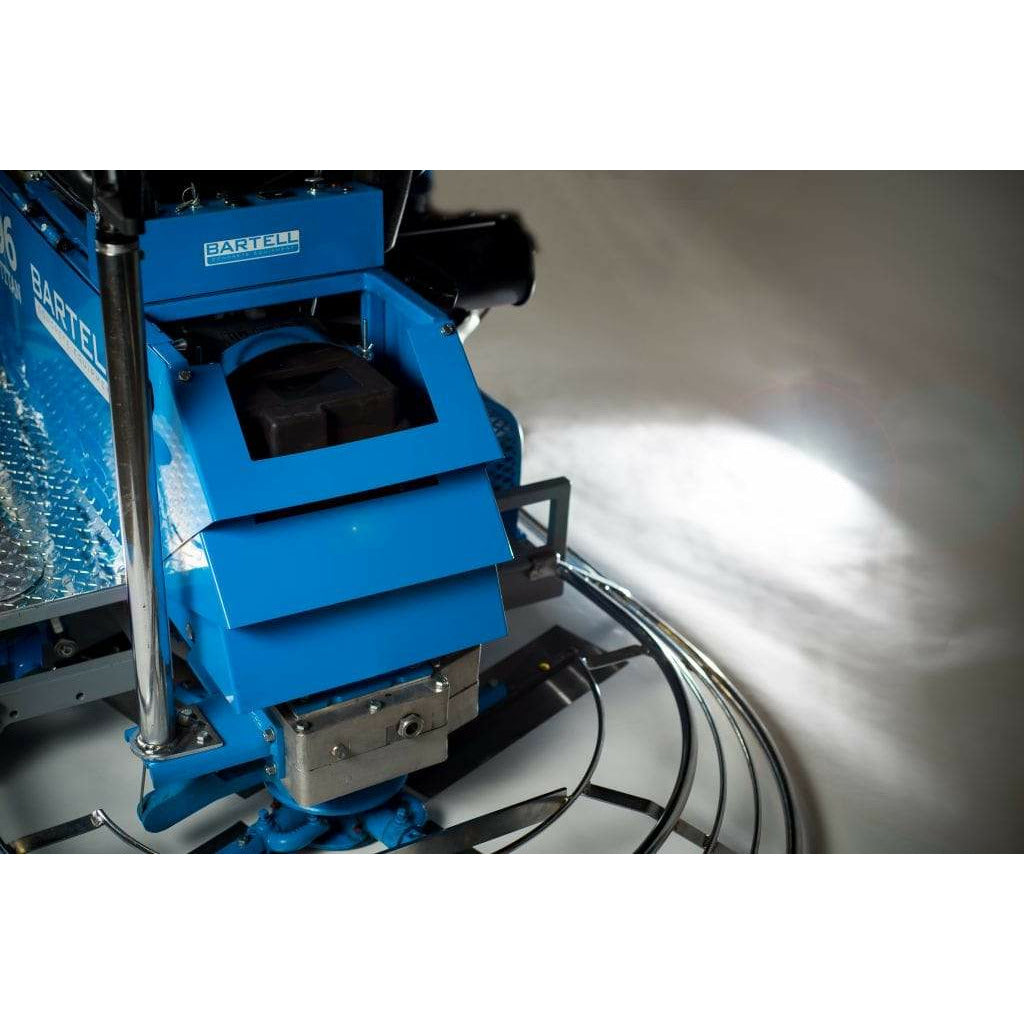

  • LED Lights in front and rear
  • 12v USB charging port and cup holder
  • Greater visibility to blade
  • New accelerator pedal
  • Low profile design (puts operator closer to concrete)
  • Heavy duty gearbox
  • Multiple engine selection
  • Weight plate add-on (add up to 225lbs)
  • New compact transport system
  • Lift off front panel for easy maintenance
  • Under seat safety switch
  • Completely interchangeable steering positions
  • Grizzly Blades
  • Greater RPM (Up to 180 RPM with select engines)
  • Four lift points, in addition to a single lift hook under the seat.
  • Included toolbox
Specifications

Type: Panning & Finishing

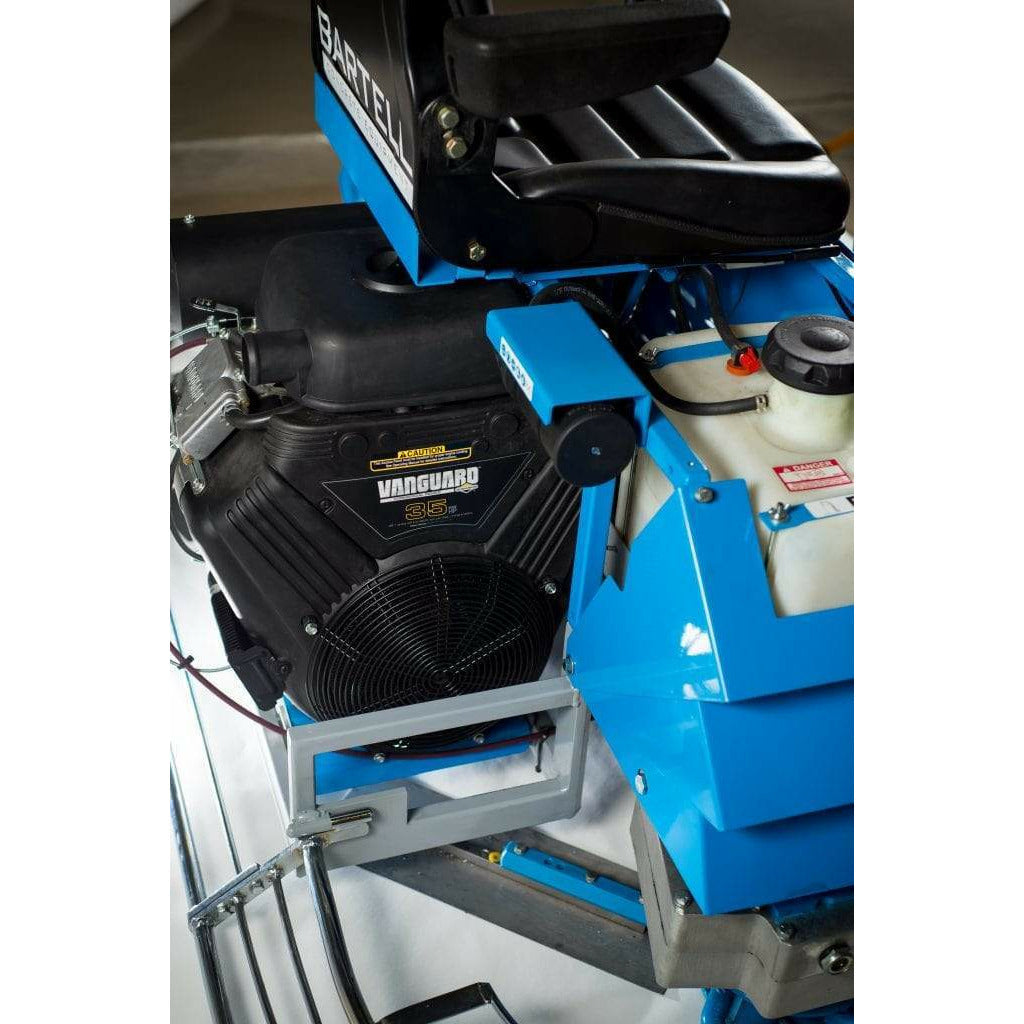

Power Source: Gas/Petrol – Vanguard 35/37 EFI
                          Propane – Vanguard 993cc
Power Output: Gas/Petrol – 35/37hp
                           Propane – 35hp
RPMs: 180
Float Blade Size: 10” x 18” (25cm x 46cm)
Finish Trowel Size: 6” x 18” (15cm x 46cm)
Combination Blade Size: 8” x 18” (20cm x 46cm)
Float Pan: 46” (117cm)
Operating Weight: 940lbs (427kg)
Length: 96” (244cm)
Width: 48” (122cm)
Height: 46” (117cm)
Weight: 904lbs (410kg)
