Product Description

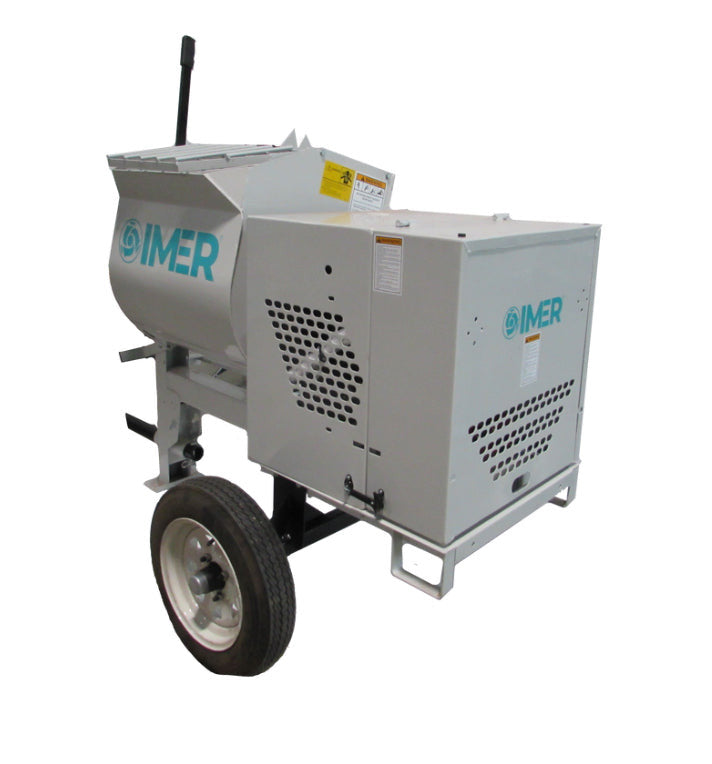

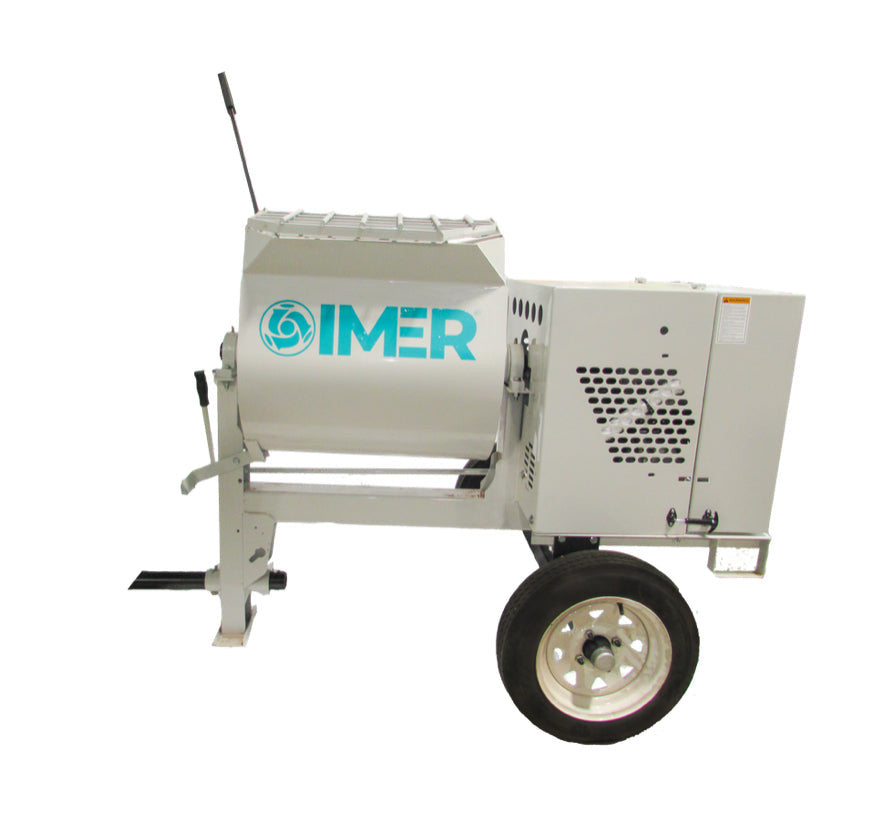

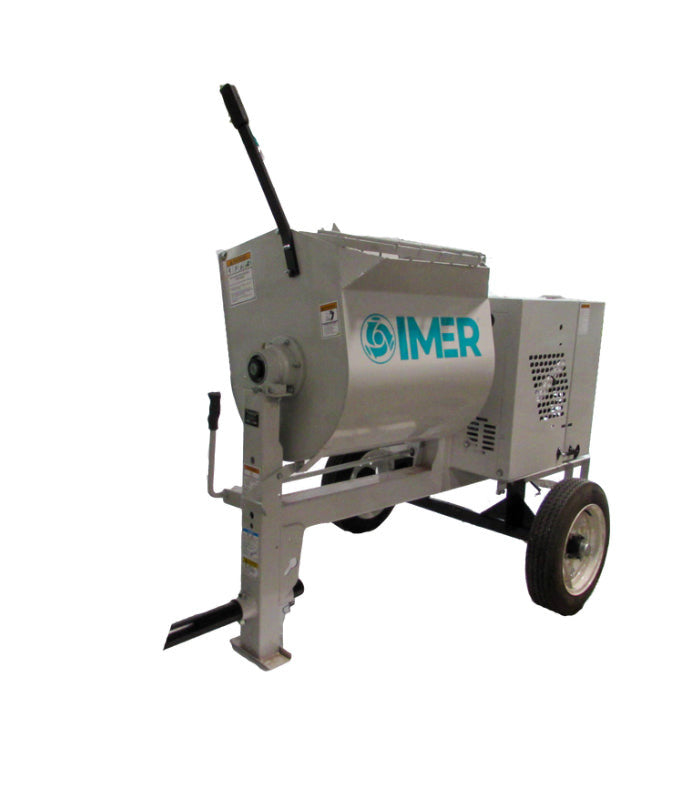

The IMER HSM 8 is a powerful, towable horizontal shaft mortar mixer designed for mixing mortar, stucco, and grout efficiently. It uses a gearbox design that transfers power to the mixing paddles, with available Honda GX gas engine or 120V / 240V industrial electric motor configurations.

Built for jobsite mixing, the HSM 8 features an 8 cu ft batch output, aggressive paddles, a tow bar, and a standard safety grate. Its enclosed quiet gearbox helps reduce heat and gear wear, while the grab handle and locking handle support easier and more controlled dumping.

Key Features

  • Towable mortar mixer
  • 8 cu ft batch output
  • 2.5 - 3 bag capacity
  • Mixes mortar, stucco, and grout
  • Honda GX 240 gas engine option
  • 120V / 240V 1.5 HP electric motor option
  • Enclosed quiet gearbox
  • Aggressive paddles for fast, complete mixing
  • Tow bar included
  • Extra large safety grate
  • Large grab handle for dumping
  • Locking handle helps prevent unexpected dumping
  • 2" ball hitch standard
  • Optional pintle loop available upon request
  • Optional torsion bar axle available upon request
  • Optional spiral mixing blades with heavy-duty design
  • Noise level under 79 dB

Full Specification

Specification HSM 8
Model # Gas / Steel (Poly) 1130081 (1130083)
Model # Electric / Steel (Poly) 1130082 (1130084)
Bag Capacity 2.5 - 3
Batch Output 8 cu ft
Gas Engine Honda GX 240, 8 HP
Electric Motor 120V / 240V, 1.5 HP
Tire Size 5.3 x 12 in
Charging Height 59 3/4 in
Weight 650 lbs
Width 45 in
Length 73 in
Length with Tow Bar 92 3/4 in
Height 57 1/2 in
Noise Level Under 79 dB

Standard Equipment

  • 8 HP Honda GX 240 or 120/240V 1.5 HP Electric Motor
  • Tow Bar
  • Aggressive paddles to mix fast and complete

Downloads
