Product Description

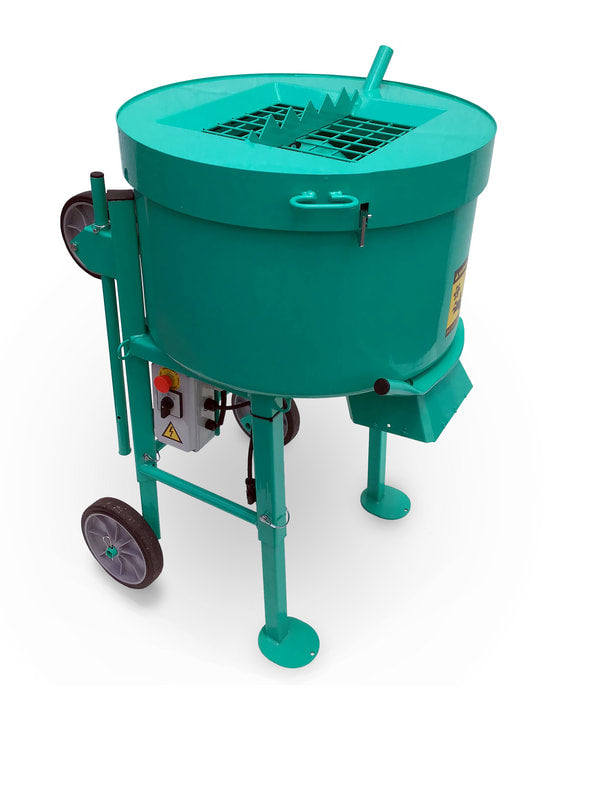

The IMER Mix 120 Plus is a portable vertical shaft paddle mixer designed for mortar, stucco, grout, and dry pack cement mixing. Its vertical shaft mixing action keeps the paddles in the mix, helping materials blend thoroughly and quickly without air entrapment.

Built with a 120V 2 HP electric motor with reverse, the Mix 120 Plus provides strong mixing torque and can produce a wheelbarrow of material every 3 minutes. It includes a rubber paddle kit and transport wheel kit for practical jobsite use.

Key Features

  • Portable vertical shaft paddle mixer
  • Designed for mortar, stucco, grout, and dry pack cement
  • Produces a wheelbarrow of material every 3 minutes

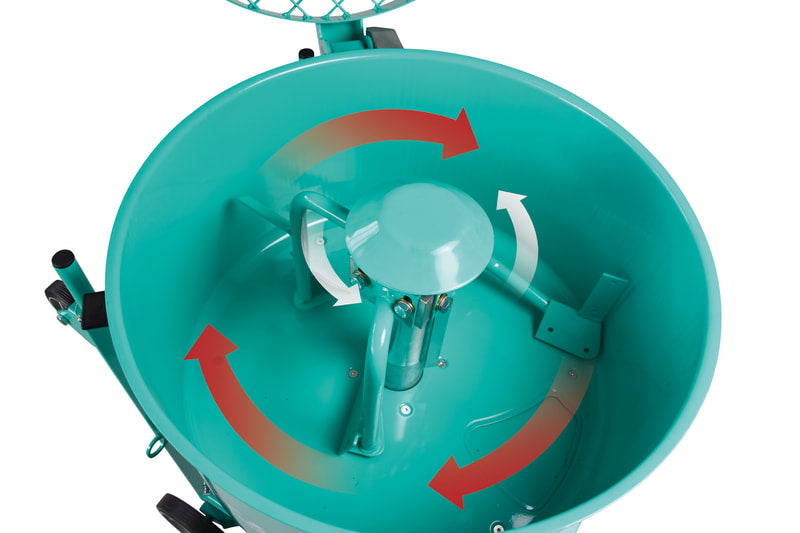

  • Vertical shaft mixing action helps mix materials thoroughly and quickly
  • Helps mix without air entrapment
  • 120V 2 HP electric motor with reverse
  • Gearbox drive with reverse

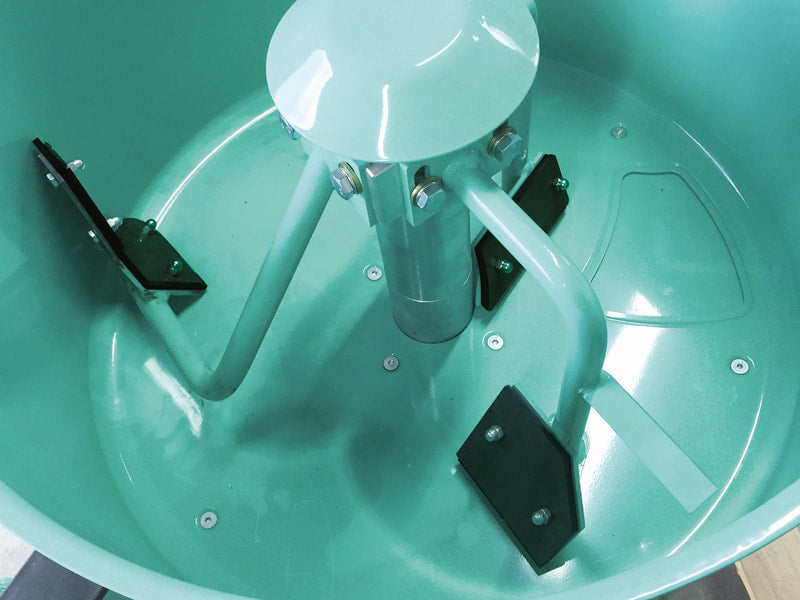

  • Rubber paddle kit included
  • Transport wheel kit included

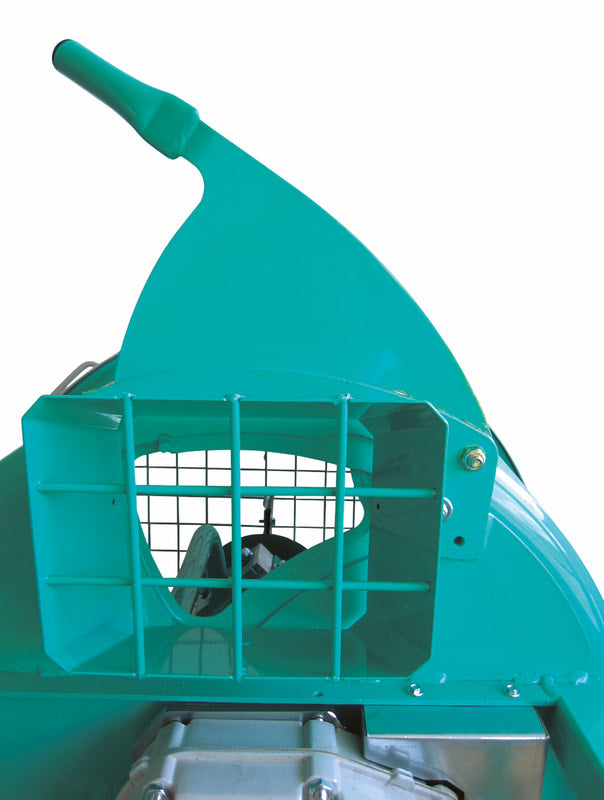

  • Controlled discharge outlet
  • 3 cu ft batch output
  • 4.25 cu ft drum capacity
  • 70 dB(A) noise rating

Full Specification

Specification Details
Drum Capacity 4.25 cu ft
Batch Output 3 cu ft
Drum Diameter 30 in
Maximum Aggregate Size 3/8 in
Paddle Speed 38 rpm
Motor Rating 120V, 2 HP
Current Draw 15 amps
Noise 70 dB(A)
Weight 286 lbs
Boxed Weight 310 lbs
Width 30 in
Boxed Width 31 in
Length 33 in
Boxed Length 35 in
Height 50 in
Boxed Height 38 in


Standard Equipment

  • 2 HP, 110V motor
  • Hi-torque gearbox drive with reverse
  • Hard solid wheels
  • Loading wheels
  • 4.25 cu ft drum capacity
  • 3 cu ft batch output
  • Vertical paddles good for mixing mortar, stucco and grout

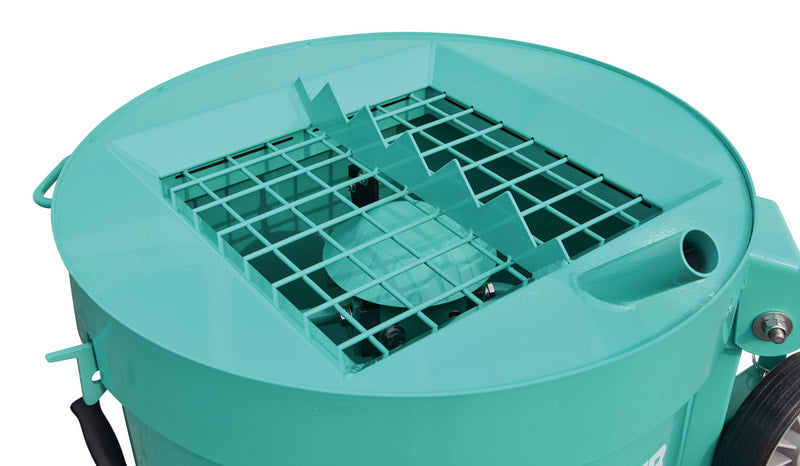

  • New iDust Grate (dust abatement grate)
