Product Description

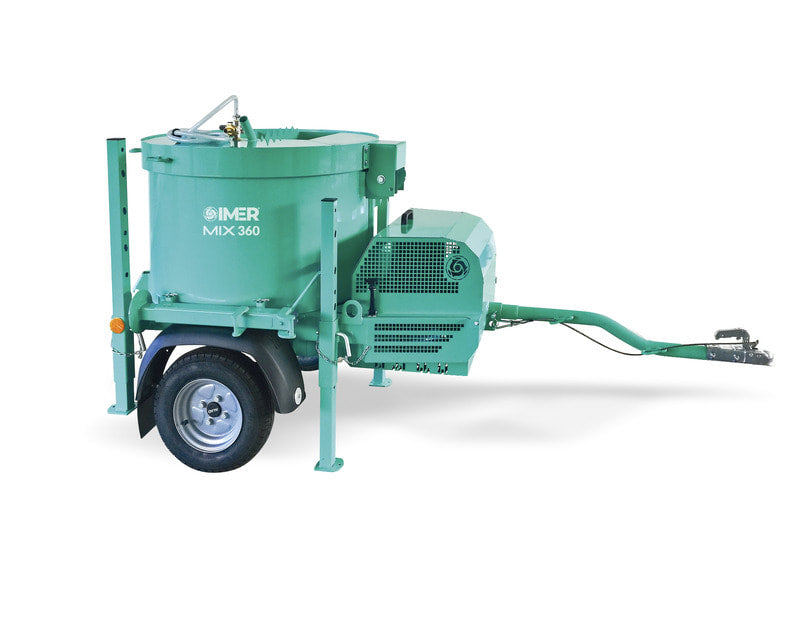

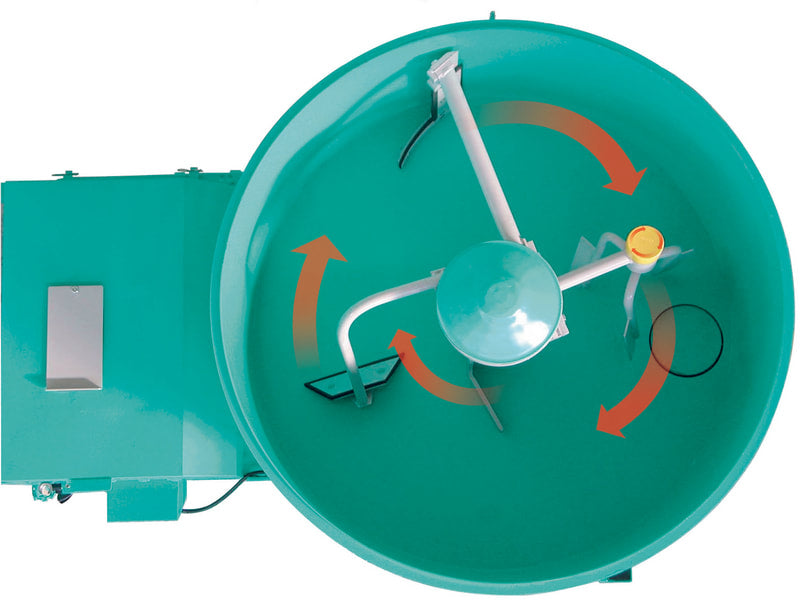

The IMER Mix 360 is a towable vertical shaft mixer designed for high-production jobsite and plant mixing. Its vertical shaft mixing action uses concrete batch plant design principles, allowing the paddles to rotate through the mix instead of lifting and dropping material like conventional mortar mixers.

The Mix 360 is built for very low slump materials, including dry pack mortar, refractory cement, and UHPC. It features a 12 cu ft drum capacity, 9 cu ft batch output, adjustable leg heights, tow bar, torsion bar suspension, and an auto-shutdown safety grate for practical jobsite operation.

Key Features

  • Towable vertical shaft mixer
  • Designed for jobsite and plant mixing
  • Uses concrete batch plant mixing principles
  • Mixes very low slump materials
  • Suitable for dry pack mortar, refractory cement, and UHPC
  • 12 cu ft drum capacity
  • 9 cu ft batch output
  • 3/8 in maximum aggregate size
  • Auto-shutdown safety grate
  • Adjustable leg heights
  • Tow bar included
  • Torsion bar suspension
  • 18 in wheel size
  • 30 in maximum discharge height
  • 18 in minimum discharge height

Full Specification

Specification Details
Drum Capacity 12 cu ft
Batch Output 9 cu ft
Maximum Aggregate Size 3/8 in
Discharge Height 30 in max / 18 in min
Wheel Size 18 in
Machine Weight 787 lbs / 794 lbs
Electric Motor 240V, 5 HP, Single Phase
Gas Engine 11 HP Honda GXV 390
Width 44 in
Length 59 in
Height 58 in
Standard Equipment Auto-Shutdown Safety Grate, Adjustable Leg Heights, Tow Bar, Torsion Bar Suspension



Standard Equipment

  • Auto-Shutdown Safety Grate
  • Adjustable Leg Heights
  • Tow Bar
  • Torsion Bar Suspension
