Product Description

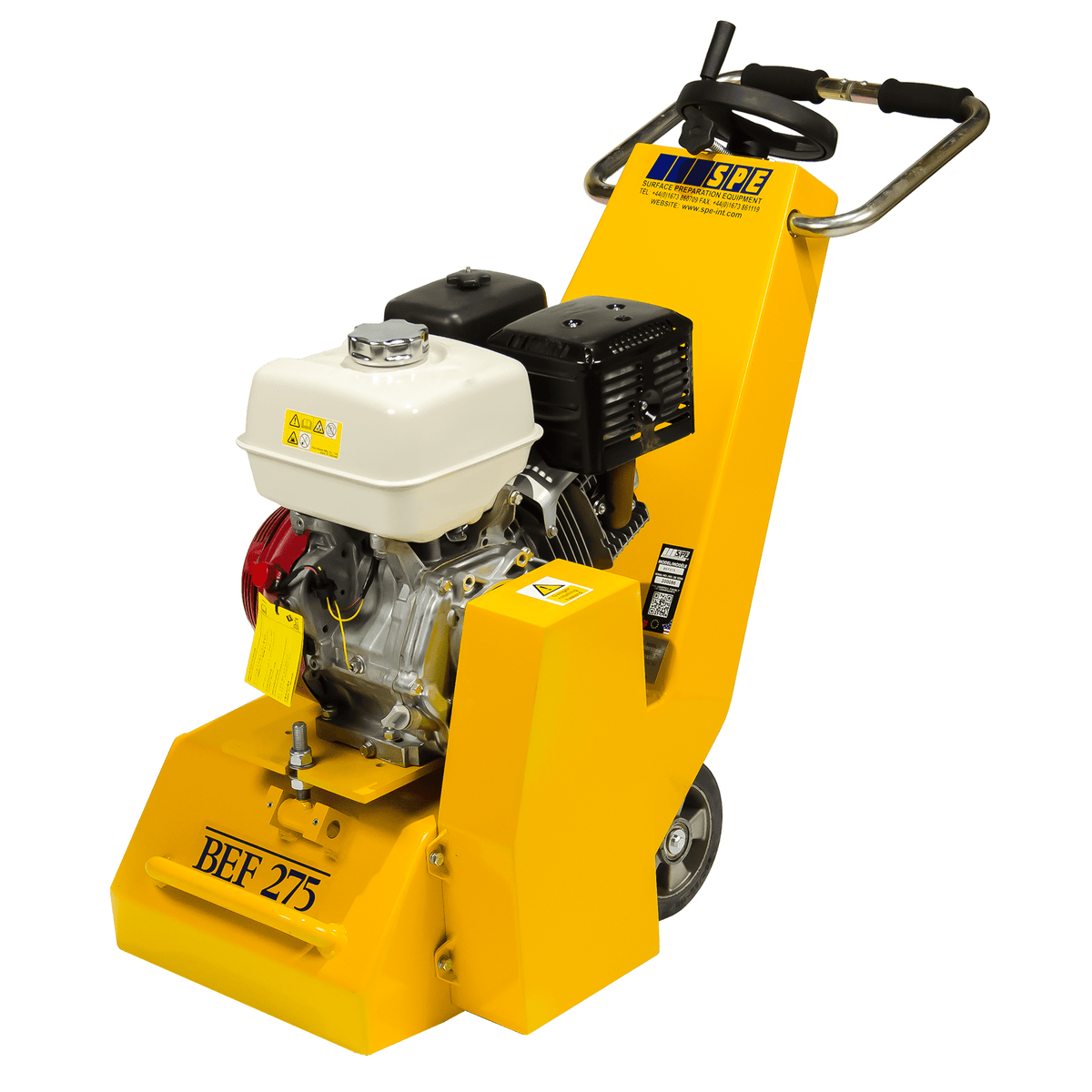

Bartell Global SPE Scarifer, Gas/Electric Powered (Includes Drum and Shafts) - BEF275

Integrating decades of specialized design expertise with the latest computer-aided design (CAD) technology, the BEF 275 Multiplane Range delivers a high-performance surface preparation solution built for professional contractors. This rugged and reliable machinery line is engineered to provide maximum precision, durability, and efficiency across a wide range of challenging concrete and industrial floor profiling applications.

Features

  • 275mm (10.8″) working width
  • 400v 3-phase, gasolene/petrol versions
  • Rigid, compact design
  • 50mm dust extraction port
  • Dust free when operated with SPE 316 vacuum
  • Six flail shafts, heavy duty T.C.T. cutters
  • Forward mounted cutter drum for perfect balance
  • Side plate access for quick and easy cutter drum removal
  • Handle height fully adjustable for operational control
  • Monocoque construction is rigid, strong and accurate
  • Accurate depth control for precision surface texture and maximum cutter life

Typical Applications

  • Removal of paint, rust, grease, ice deposits, line markings and concrete laitence
  • Cleaning and texturing concrete and asphalt
  • Concrete reduction and scabbling
  • Removal of roof chippings
  • Grooving applications
  • Removal of waterproof membranes from bridge and car park decks

Specifications

Type

Petrol/Gas

Electric

Part Number

BEF 275-1

BEF 275-2

Power Output

11hp

10hp

Voltage

-

400

Cycles

-

50hz

Cutter Head Speed

1640rpm

1640rpm

Machine Dimensions

Length Width Height Weight

1220mm (48")

1220mm (48")

511mm (20.1")

511mm (20.1")

900mm (35.4")

900mm (35.4")

145kg (320lbs)

150kg (331lbs)

Working Width of Cutters

275mm (10.8")

275mm (10.8")

Working Distance from Wall

65mm (2.6")

65mm (2.6")

Engine/Motor

3000 rpm

2800 rpm



Downloads

Specifications Sheet
