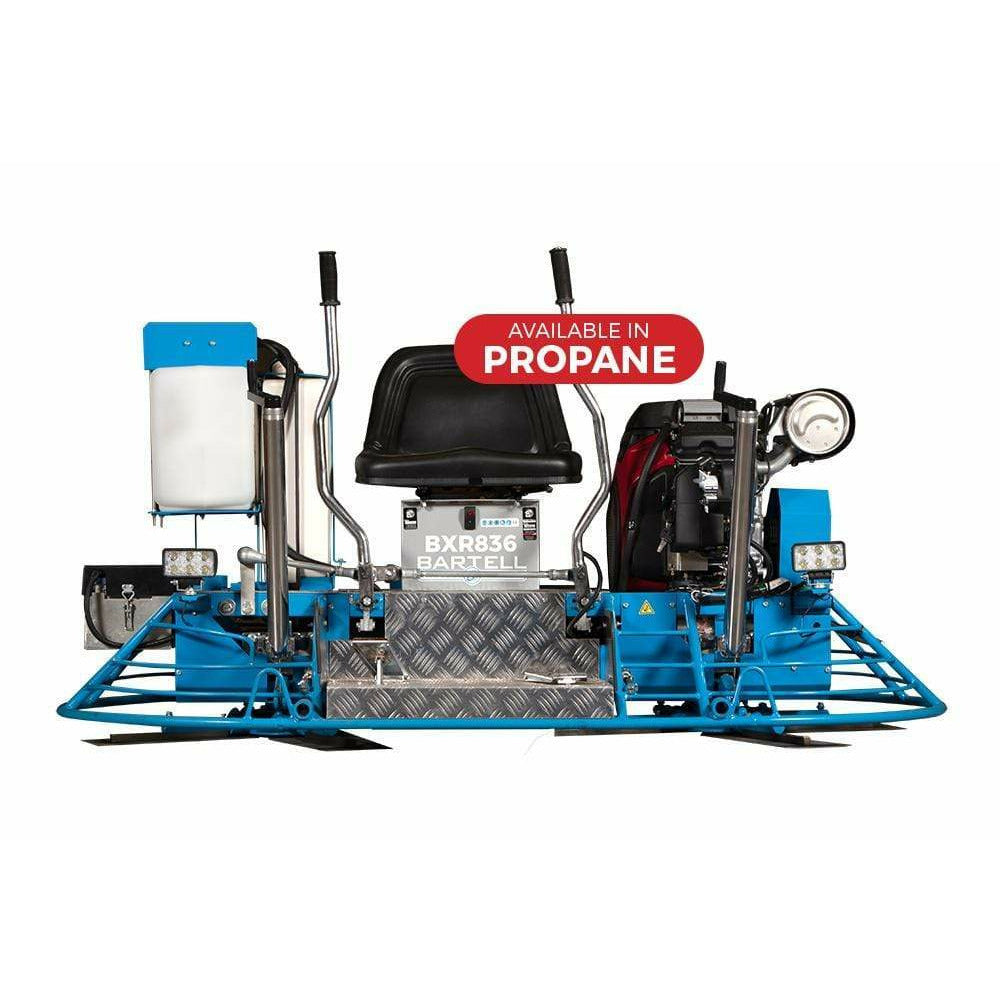

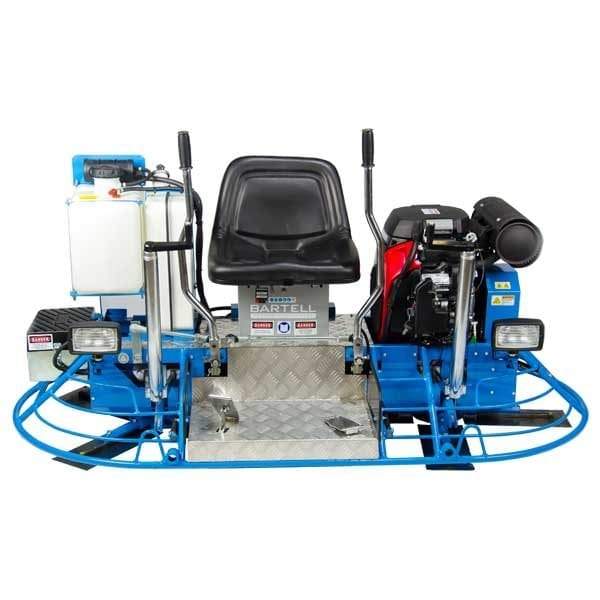

Bartell Global Ride-On Power Trowel, Honda/Briggs Engine, Propane Option - BXR836


At just 728lbs, and very compact dimensions, this unit can be transported with ease and placed on a slab very early in the process. Great for getting into tight areas and for use where stickups are present. The BXR 836 is also great for multi-story applications due to its ease of hoisting. With its low profile, this unit gives the best sight-line of the slab and you can feel the concrete as it progresses in its finish transition. Also, a perfect jump to riding, for those currently only walking.

Features

  • Heavy-duty gearbox provides a longer life and less maintenance.
  • Twin stick, multi-directional levers deliver immediate, responsive steering.
  • Low rider version.
  • Non-overlapping design for floating/panning.
  • Dual 4 blade trowel standard.
Specifications

Type: Panning & Finishing

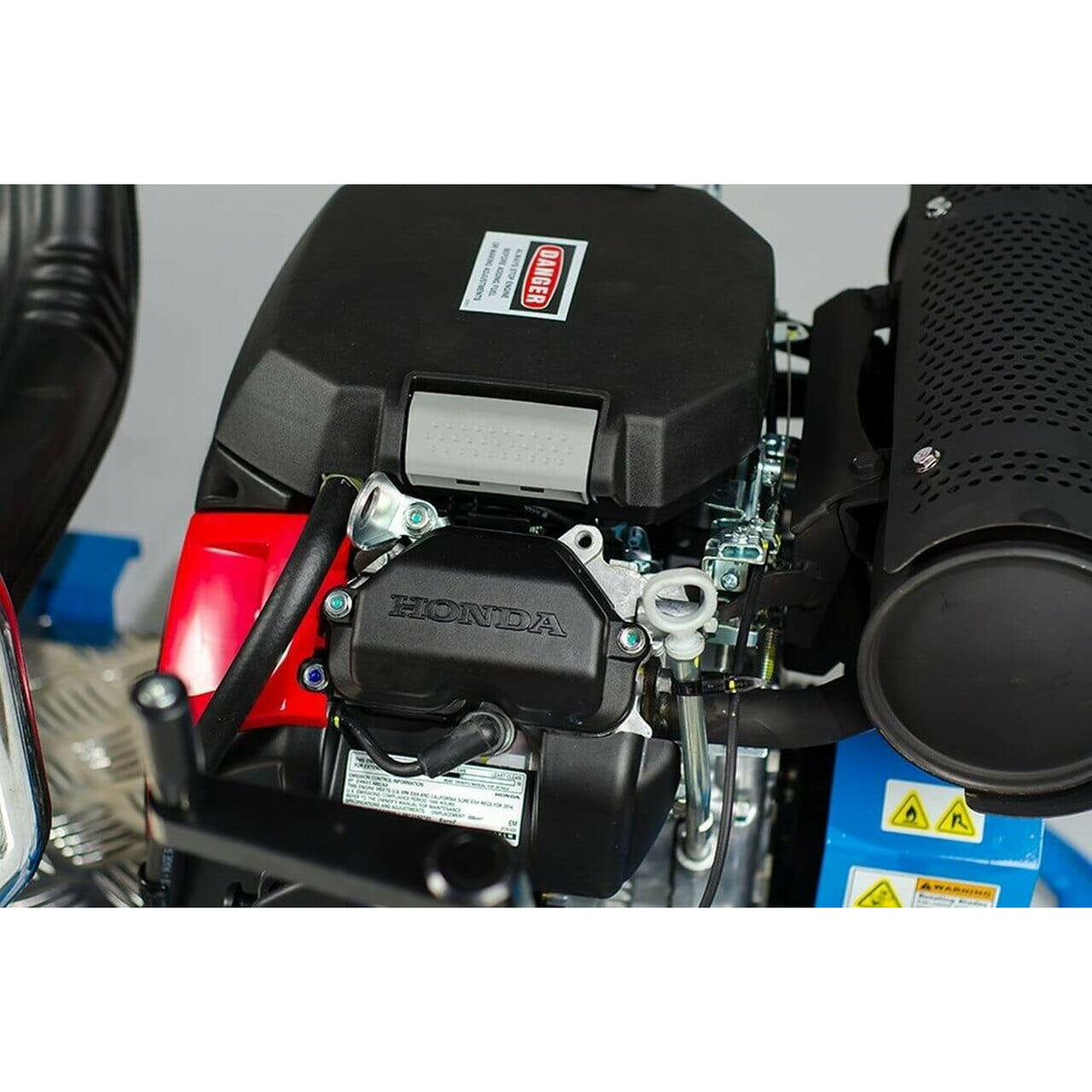

Power Source: Gas/Petrol – Honda GX690
                          Propane – Vanguard 627cc
Power Output: Gas/Petrol – 22hp (16kw)
                           Propane – 21hp (15.7kW)
RPMs: 140
Float Blade Size: 10” x 14” (25cm x 36cm)
Finish Trowel Size: 6“ X 14” (15cm X 36cm)
Combination Blade Size: 8” x 14” (20cm x 36cm)
Float Pan: 36.5” (93cm)
Operating Weight: Up to 772lbs (350kg)
Length: 75.5” (192cm)
Width: 38.5” (98cm)
Height: 41” (104cm)
Weight: 728lbs (330kg)

Manuals

Spec Sheet
