Product Description

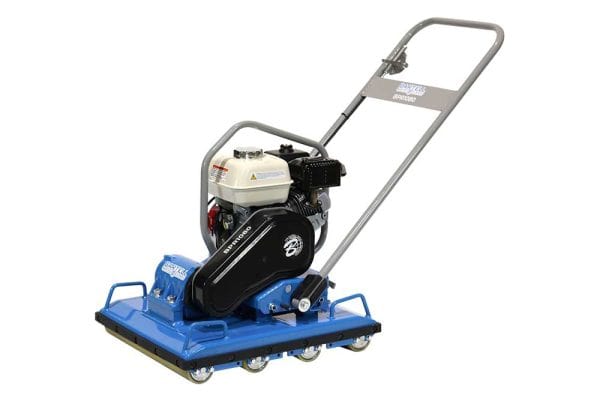

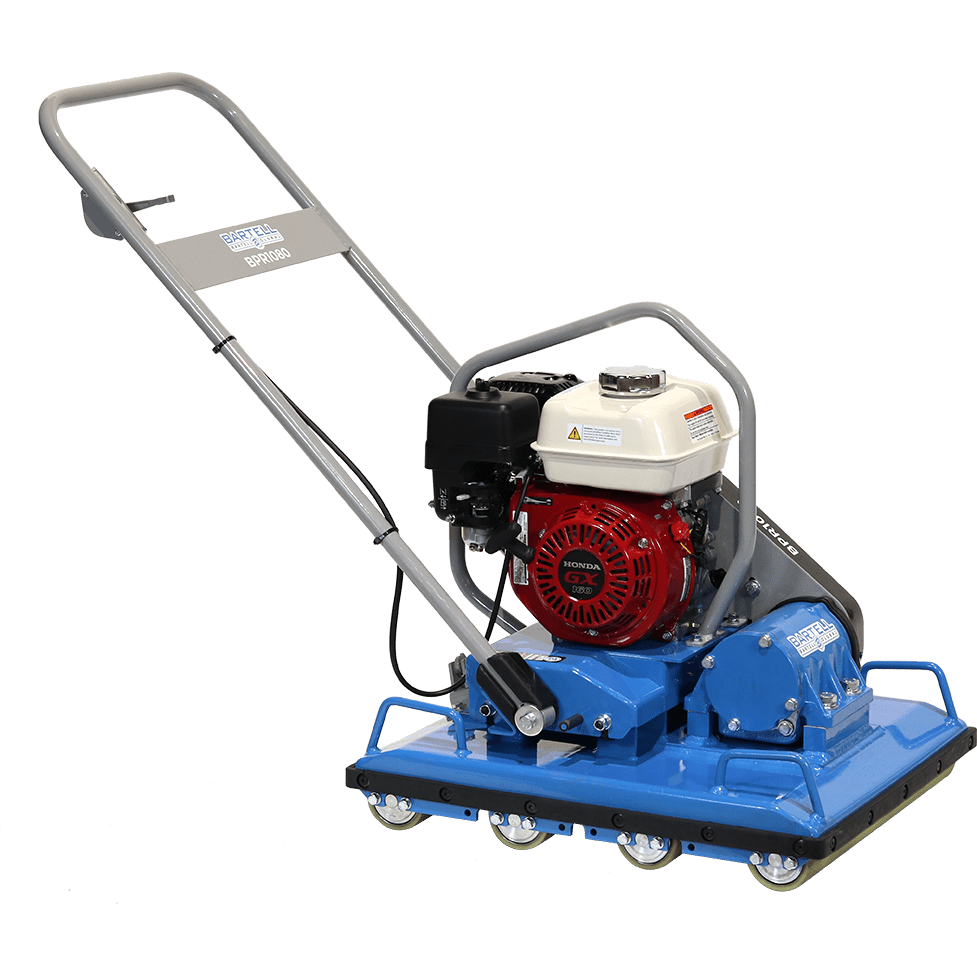

COMPACTION BPR1080

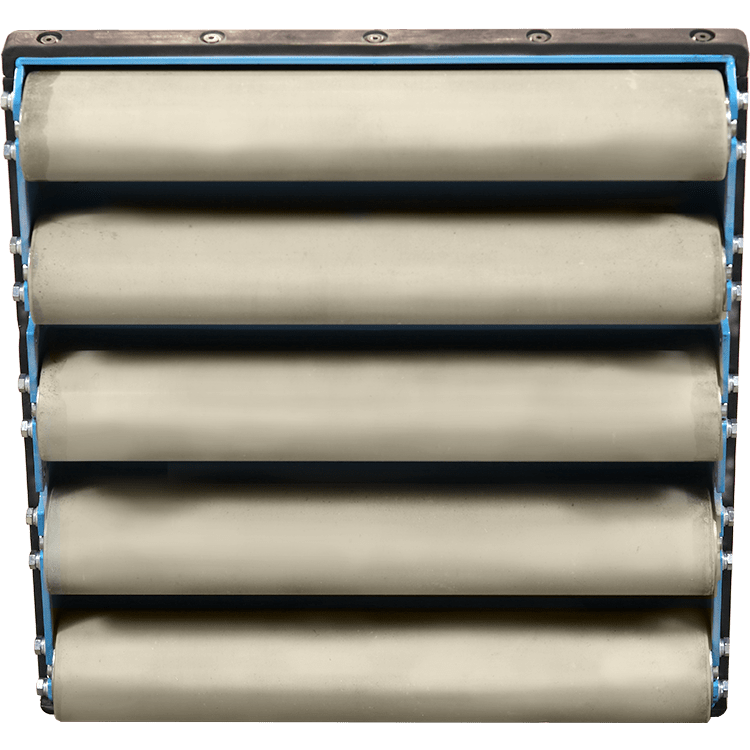

The BPR1080 Paving Roller is designed for use with a variety of pavers and slabs, helping efficiently work polymeric sand deep into the joints and down to the bedding layer. Its specially designed rollers move smoothly across different stone and concrete surfaces and thicknesses, providing thorough joint consolidation while minimizing the risk of cracking, chipping, or surface damage commonly associated with traditional compactors.

  • Available with four or five rollers to suit different applications
  • Adjustable handle provides improved operator comfort and control
  • Powered by a reliable Honda GX160 engine
  • Built-in handholds make loading and unloading easy for one person
  • Protective bar helps prevent equipment and surface damage while providing a balanced lifting point.



Specifications

Engine Honda GX160, 4.8hp (3.6kW)
Number of Rollers FOUR FIVE
Weight 243 lbs (110kg) 258 lbs (117kg)
Compaction Force 2381 lbf / 10.5 kN / 1080 kgf 2381 lbf / 10.5 kN / 1080 kgf
Vibration Frequency 93Hz / 5600 RPM 93Hz / 5600 RPM
Length 48" (1219mm) 48" (1219mm)
Width 21.5" (546mm) 21.5" (546mm)
Height 26" (660mm) 26" (660mm)



Weight 1 kg
Engine

Briggs & Stratton XR950, Honda GX160

Number of Rollers

4 Rollers, 5 Rollers



Downloads

Product Brochure

Spec Sheet

User Manual

Parts Book



Our Paving Roller is designed to work with all pavers and slabs to effectively work your polymeric sand material into the joints — right down to the bedding layer! The rollers are engineered to gently roll over a wide range of stone and concrete textures and thicknesses to provide effective joint consolidation without the risk of cracking, chipping or damaging, which can happen when using traditional compactors.

  • Equipped with your choice of four or five rollers
  • Adjustable handle for operator comfort and safety
  • Powered by Honda GX160 engine
  • Loading and unloading is a one-person job thanks to built-in hand-holds
  • Protective bar helps prevent damage and provides a well-balance lifting point



Specifications

Engine Honda GX160, 4.8hp (3.6kW)
Number of Rollers FOUR FIVE
Weight 243 lbs (110kg) 258 lbs (117kg)
Compaction Force 2381 lbf / 10.5 kN / 1080 kgf 2381 lbf / 10.5 kN / 1080 kgf
Vibration Frequency 93Hz / 5600 RPM 93Hz / 5600 RPM
Length 48" (1219mm) 48" (1219mm)
Width 21.5" (546mm) 21.5" (546mm)
Height 26" (660mm) 26" (660mm)



Weight 1 kg
Engine

Briggs & Stratton XR950, Honda GX160

Number of Rollers

4 Rollers, 5 Rollers
