Features Of The BR2750


FEATURES

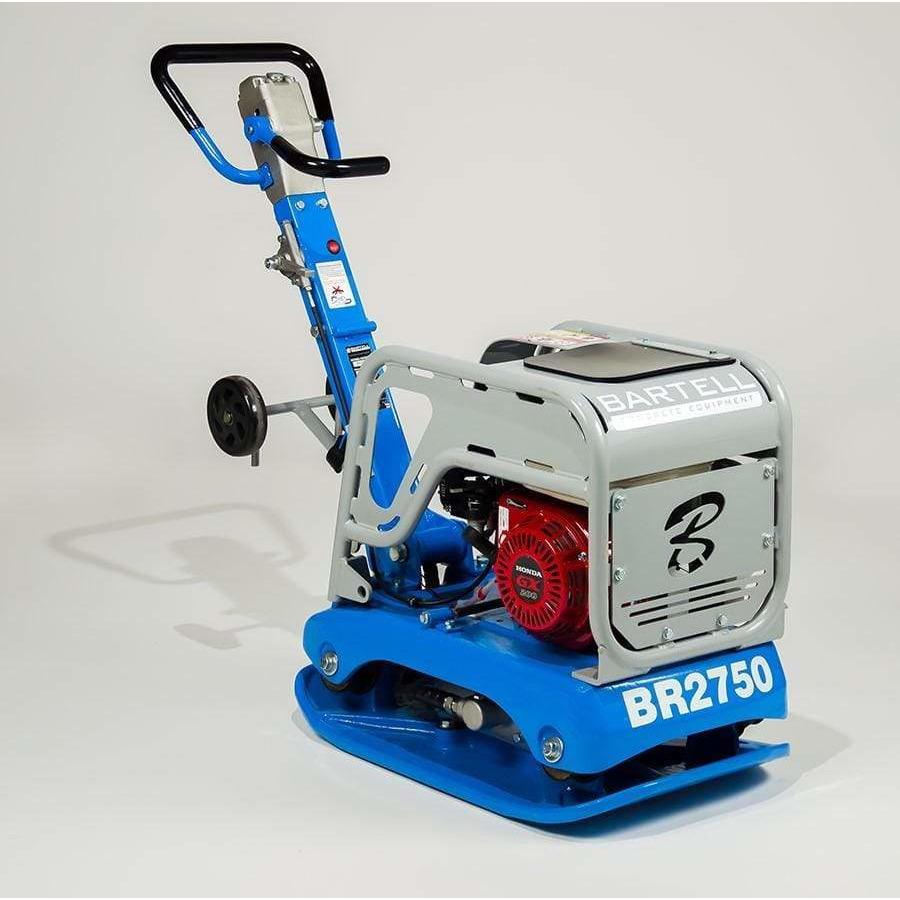

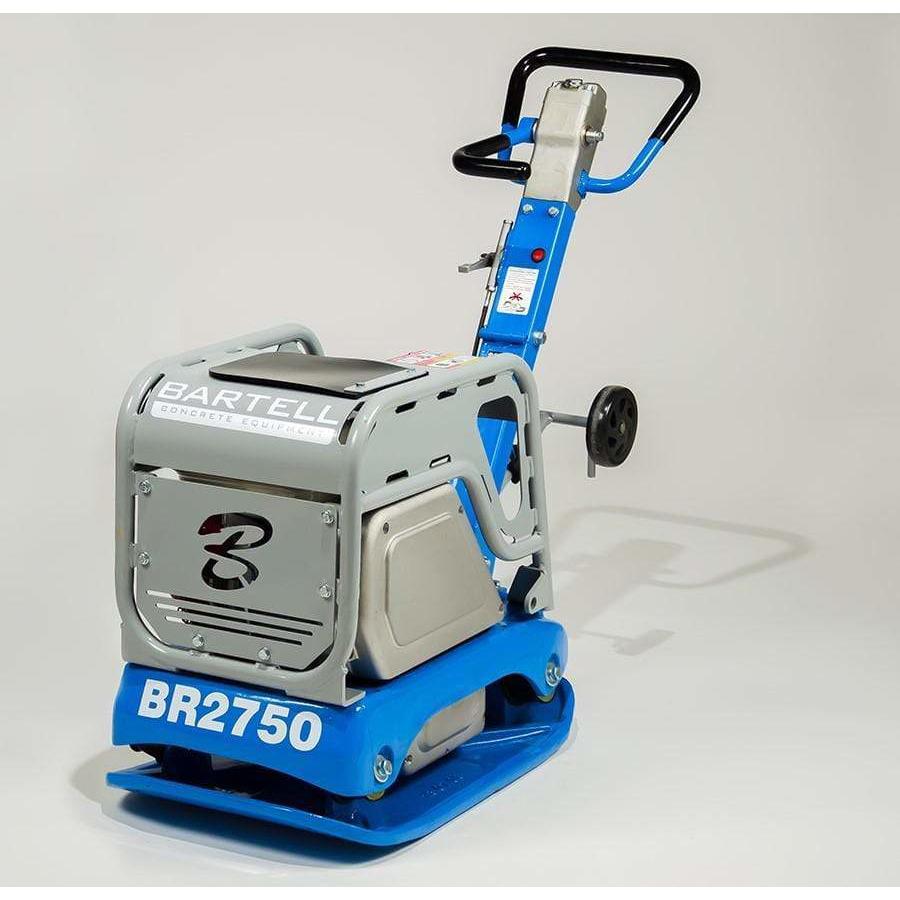

The Bartell BR2750 Reversible Compactor is designed for a wide range of compaction applications, offering excellent versatility and maneuverability in a compact package. Built with durable, high-quality components, it is engineered to handle demanding jobsite conditions and deliver reliable performance.

  • Hydraulic reversing system provides smooth maneuverability, allowing forward, reverse, and stationary compaction.
  • Cast aluminum throttle lever delivers enhanced strength, durability, and professional-grade operation.

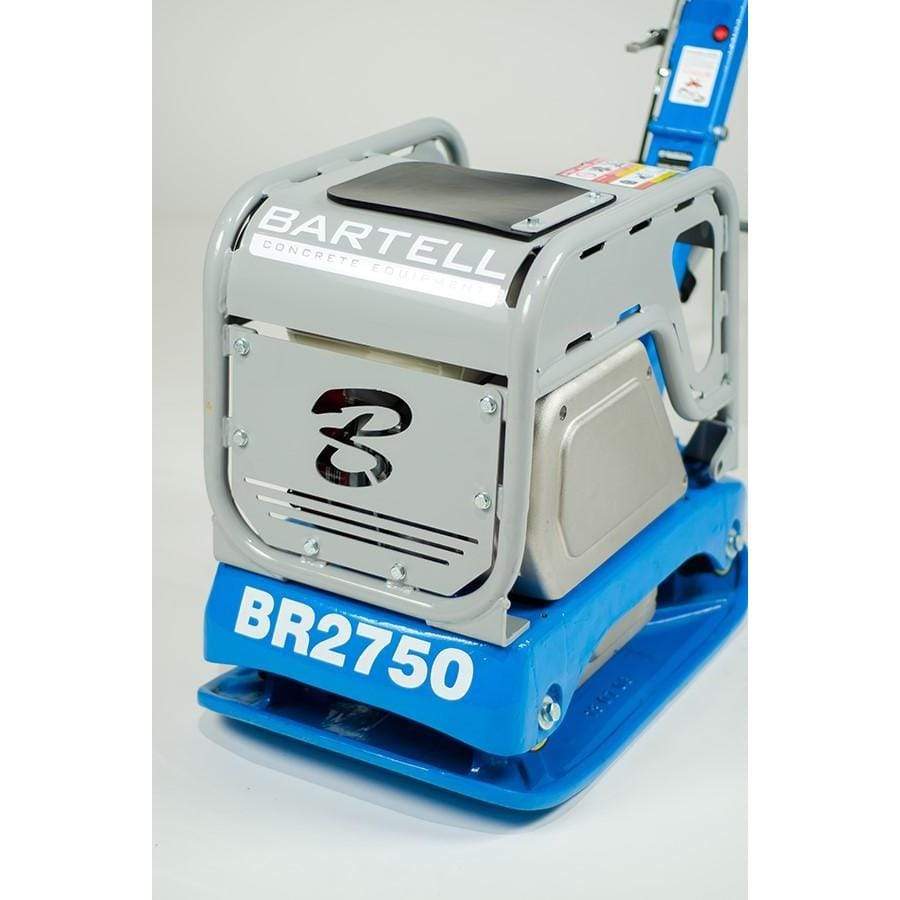

  • Enclosed frame design offers improved protection for the engine and guide handle components.
  • Cast aluminum belt cover helps protect the drive system while extending clutch and engine service life.
  • Ductile iron base plate provides superior strength and durability for demanding compaction applications.
  • Optional extension plates and urethane mats are available for added versatility and application-specific performance.

Specifications

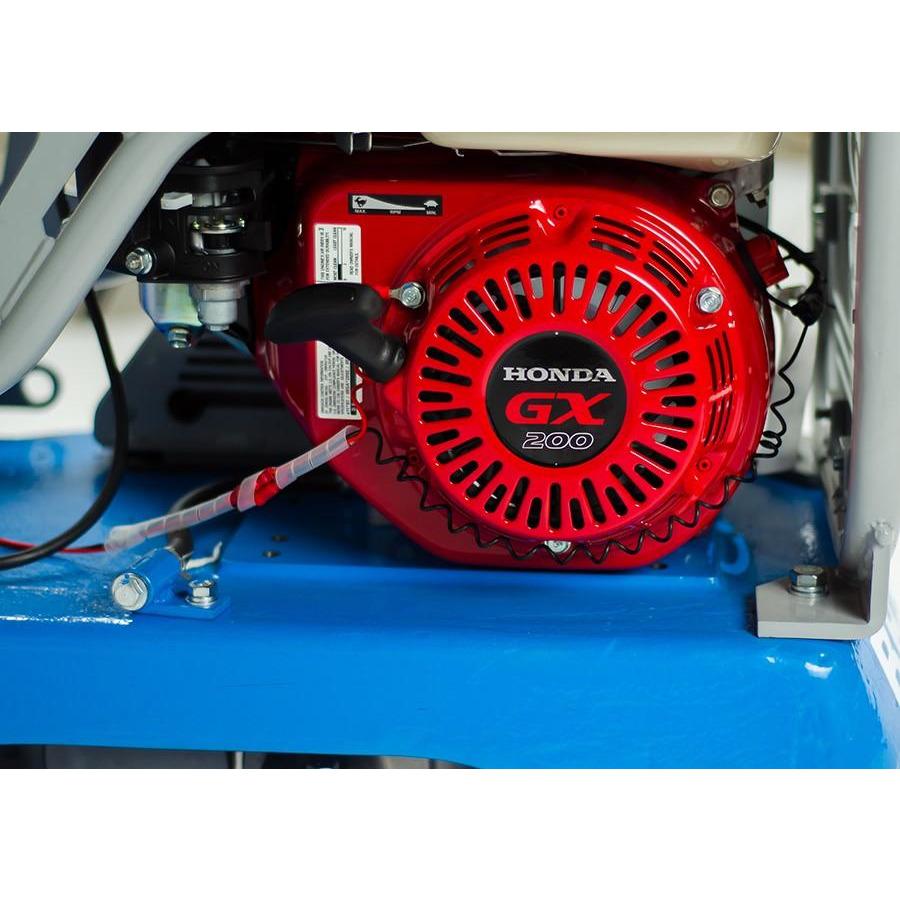

Engine: Honda
Spec: GX200
Power Output Hp (Kw): 5.5(4.1)
Width, in. (mm): 17” (430)
Height, in. (mm): 36” (920)
Length, in. (mm): 45” (1130)
Weight, lbs (kg): 353 (160)
Compaction Force: 6070 lbf, 27 kN, 2753 kgf
Max Travel Speed: 82 ft/min, 25 m/min

Manuals

Spec Sheet
