Bartell Global Forward Plate Compactor, 20X21, GX160 Honda, 1570KG Force - BCF1570


FEATURES

The BCF1570 Forward Plate Compactor is one of Bartell’s most popular compactors, combining versatility, durability, and reliable performance. Designed for a wide range of soil and aggregate compaction applications, the BCF1570 features a built-in water tank, making it suitable for use on asphalt as well.

Bartell forward plate compactors are engineered to deliver powerful compaction while remaining easy to operate and maintain.

  • Convenient Throttle Controls – Strategically positioned throttle controls allow operators to control the machine without having to bend over or run alongside the unit.
  • Retractable Wheel Kit – Easily transport the compactor around the job site. Simply lower the wheels to move the machine and fold them back up when they are not needed.
  • Heavy-Duty Lifting Bale – Each plate compactor includes a durable lifting bale, making it easier to load, unload, and transport the equipment, especially when wheels aren't practical.
  • Compact Edge Design – The straight-edge plate allows operators to compact material right up against walls, curbs, and other edges for more complete coverage.
  • Sealed Belt Guard – The sealed belt guard helps prevent rocks and debris from reaching the drive belt while maintaining proper cooling for dependable operation.

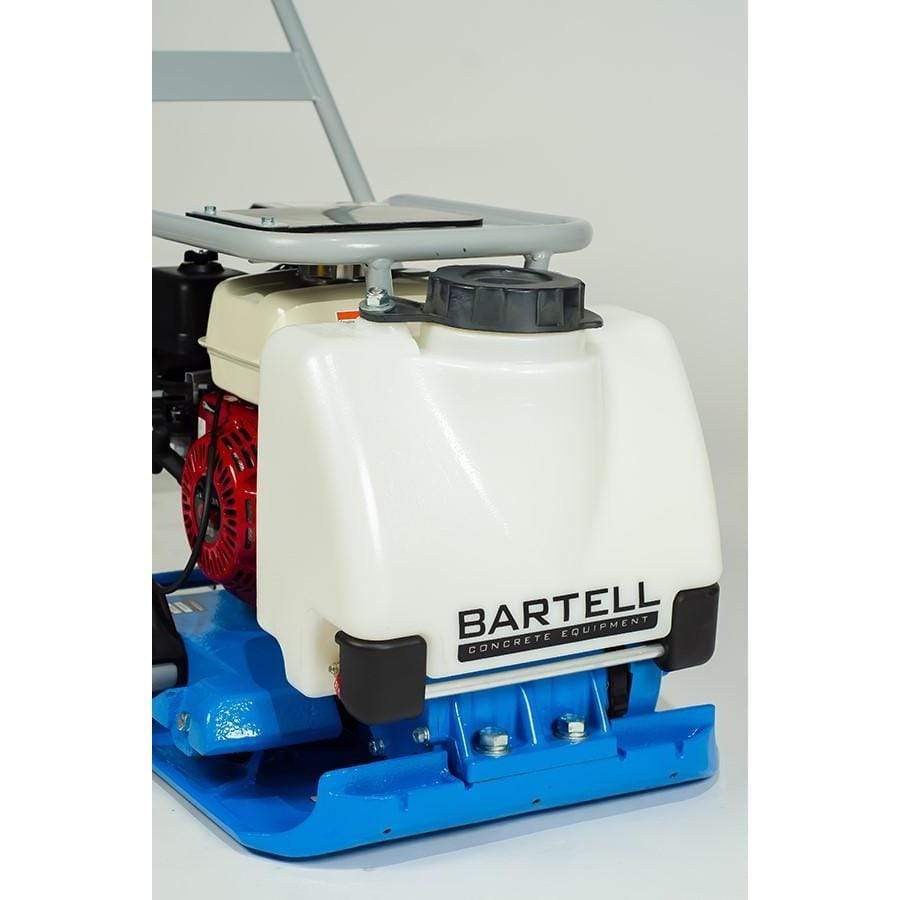

  • Built-In Water Tank – The BCF1570 comes standard with an integrated water tank, allowing it to be used effectively for asphalt compaction applications.
Specifications

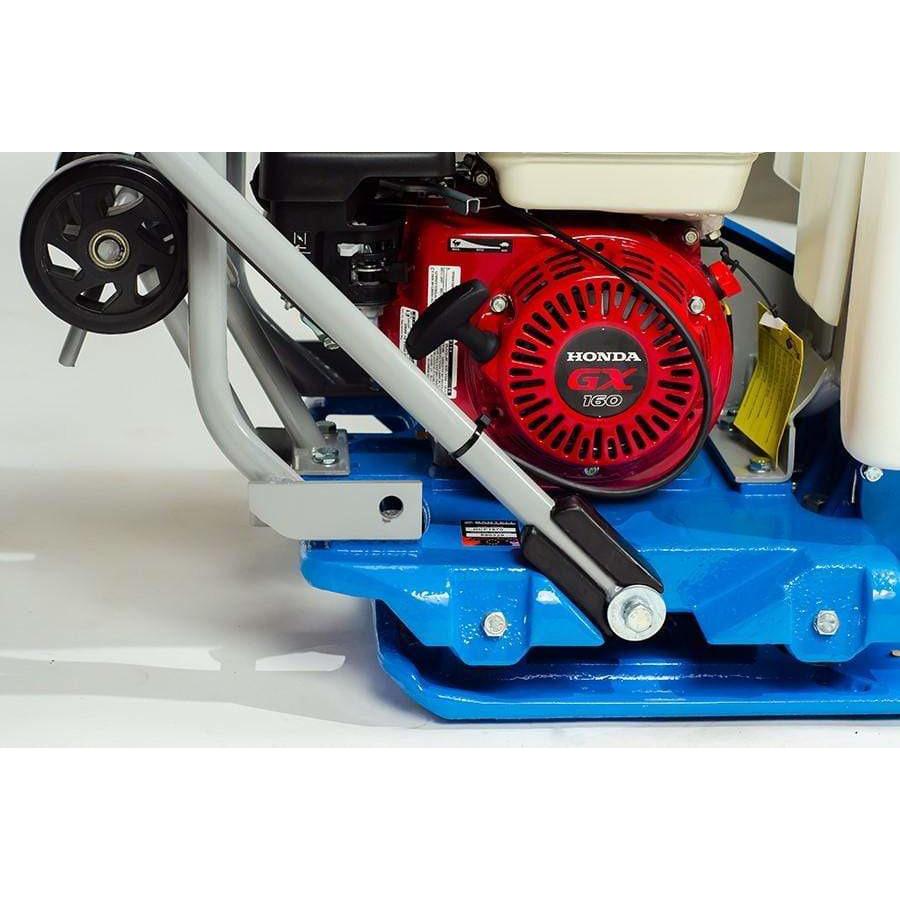

Engine: Honda GX160
Performance HP (kW): 4.8 (3.6)
Length: 44″ (1100mm)
Width: 20″ (500mm)
Height: 33″ (825mm)
Plate Size: 20″ x 21″ (500 x 525m)
Centrifugal Force: 3461 lbf, 15 kN, 1570 kgf
Travel Speed: 60-82 ft/min, 20-25 m/min
