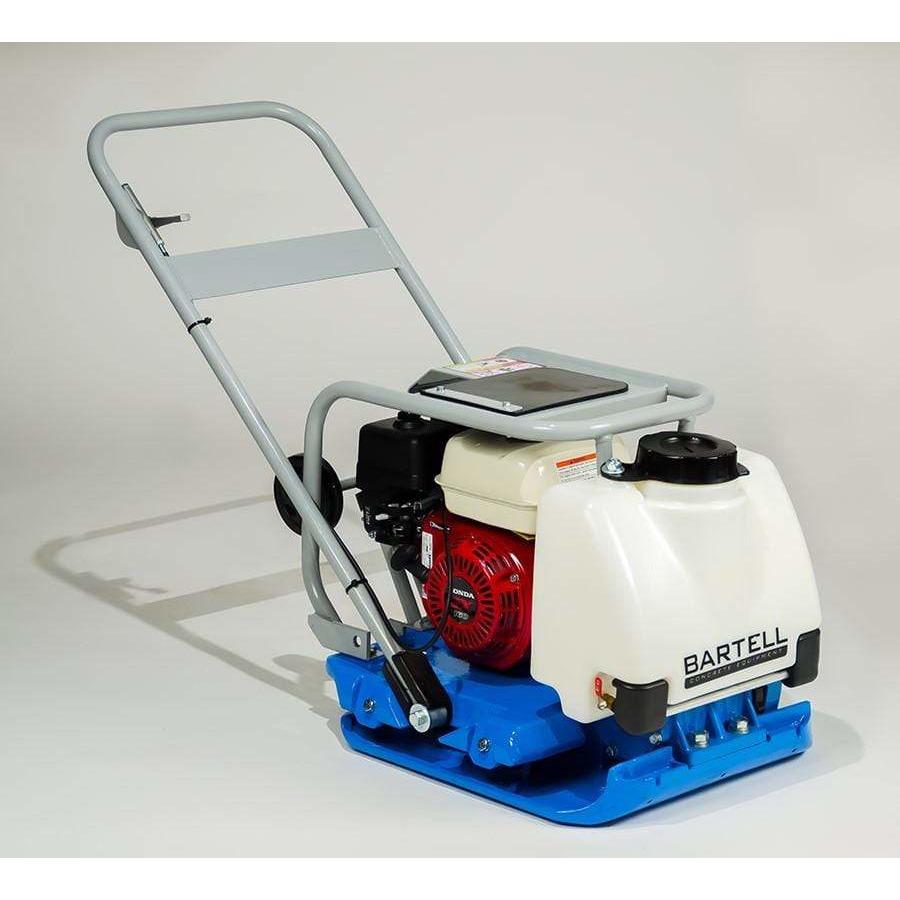

Bartell Global Forward Plate Compactor, 20X21, Honda GX160, 2150KG Force - BCF2150


FEATURES

The Bartell BCF2150 is one of Bartell’s most powerful forward plate compactors, designed to handle a wide range of demanding compaction applications. Its high compaction force makes it particularly well-suited for paver installations. Since many paver applications require base materials to be compacted with more than 4,000 lbs. of force, the BCF2150 can be used effectively for both compacting the base material and setting the pavers themselves.

Bartell forward plate compactors are engineered for high performance, durability, ease of use, and low maintenance.

Key Features

  • Convenient Throttle Controls – Ergonomically positioned throttle controls allow operators to control and stop the machine without having to bend down or run alongside the equipment.
  • Retractable Wheel Kit – Easily transport the compactor around the job site. Simply lower the wheels to move the machine and retract them when they are no longer needed.
  • Heavy-Duty Lifting Bale – Every plate compactor includes a durable lifting bale, making it easier to transport the machine to remote or difficult-to-access work areas where wheel kits may not be practical.

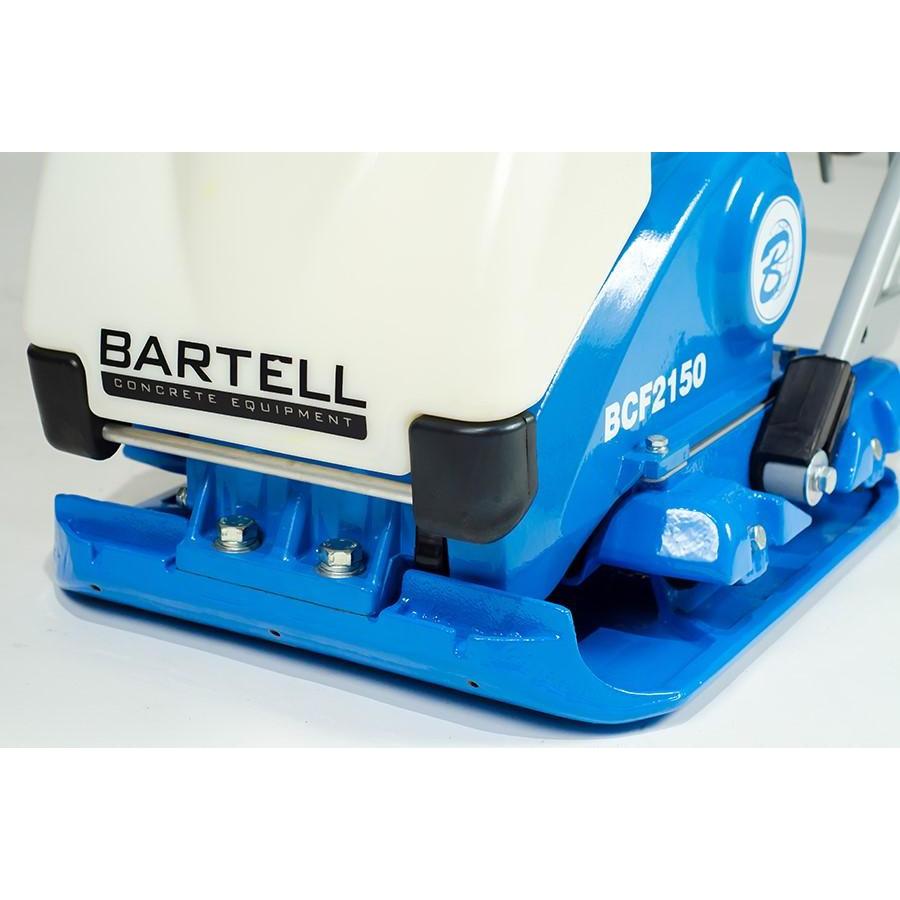

  • Straight-Edge Plate Design – Compact directly along edges and other tight areas with the straight-edge plate design, allowing you to work close to walls, curbs, and other boundaries.
  • Sealed Belt Guards – The sealed belt guard helps prevent rocks and debris from entering the belt area, reducing the risk of belt damage while maintaining proper cooling for reliable operation.
Specifications

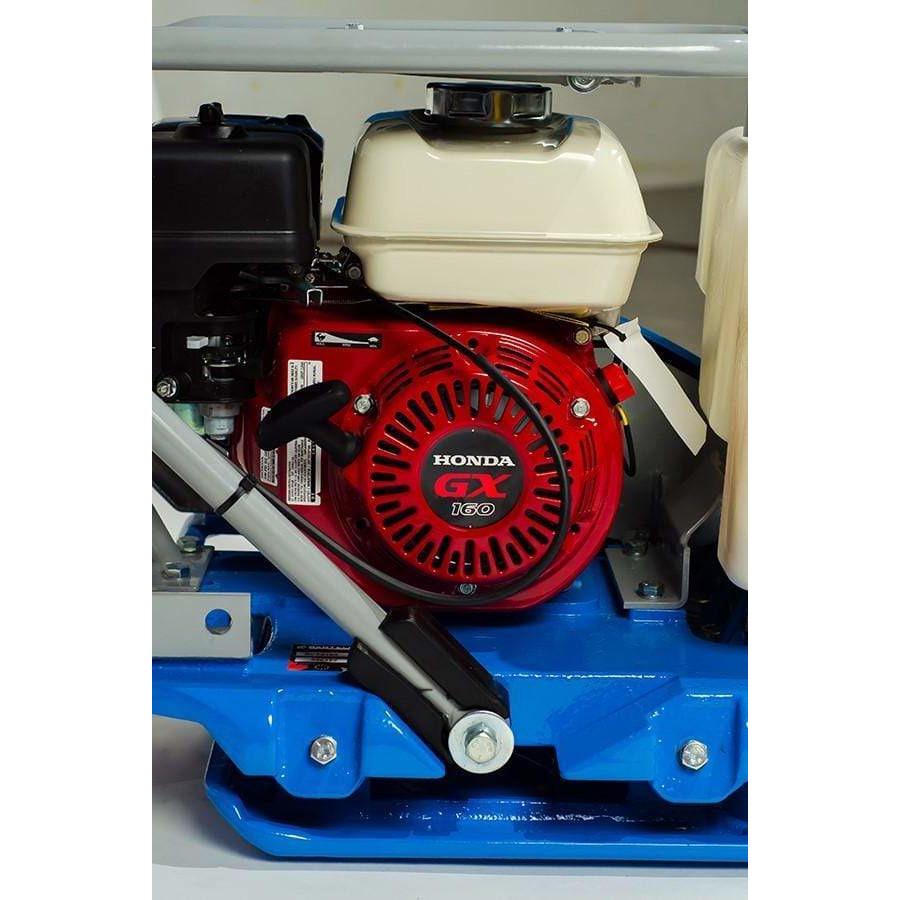

Engine: Honda GX160
Performance HP (kW): 4.8 (3.6)
Length: 44″ (1100mm)
Width: 20″ (500mm)
Height: 33″ (825mm)
Plate Size: 20″ x 21″ (500 x 525m)
Centrifugal Force: 4740 lbf, 21 kN, 2150 kgf
Travel Speed: 66-85 ft/min, 20-25 m/min
