Product Description

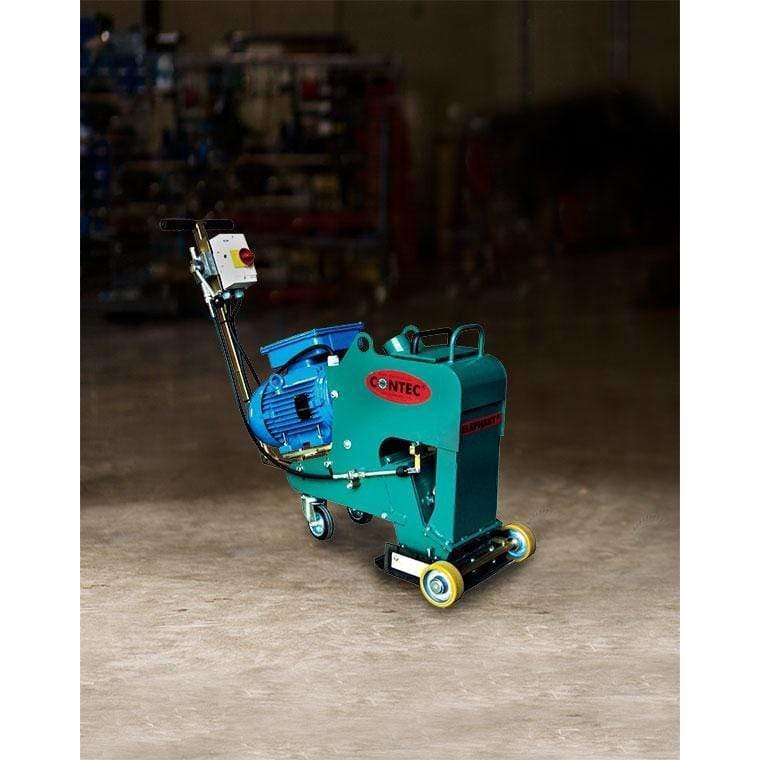

Bartell Global Shot Blaster, 5HP, 220V, Single Phase - ELEPHANT

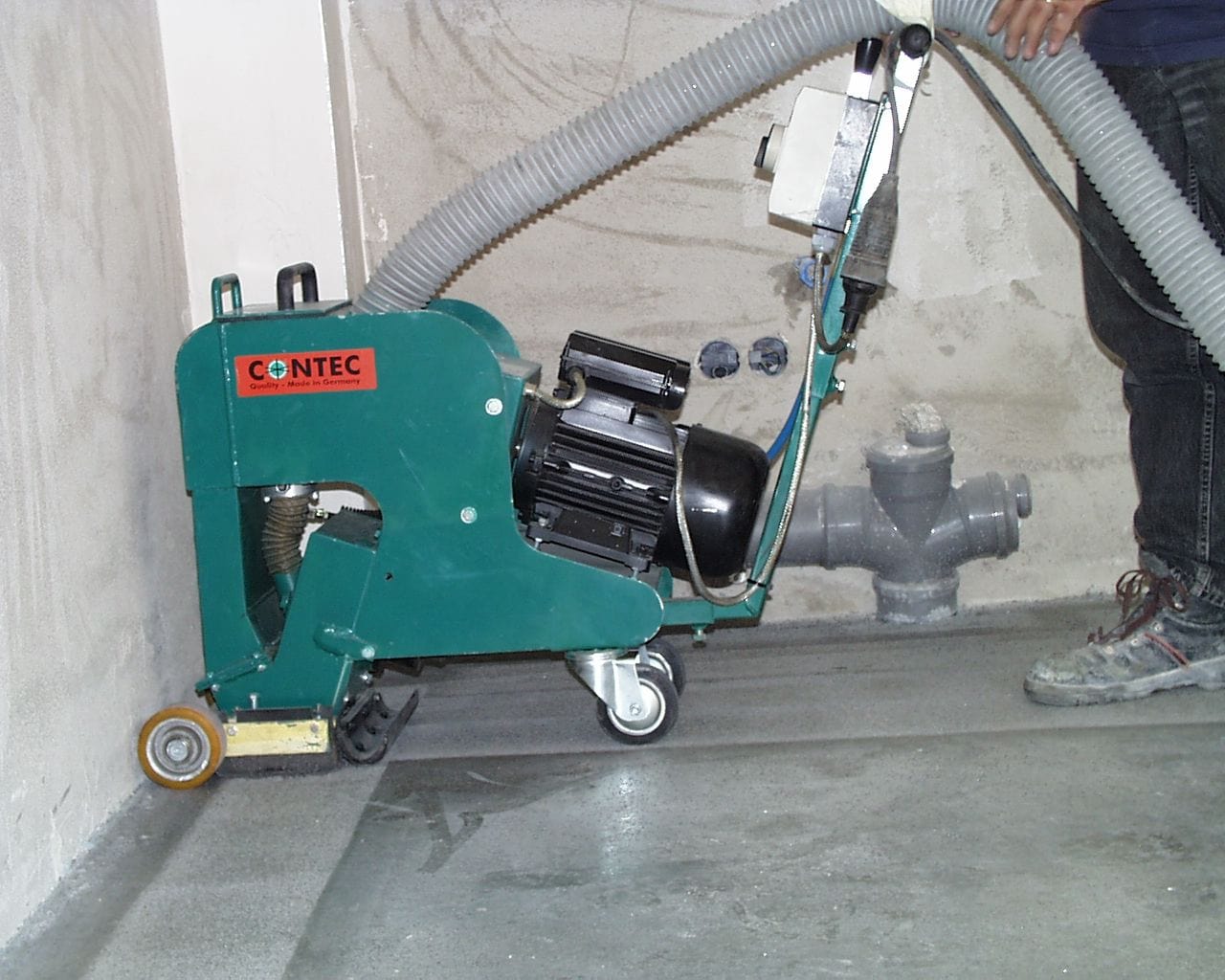

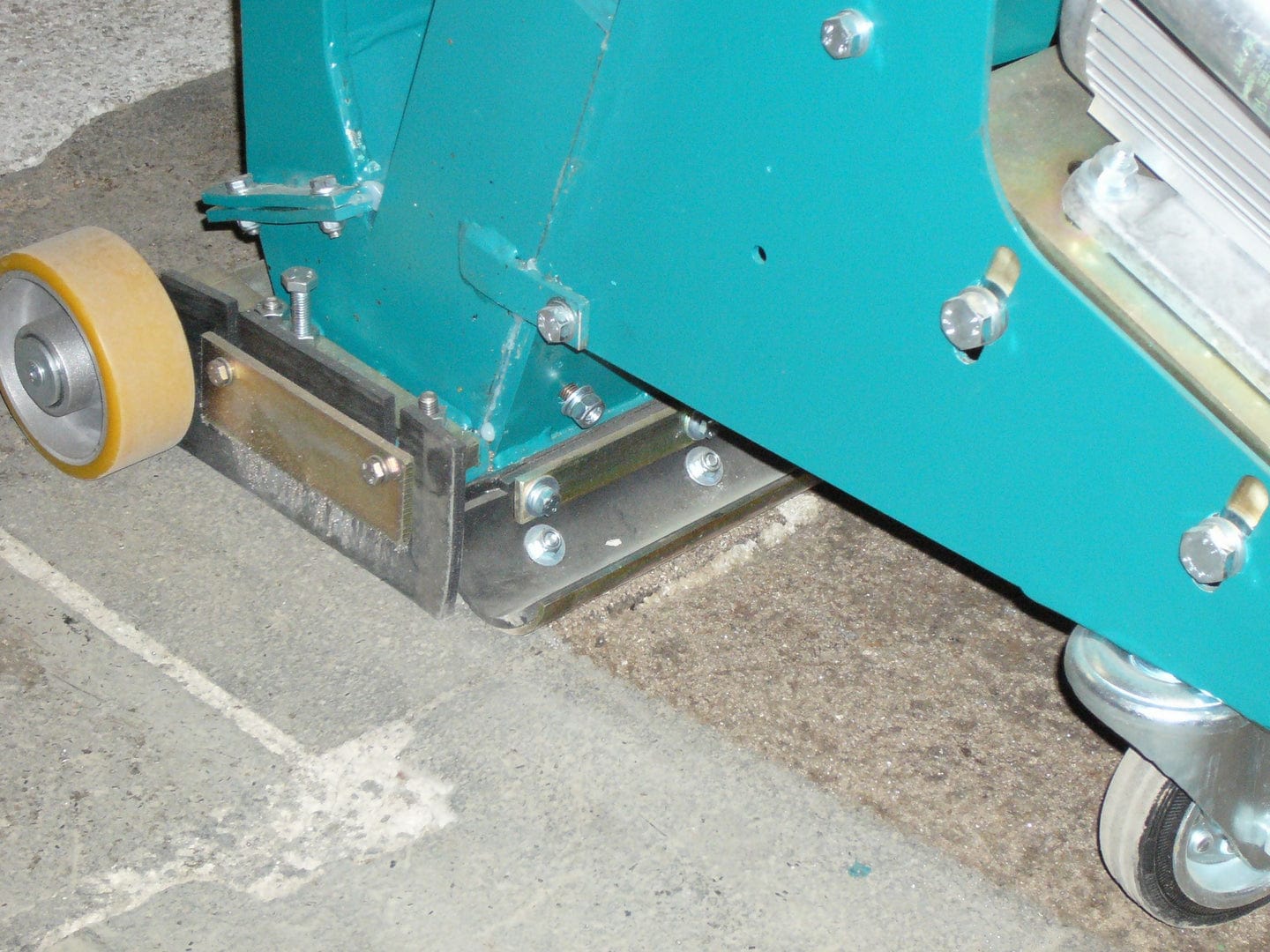

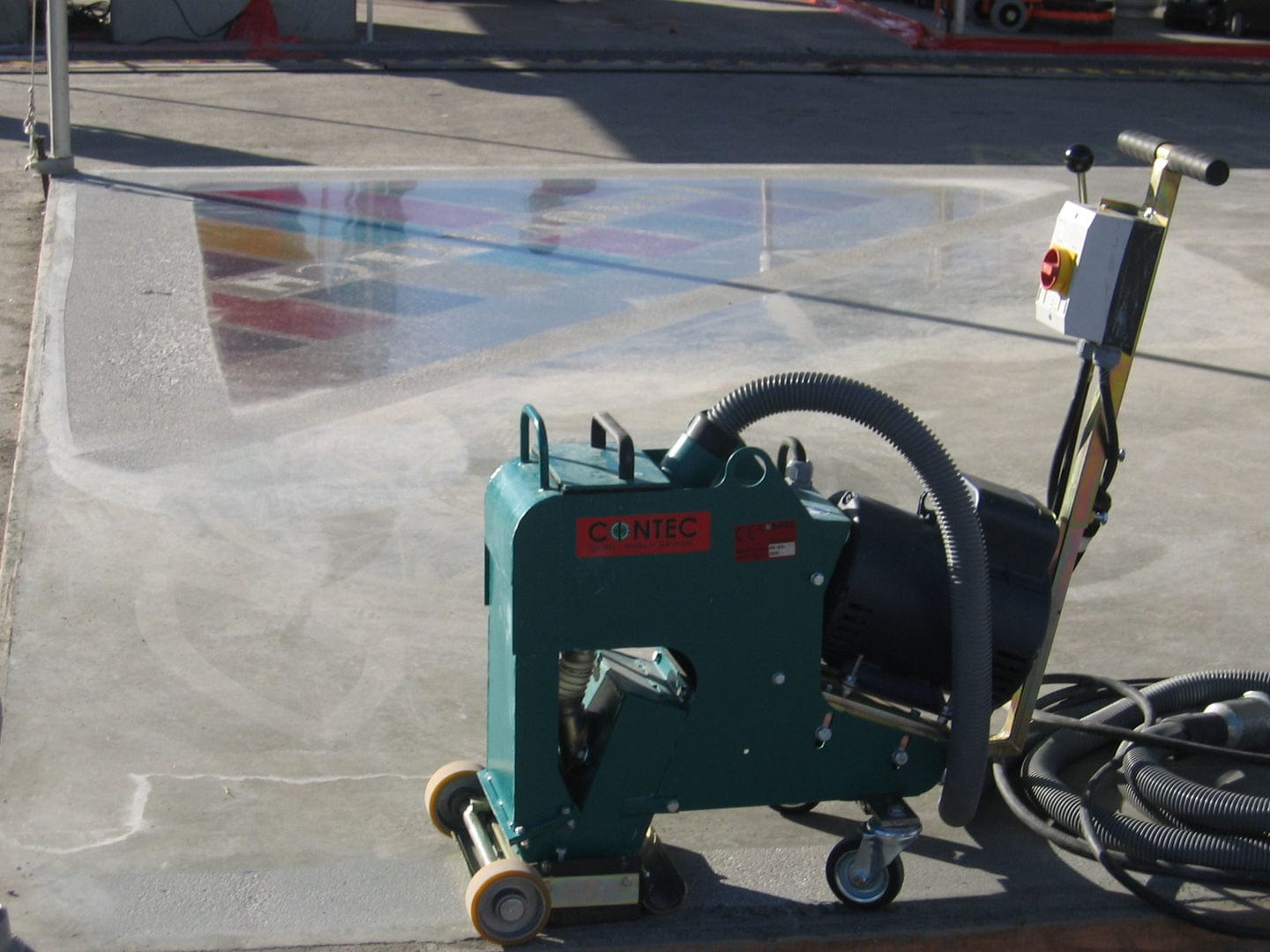

The compact, lightweight ELEPHANT shot blaster is the ultimate solution for dust-free surface preparation in tight, restricted spaces. Engineered for safe and simple operation, this portable unit makes smaller contracting jobs highly economical and efficient. Its specialized close-to-edge design allows you to blast almost flush against walls, drastically minimizing tedious handwork and manual edging, especially in tight corners.



Features

The ELEPHANT can be supplied to operate from 230 V single phase and 400 V three phase power supplies utilizing standard sockets.

The ELEPHANT is designed to complement the established MODUL 200 and MODUL 350 and is suitable for domestic, commercial and industrial flooring contracts.

The ELEPHANT is also available with Drive Unit.

  • Light weight - easy transportation (even in a small hatchback)
  • Ideal for domestic / commercial sites with only 230 V supply e.g. garages, restaurants and offices
  • Low overall height for work under racking, scaffolding, and benches
  • Dustless operation with a standard industrial vaccuum

Specifications



 ELEPHANT-230

 ELEPHANT-400

Working Width

200 mm

 200 mm

Voltage

230 V

 400 V

Frequency

50 Hz

 50 Hz

Phase

1

 3

Current Consumption

12 A

 5.81 A

Motor Rating

2 kW

 3 kW

Motorn nominal Current

12 A

 5.18 A

Motor Rotation Speed

2640 rpm

 2890 rpm

Weight

84 kg

 92 kg

Height

90 cm

 90 cm

Length

115 cm

 115 cm

Width

40 cm

 40 cm

Recommended Dust Collector

CDM 3000

 CDM 3000 / CDM 3000-P

Dust Port Diameter

70 mm

 70 mm

Accessories

Magnetic Brush

The Magnetic Brush collects any shot which the machine may lose on the floor. The shot can then be used again.  The Magnetic Brush is available in two Widths, 50 and 70 cm.

Tools

Blast Wheel (small)

The Blast Wheel in combination with the Shot Cage are the main parts of the shotblaster.

Shot Cage (small)

By turning the Shot Cage the blast pattern can be adjusted

Shot

Different floors need different sizes of shot.

The Technical Data spreadsheet below gives further information about the most common sizes of shot and the applications they are best suited for.

Downloads

Linesheet
Specification Sheet
User Manual & Parts Book
