Product Description

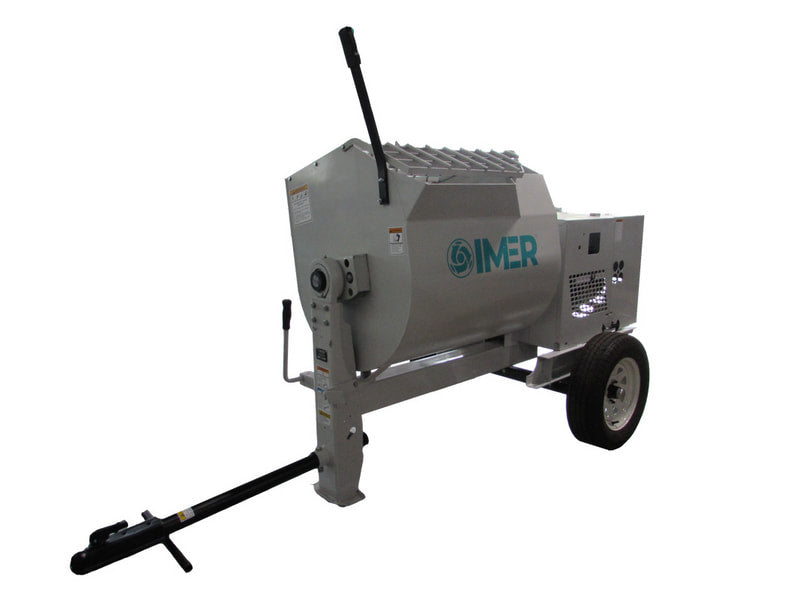

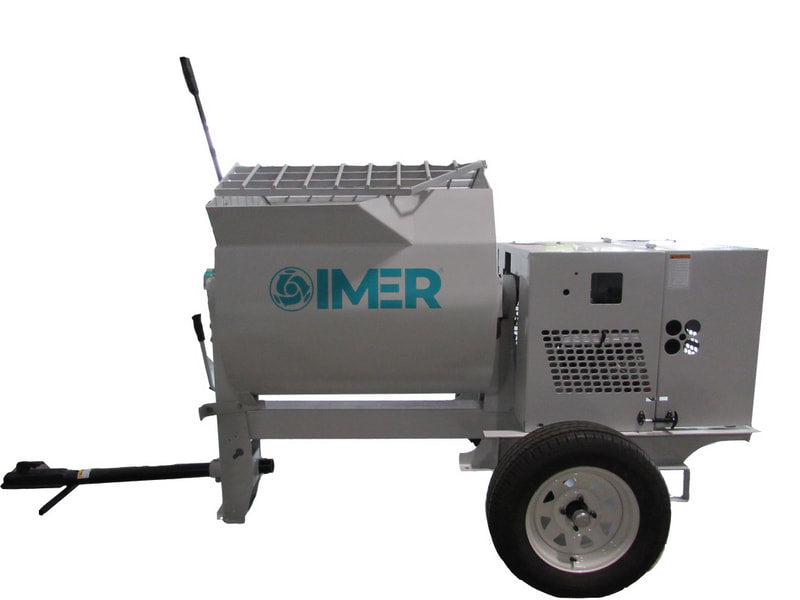

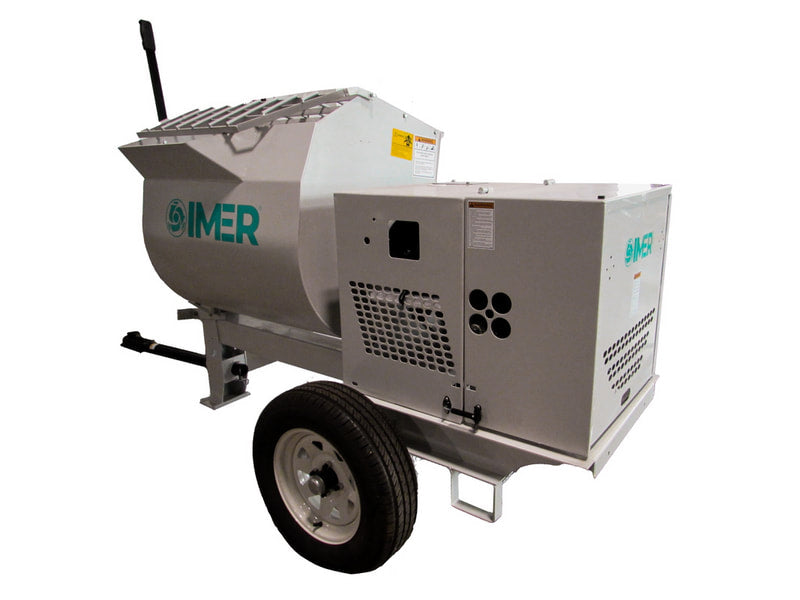

The IMER HSM 12 is a towable horizontal shaft mortar mixer designed for efficient mixing of mortar, stucco, and grout. Its gearbox is built to transfer power efficiently to the mixing paddles, helping produce consistent material for demanding job site use.

The HSM 12 is available with a 13 HP Honda GX-390 gas engine or a 240V 5 HP electric motor. It includes a tow bar and aggressive paddles designed to mix material quickly and thoroughly.

Key Features

  • Towable horizontal shaft mortar mixer
  • 12 cu ft batch output
  • 3.5 - 4 bag capacity
  • 13 HP Honda GX-390 gas engine option
  • 240V 5 HP electric motor option
  • Gearbox designed for efficient power transfer
  • Aggressive paddles for fast, complete mixing
  • Tow bar included
  • B78 - 13 in tire size
  • 58 in charging height
  • 1,200 lb weight
Technical Specifications
Model # 1130121
Model # Electric / Steel (Poly) 1130122
Bag Capacity 3.5 - 4
Batch Output 12 cu ft
Gas Engine 13 HP Honda GX-390
Electric Motor 240V 5 HP
Tire Size B78 - 13 in
Charging Height 58 in
Weight 1,200 lbs
Width 52 1/2 in
Length (with tow bar) 84 (104 1/2) in
Height 56 1/2 in
Standard Equipment
  • 13 HP Honda GX 390 or 240V 5 HP Electric Motor
  • Tow Bar
  • Aggressive paddles to mix fast and complete


Downloads

Product Sheet
