Product Description

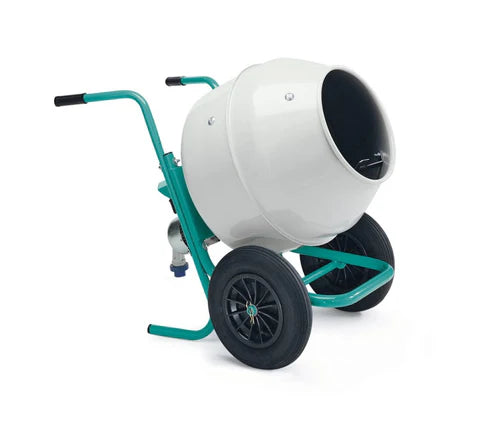

The IMER Wheelman II 5 CF Portable Steel Drum Multi Mixer is a wheelbarrow-style mixer designed for mixing concrete, mortar, stucco, grout, and floor mud. Its removable drum and frame make it easier to load, transport, clean, and dump material directly at the work area.

This mixer features a 1/2 HP 110V industrial grade motor with direct gear drive, a durable steel drum, aggressive mixing paddles, and 14-inch pneumatic wheels for jobsite mobility. It is built for small to medium mixing jobs where portability and reliable mixing performance are needed.

Key Features

  • 5 cubic feet (142 liters) drum capacity: Mixes up to 3 standard 80 lb. bags or 5 standard 50 lb. bags of dry mix per batch, ideal for small to medium-sized projects.
  • Durable steel drum: Built to withstand the demanding conditions of construction sites and resist dents and rust.
  • 1/2 HP electric motor (110v, 6 amp): Provides ample power for efficient mixing of various materials.
  • Direct drive gearbox: Requires no belts or adjustments, minimizing maintenance needs.
  • Removable drum and frame: Allows for easy loading, transport, and cleaning.
  • 14-inch pneumatic tires: Offer smooth rolling and easy maneuvering on uneven terrain.
  • Optional 360° swivel stand: Enables convenient and controlled dumping of the mixed material.
  • Powder-coated finish: Protects against rust and corrosion.
  • False bottom: Prevents dry material from sticking to the bottom of the drum, reducing waste and promoting thorough mixing.

Benefits

  • Versatility: Handles a wide range of materials, including concrete, mortar, stucco, grout, and floor mud.
  • Efficient Mixing: Powerful motor and direct drive gearbox ensure thorough and consistent mixing.
  • Portable and Easy to Use: The wheelbarrow design, removable drum, and user-friendly controls make it easy to transport, operate, and clean.
  • Durable Construction: Built to last with a steel drum, powder-coated finish, and minimal maintenance requirements.
  • Optional Swivel Stand: Enhances control and ease of use when emptying the mixed material.

Here are some additional points to consider

  • While the mixer is relatively lightweight, the weight can vary depending on the source. Consider its weight and your capabilities when handling it.
  • Ensure compatibility with your local power source and have a suitable extension cord available if needed.
  • Always wear appropriate personal protective equipment (PPE) when operating the mixer, such as gloves, safety glasses, and dust mask.

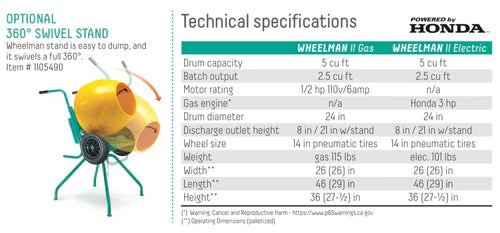

SPECIFICATIONS

Drum Capacity 5 cu ft
Batch Output 2.5 cu ft
Gas Motor (Electric) Honda 3 hp (1/2 hp 120 V / 6amp)
Drum Diameter 24 in
Discharge Outlet Height 8 in (21 in w / stand)
Wheel Size 14 in pneumatic tires
Weight (electric) 115 lbs (101 lbs)
Width (Boxed) 26 in (26 in)
Length (Boxed) 46 in (29 in)
Height (Boxed) 36 in (27.5 in)

STANDARD EQUIPMENT

  • 1/2 hp 110v industrial grade motor with direct gear drive
  • Wheelbarrow pneumatic wheels
  • 5 cu ft poly drum with 3 cu ft output
  • Aggressive paddles to mix fast and complete
