Product Description

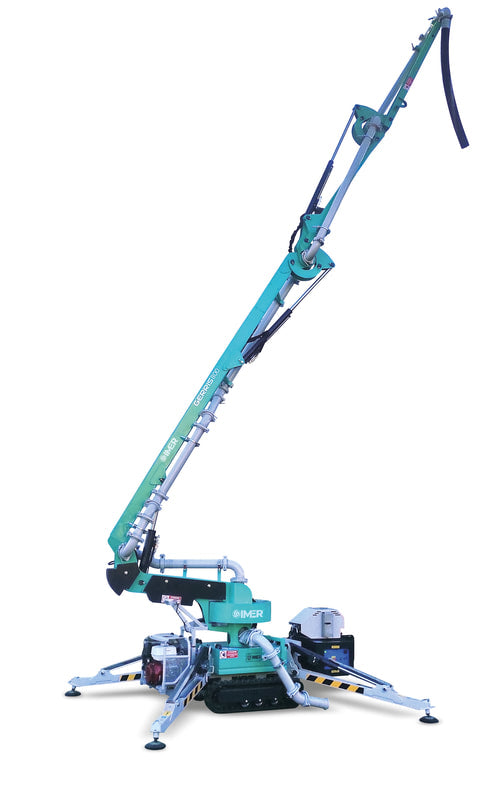

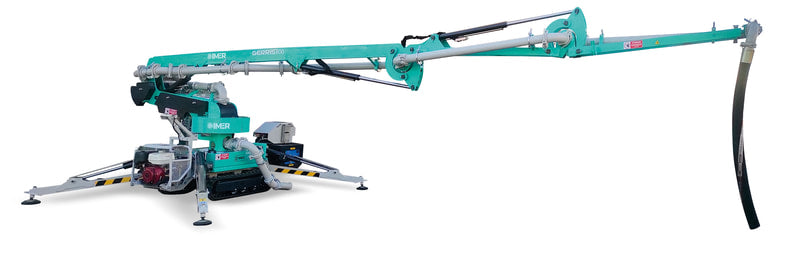

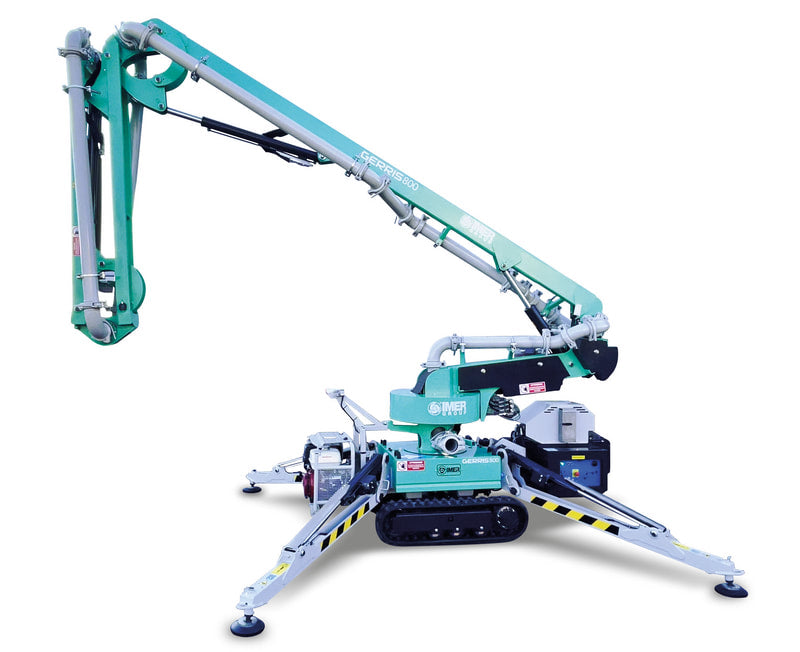

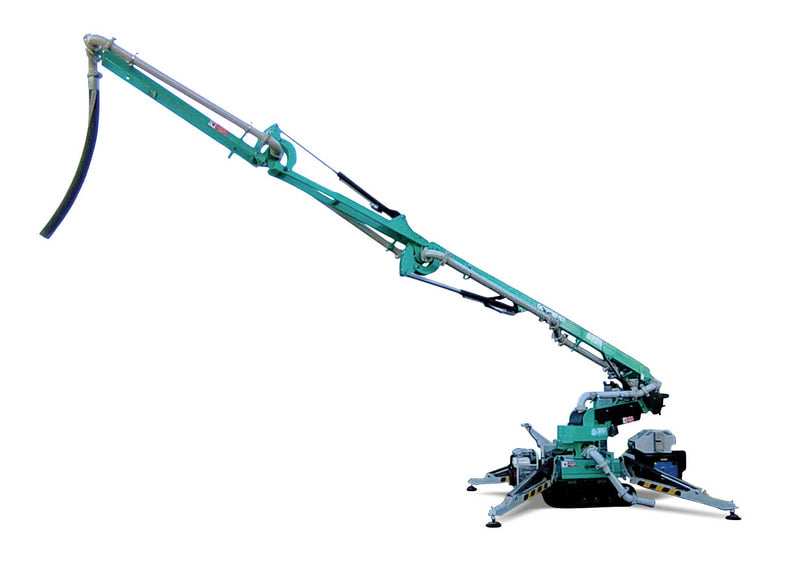

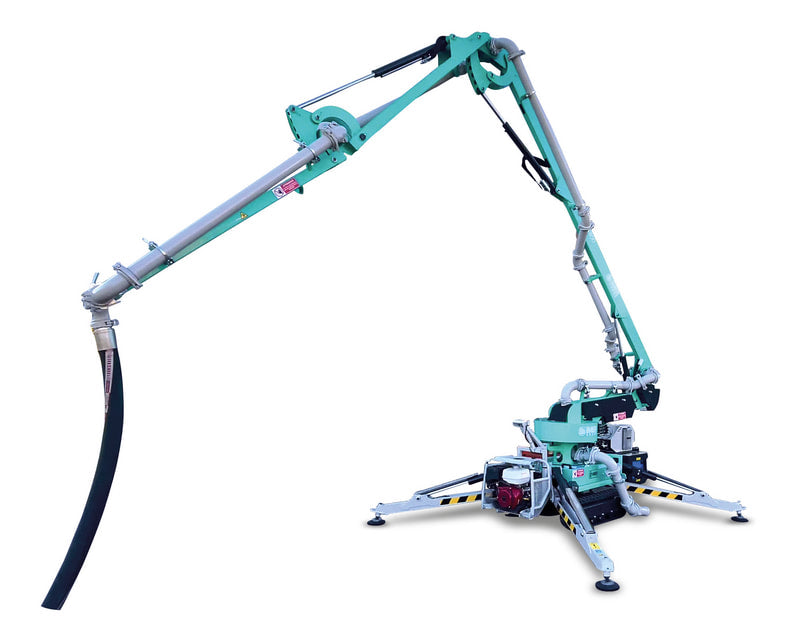

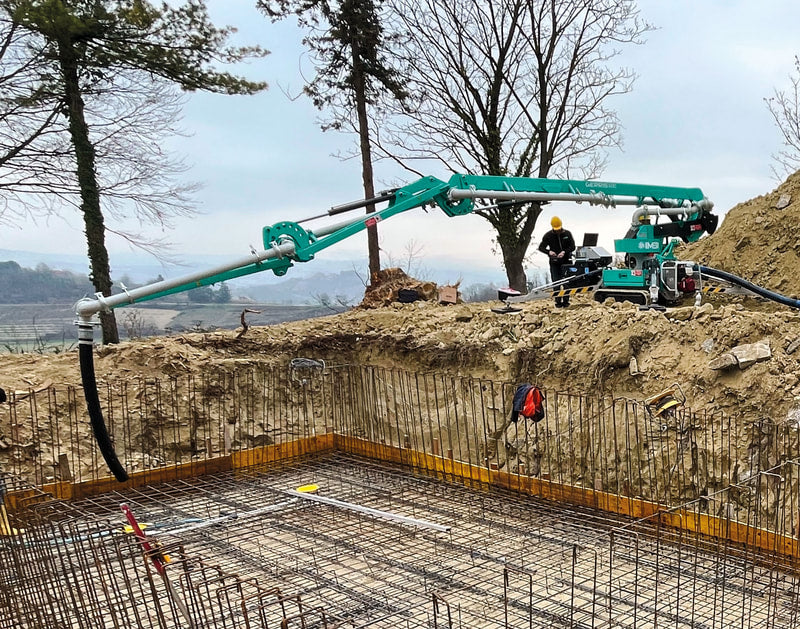

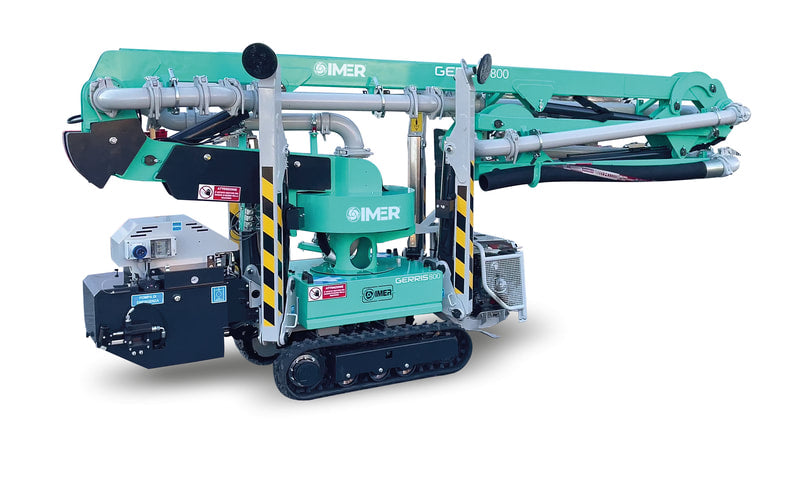

The IMER Gerris 800 is a self-propelled crawler concrete placing boom designed to distribute pumped concrete in tight or difficult-to-reach job site areas. With a compact transport width of 2' 7" and transport length of 16' 1", it can be positioned in narrow spaces while delivering concrete within a reach of up to 26 ft and a height of up to 37 ft.

The Gerris 800 is radio-controlled for simple maneuvering and positioning in the working area. It is suitable for pumped concrete with a maximum aggregate size of 1 inch and can connect directly to a concrete pump with 4" HD fittings. Gas and lithium model options are available.

Key Features

  • Self-propelled crawler concrete placing boom
  • Radio-controlled operation
  • Max height: 37 ft
  • Max reach: 26 ft
  • Max depth: 16.5 ft
  • Maximum aggregate size: 1 in
  • Overall stabilized dimensions: 9' 7" x 10' 1"
  • Max speed: 1.6 mph
  • Gradeability: 25%
  • Turret rotation: 355°

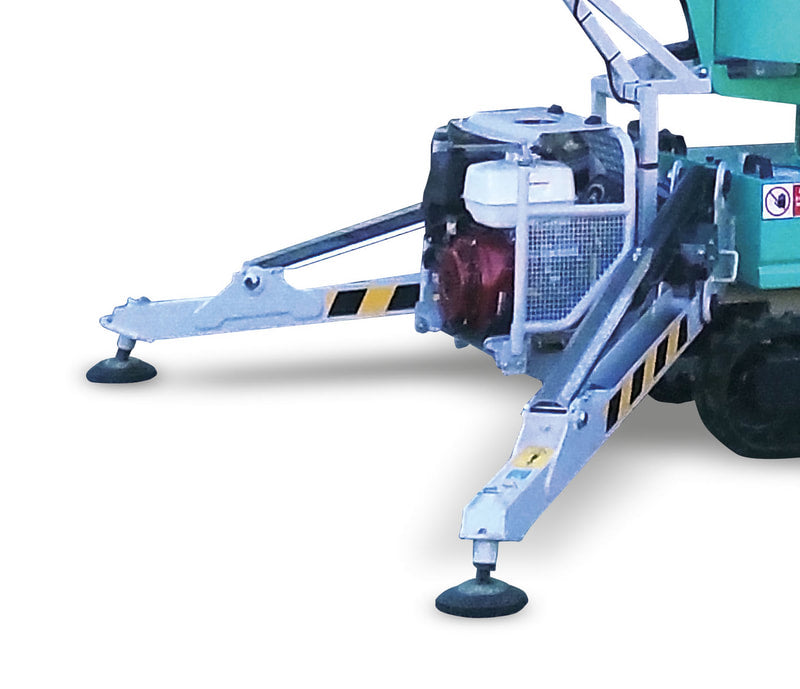

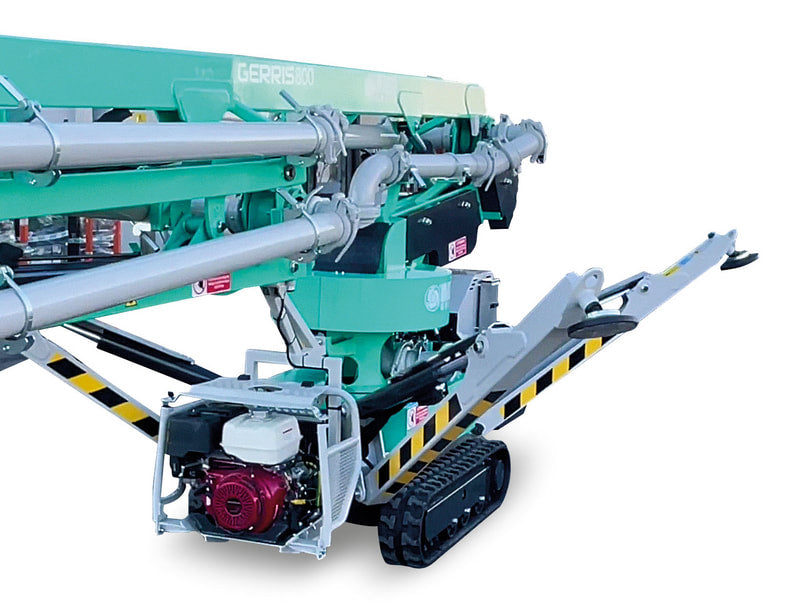

  • Gas engine: 13 HP Honda GX390

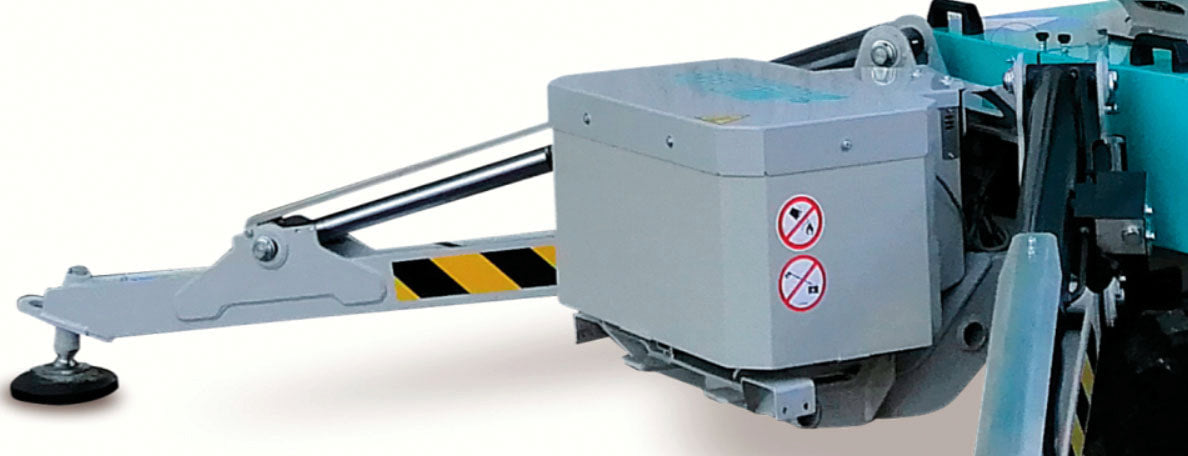

  • Lithium motor option: 5.4 HP 48V AC
  • Gas auxiliary electric motor: 1.5 HP 120V
  • Transport width: 2' 7"
  • Transport length: 16' 1"
  • Transport height: 6' 6"
  • Weight: 5,512 lbs
  • Wireless remote control included
  • Designed for pumped concrete with 4" HD fittings
Technical Specifications
Model # 1128758 (1128786)
Max Height 37 ft
Max Reach 26 ft
Max Depth 16.5 ft
Max Aggregate 1 in
Overall Dimensions - Stabilized 9' 7" x 10' 1"
Max Speed 1.6 mph
Gradeability 25%
Turret Rotation 355°
Gas Engine 13 HP Honda GX390
Lithium Motor 5.4 HP 48V AC
Gas - Aux. Electric Motor 1.5 HP 120V
Transport Width 2' 7"
Transport Length 16' 1"
Transport Height 6' 6"
Weight 5,512 lbs
Standard Equipment
  • Wireless Remote Control

Downloads

Product Sheet
