Product Description

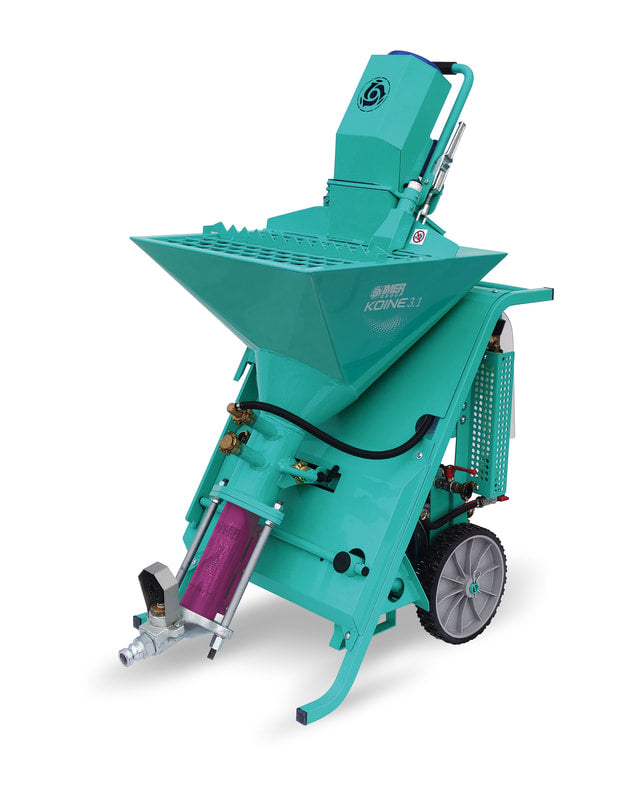

The IMER Koine 3.1 is a continuous mixer/pump designed for feeding bags of dry preblended cementitious materials such as underlayment, mortar, and grouts. It can operate in dry mode for continuous mixing and pumping, or wet mode when material requires longer mixing time with a separate mixer before being poured into the hopper.

The Koine 3.1 features a single-phase motor with turbo boost, 6 speed settings, inverter technology, and a self-priming water pump with stainless steel housing and brass impeller. It includes a D8-1.5 rotor/stator, turbo mixer kit, material delivery pressure gauge, hoses, power cord, and hose cleaning kit with toolbox.

Key Features

  • Continuous mixer / pump for preblended cementitious materials
  • Model # 1106351
  • 240/60Hz single-phase power supply
  • Single-phase 3 HP motor with turbo boost to 5 HP
  • Max installed power: 4.5 HP
  • Mixer motor power: 2.9 HP
  • Electric pump motor power: 0.6 HP
  • Dry mode material flow rate: 1/4 - 3/5 cu ft/min
  • Wet mode material flow rate: .08 - 3/5 cu ft/min
  • Hopper volume: 2.65 cu ft
  • Loading height: 39 in
  • 6 speed settings
  • Inverter technology
  • 100% duty cycle motors

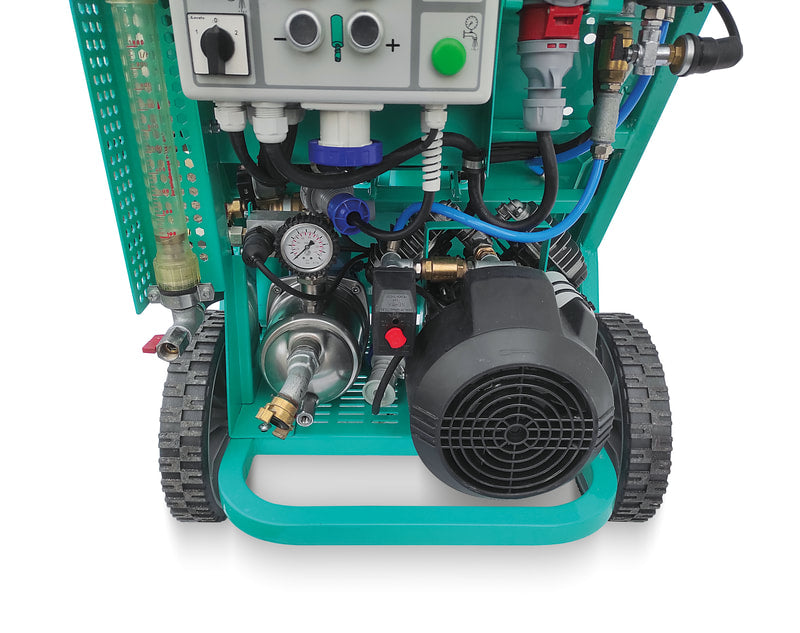

  • Self-priming water pump with stainless steel housing and brass impeller
  • D8-1.5 rotor/stator included
  • Turbo mixer kit with material delivery pressure gauge

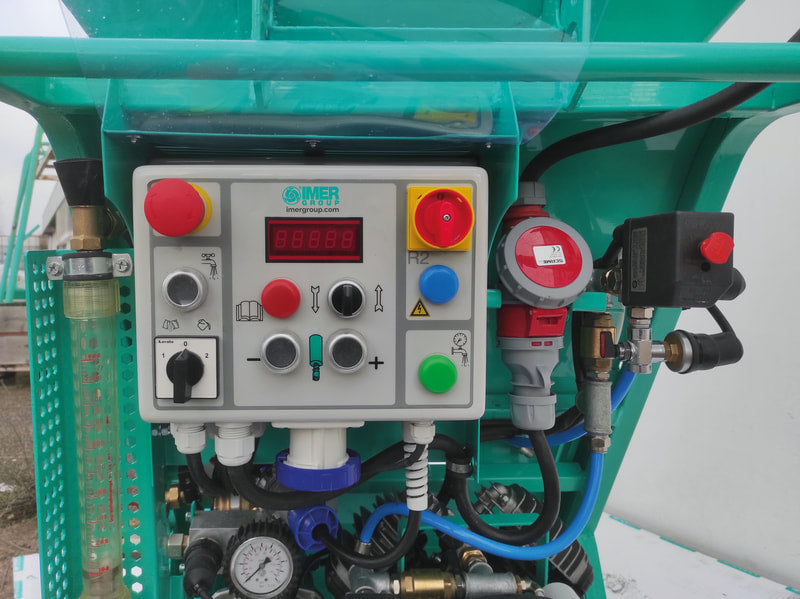

  • Control panel with IMER 6-speed inverter
  • 66 ft power cord
  • 66 ft water hose, 19 mm / 3/4 in
  • 50 ft material hose, 25 mm / 1 in
  • Hose cleaning kit with toolbox
Technical Specifications
Model # 1106351
Power Supply 240 V 1Ă˜
Max Installed Power 4.5 HP
Mixer Motor Power 3 HP
Electric Pump Motor Power .6 HP
Flow Rate - Dry Mode 1/4 - 3/5 cu ft / min
Flow Rate - Wet Mode .08 - 3/5 cu ft / min
Hopper Volume 2.65 cu ft
Loading Height 39"
Dimension w/l/h 26 in x 42 in x 59 in
Weight 350 lbs
Standard Equipment
  • D8 1.5 stator and rotor
  • Material delivery pressure gauge
  • Control panel w/ exclusive IMER speed inverter
  • Self-priming water booster pump
  • Water system with flow meter and discharge valves
  • 66' of power cord
  • 66' of water hose 19 mm (3/4")
  • 50' of material hose 25 mm (1")
  • Hose cleaning kit with toolbox
  • Mixing chamber clean out tool
  • Air compressor ready
Optional Equipment
  • Dual diaphragm compressor - Part # 1107637
  • Mortar, stucco and fireproofing gun kit - Part # 1107005
  • D5 - 2.5 Rotor - Part # 1107085
  • D5 - 2.5 Stator - Part # 1107084
  • Turbo mixer (use with Part # 1107029 & # 1107028) - Part # 1107517
  • 50' x 25mm material hose - Part # 1107525
  • 33' x 25mm material hose - Part # 1107526
  • 16' x 25mm material hose - Part # 1107527
  • 5' overhead wand - Part # 1107549
  • D8 - 1.5 Rotor with tab - Part # 1107029
  • D8 - 1.5 Stator - Part # 1107028
  • SLU mixing paddle for light materials - Part # 1107597
