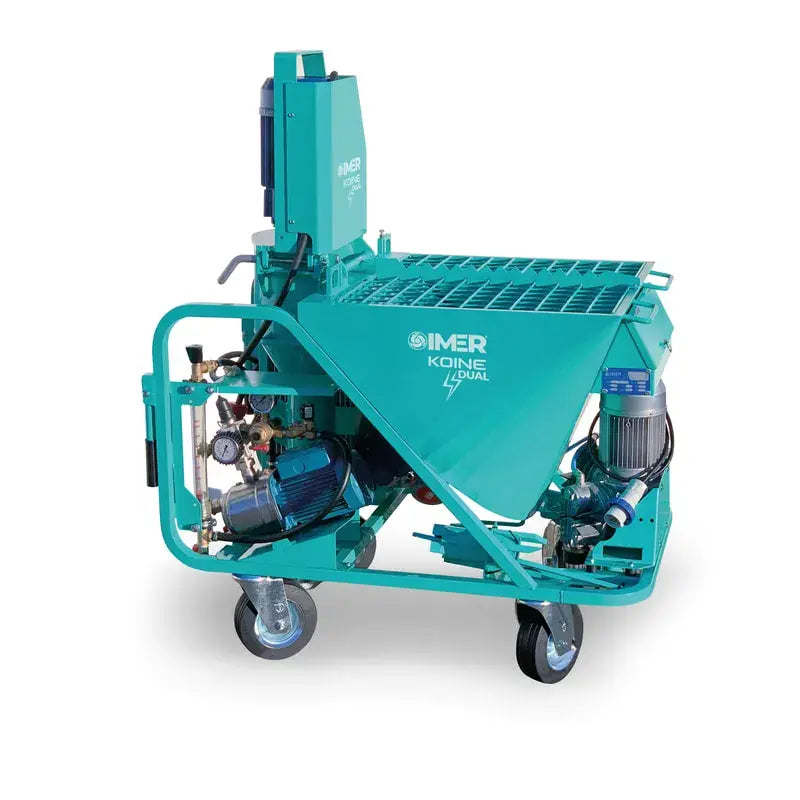

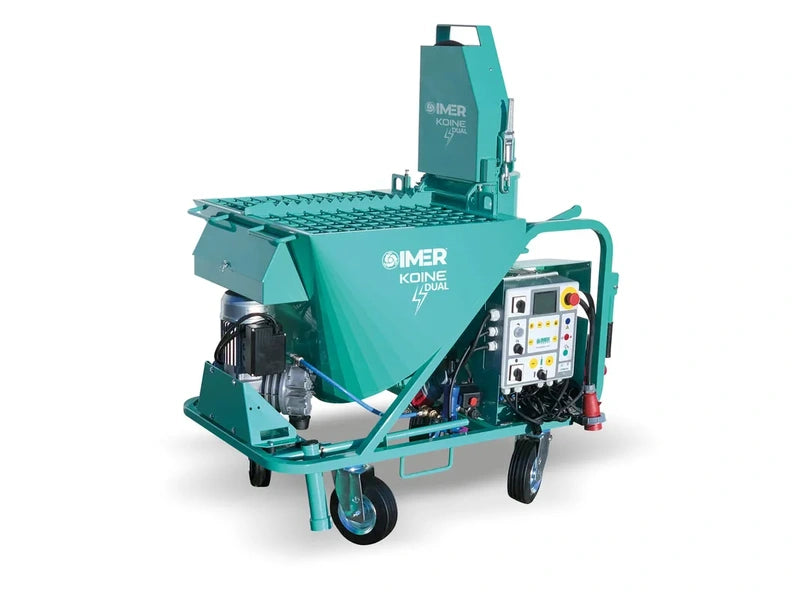

Product Description

The IMER Koine Dual is a continuous mixer and pump designed to make batching, mixing, and pumping preblended materials more efficient. Dry material is fed into the mixing chamber, where metered water is introduced, then mixed by a high-shear paddle before the rotor and stator move the material through the hose.

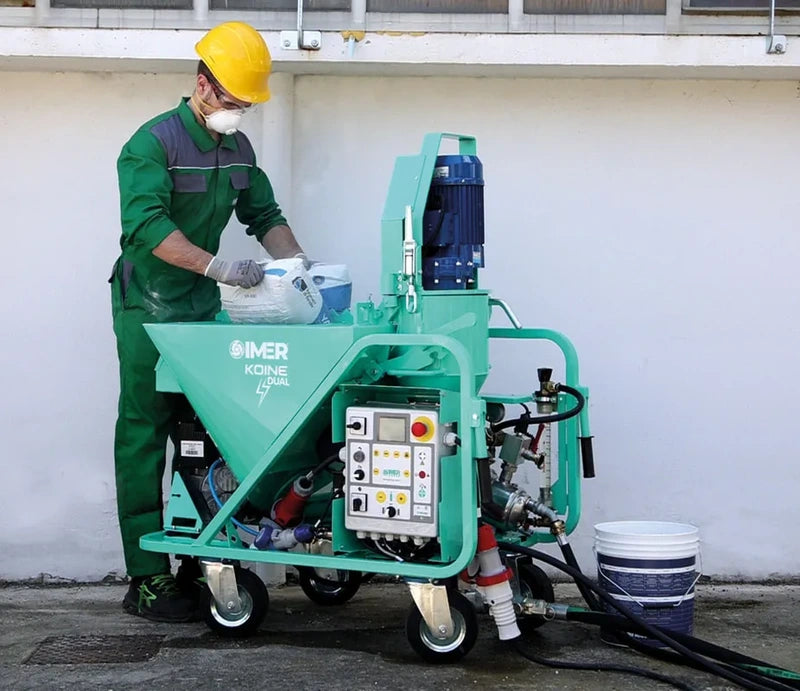

Built for flexible job site use, the Koine Dual can run on single-phase or three-phase power. It features a 9 HP total machine power, material flow rate up to 140 cu ft/hr, self-priming stainless steel water pump, and standard equipment for mixing, pumping, hose cleanup, and material delivery.

Key Features

  • Continuous mixer and pump
  • Model # 1106312
  • Runs on 208 V three-phase or 240 V single-phase power
  • 9 HP total machine power
  • 7.5 HP drive motor
  • 1 HP feeding wheel motor
  • 1 HP water pump
  • Material flow rate up to 140 cu ft/hr
  • 36 in loading height

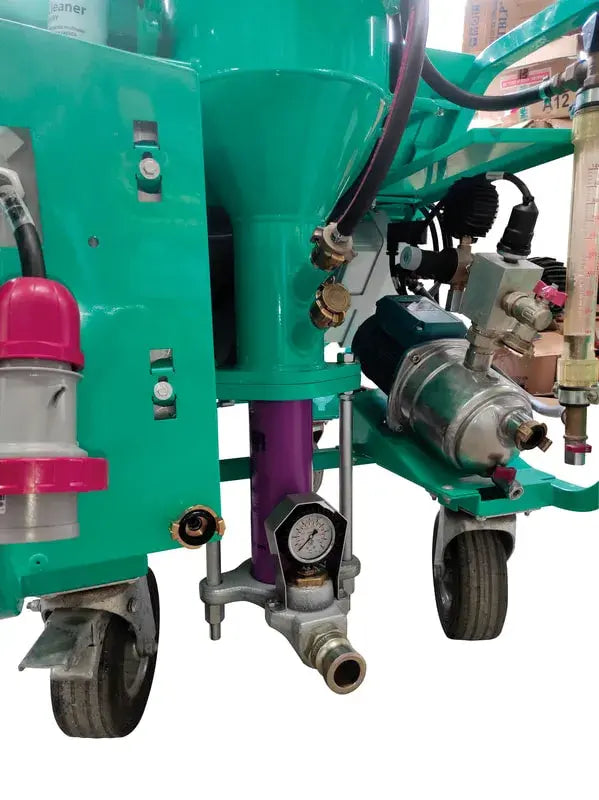

  • R8 stator and rotor with tab included
  • Turbo mixer kit included
  • Dust grate with vacuum port
  • Material delivery pressure gauge

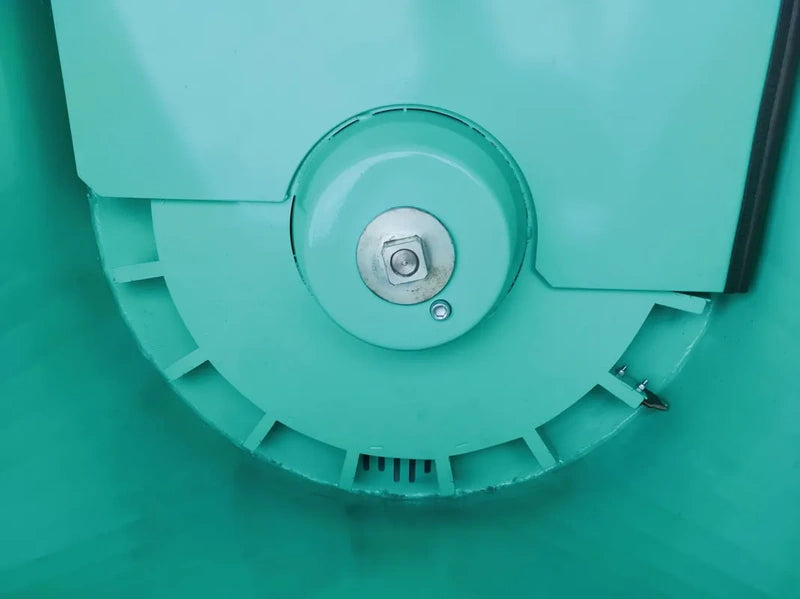

  • Gear-driven feed impeller
  • Self-priming stainless steel water pump
  • Water system with flow meter and no-freeze discharge valve
  • Integrated tool storage box
  • Clean-up kit with scraper and sponge
Technical Specifications
Model # 1106312
Power Supply: 3∅ / 1∅ 208 V / 240 V
Total Machine Power 9 HP
Drive Motor 7.5 HP
Feeding Wheel Motor 1 HP
Water Pump 1 HP
Material Flow Rate Up to 140 cu ft / hr
Bags / hr (SLU) Up to 300
Loading Height 36 in
Dimensions w/l/h 29 in x 47 in x 62 in
Weight 574 lbs
Standard Equipment
  • Dust grate with vacuum port
  • R8 Stator and rotor with tab
  • Turbo mixer kit
  • Material delivery pressure gauge
  • Gear driven feed impeller
  • Self-priming stainless steel water pump
  • 35mm hose clean-out adapter
  • Water system with flow meter and no freeze discharge valve
  • 130' electric cord
  • 130' water hose 19 mm (3/4")
  • 33' material hose 35 mm (1-3/8") with quick connects
  • Integrated tool storage box
  • Clean up kit (scraper and sponge)
Optional Equipment

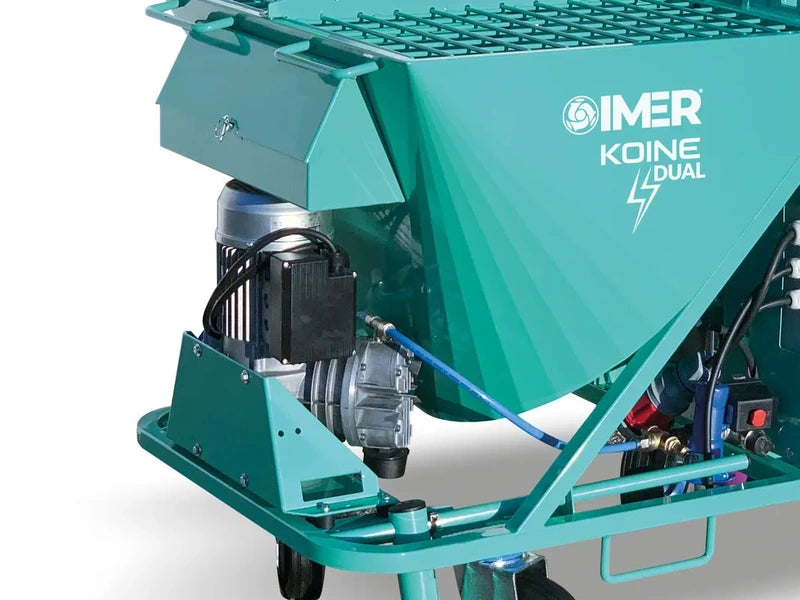

  • Dual diaphragm compressor, 3 phase — Part # 1107680
  • Koine gun kit — Part # 1107005
  • 5' overhead wand — Part # 1107549
  • 33' x 35mm hose — Part # 1107528
  • 35mm - 25mm Reducer — Part # 1107565
  • R7 - 1.5 rotor with tab — Part # 1107625
  • R7 - 1.5 stator — Part # 1107624
  • R7 - 2.5 rotor with tab — Part # 1107623
  • R7 - 2.5 stator — Part # 1107622
  • Mixing paddle for light materials — Part # 1107541
  • Spray gun 35mm female — Part # 1107641

sdfagawfgas

Downloads

Owner's Manual (Koine 4)

Product sheet
