Product Description

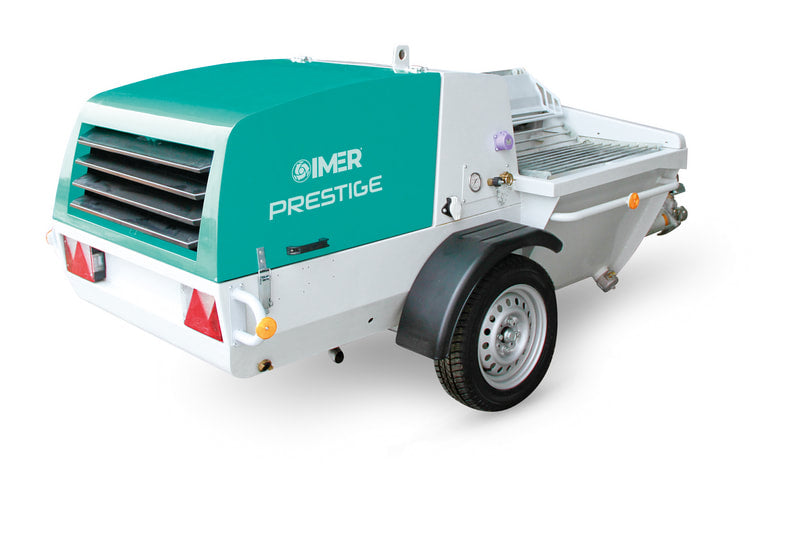

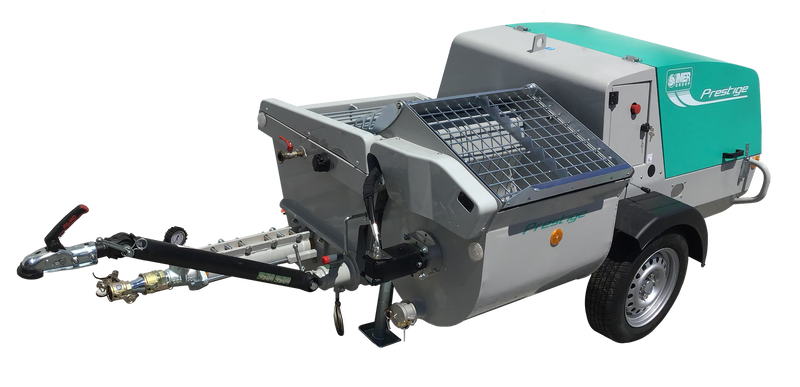

The IMER Prestige 300 is a diesel-powered multi-purpose pump and spray machine designed for pumping and spraying applications. It features a built-in 6.3 cu ft hydraulic mixer, onboard compressor, and an integrated control panel that brings key operating functions into one location.

Built for versatility, the Prestige 300 uses different rotor/stator combinations to handle a wide range of materials, including applications with up to 3/8 in aggregate when used with the optional L7 rotor/stator. Its high-capacity hopper, hydraulic mixer, compressor, and tow package make it suitable for demanding job site pumping and spraying work.

Key Features

  • Diesel-powered multi-purpose pump and spray machine
  • Progressive cavity / rotor-stator pump design
  • 24 HP diesel engine
  • 14 cf/m compressor flow rate
  • Built-in 6.3 cu ft hydraulic mixer
  • 7 cu ft hopper capacity
  • Maximum pumpable aggregate size up to 3/8 in
  • Uses different rotor/stator combinations
  • 2L6 screw pump included
  • High-shear hydraulic mixer
  • Variable speed hydraulic pump
  • Programmable mixer timer
  • Metal accessory box
  • 2 clean-out sponges
  • Tow package for highway use
  • Safety sensor system stops mixing paddles when the grid is opened
Technical Specifications
Model # 1106433
Engine Power 24 HP
Compressor Flow Rate 14 cf/m
Max Aggregate Size 3/8 in
Hopper Capacity 7 cu ft
Mixer Capacity 6.3 cu ft
Dimensions w/l/h 131.5 in x 55.5 in x 53 in
Weight 1,653 lbs
Standard Equipment
  • 24 HP diesel engine
  • 14 CF/m compressor
  • 2L6 screw pump
  • 2 clean-out sponges
  • High shear hydraulic mixer
  • Variable speed hydraulic pump
  • Programmable mixer timer
  • Metal accessory box
  • Tow package for highway use
Optional Equipment
  • 33' of 35mm hose — Part # 1107528
  • 33' of 50mm hose — Part # 1107533
  • Aqua Control Electronic Meter System — Part # 1107209
  • Vibrating grate — Part # 1107036
  • 164' remote control — Part # 1107086
  • IM25L rotor/stator kit — Part # 1107149
  • 60.12 Rotor/stator kit — Part # 1107090
  • L7-1.5 Rotor/stator kit — Part # 1107660
  • 50mm to 35mm material hose reducer — Part # 1106178
  • Spray gun Step 120 — Part # 1107577
  • 16' x 35mm male to 25mm male hose — Part # 1107074
  • Pintle tow ring — Part # 1107161
  • Shotcrete gun — Part # 1106250
  • 5 Function radio remote — Part # 1107208
  • Hydraulic power washer — Part # 1107171
  • 5' overhead wand — Part # 1107549


Downloads

Owner's Manual

Product Sheet
