Product Description

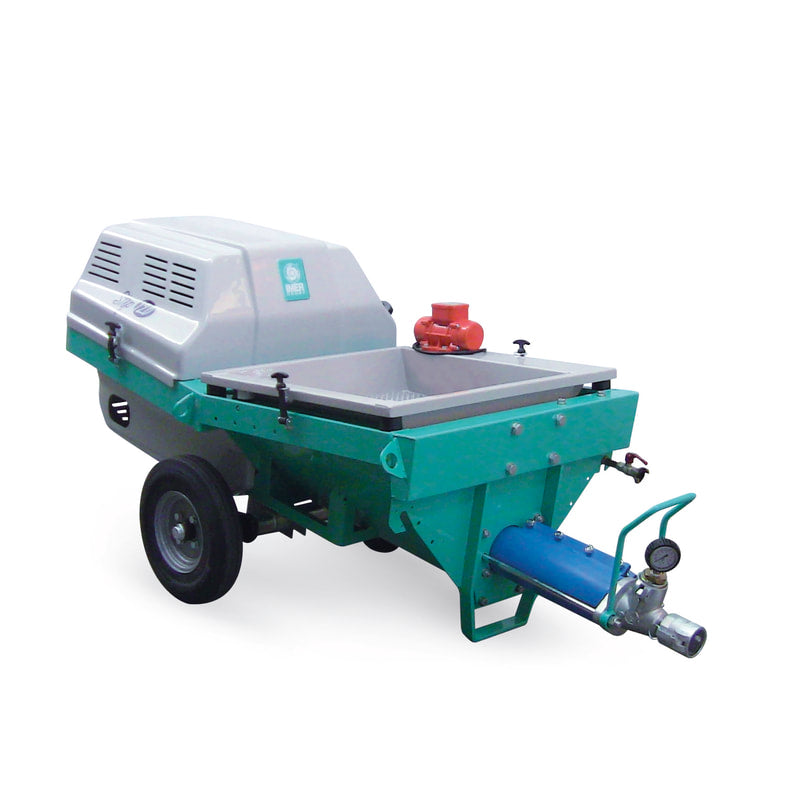

The IMER Step-Up 120 is a progressive cavity screw pump designed for pumping and spraying applications. It can pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofing, and other compatible materials.

Powered by a 7.5 HP motor, the Step-Up 120 is built for higher flow and longer material push. It can handle grouts with up to 3/8 in aggregate and includes 2-speed control for more precise adjustment based on the pressure and flow needed for the job.

Key Features

  • Progressive cavity screw pump
  • Designed for pumping and spraying applications
  • Model # 1106181
  • 7.5 HP motor power rate

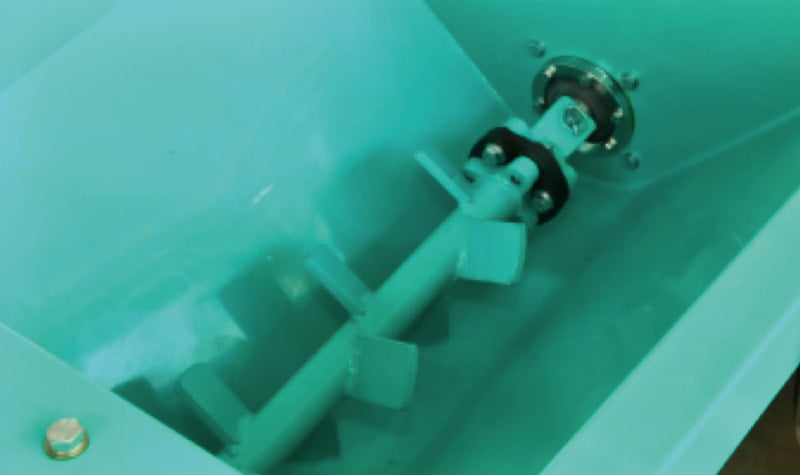

  • 2 HP mixer power rate

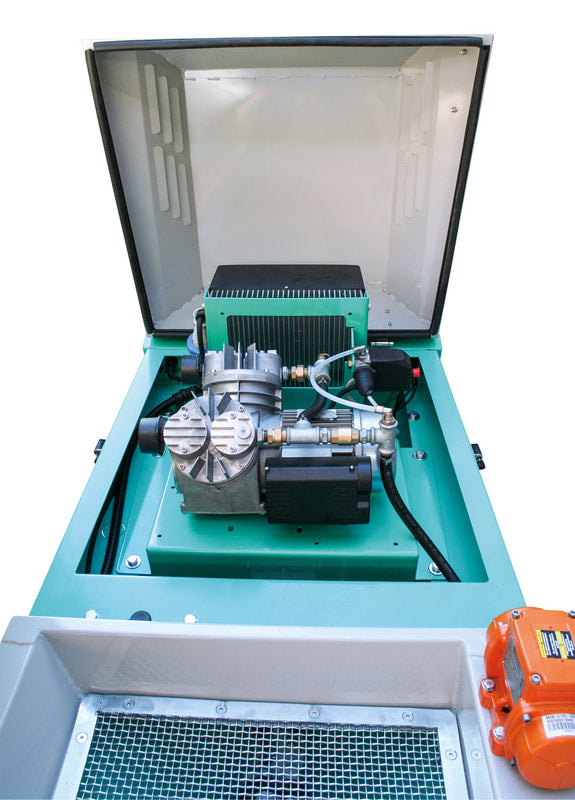

  • Electric compressor: 3 HP / 11 cfm
  • Maximum aggregate size: 3/8 in
  • Hopper capacity: 4.25 cu ft

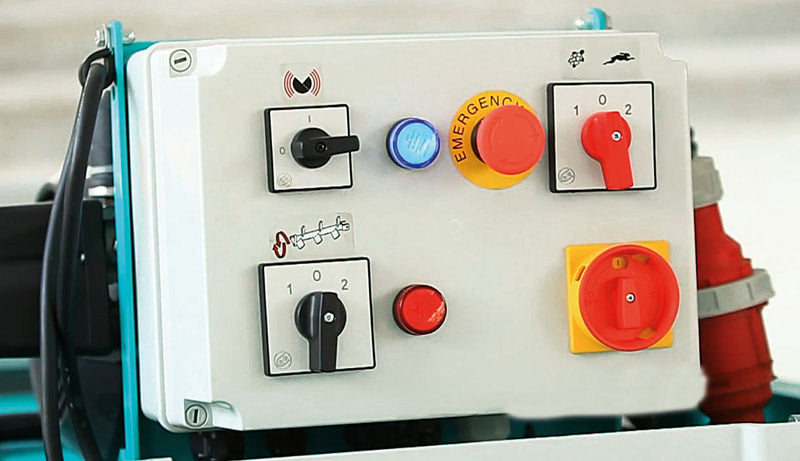

  • 2-speed control panel
  • 60.12 rotor/stator included
  • 66 ft power cord
  • 7.5 HP, 2-speed, 3-phase 100% duty-cycle motor

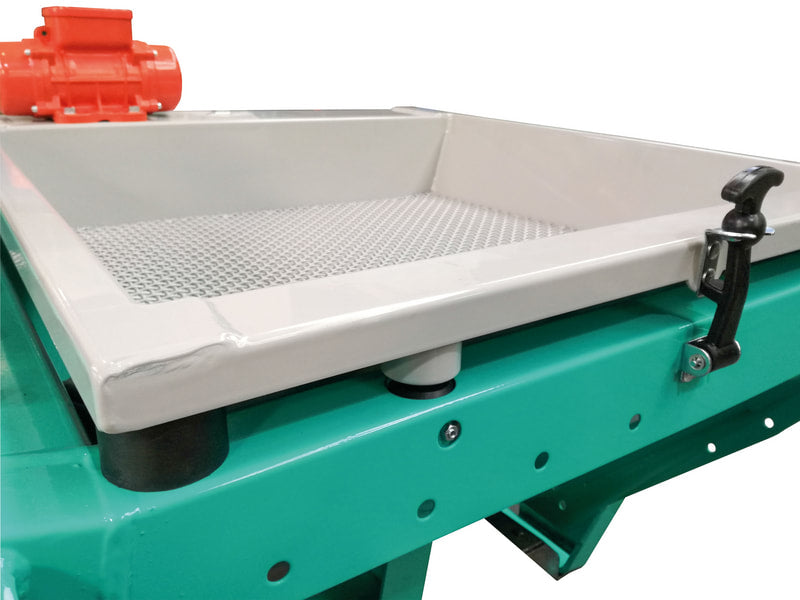

  • Grate for premixed materials
  • Tow kit included
  • Remote control ready
  • Accessory toolbox included
  • Torsion bar suspension
  • Articulating tow bar
Technical Specifications
Model # 1106181
Motor Power Rate 7.5 HP - 208 V 3Ă˜
Max Aggregate Size 3/8 in
Hopper Capacity 4.25 cu ft
Dimensions w/l/h 33 in x 80 in x 38 in
Weight 616 lbs
Standard Equipment
  • 2 speed control panel
  • 66' power cord
  • Remote control ready
  • 7.5 HP, 2 speed, 3 phase 100% duty cycle motor
  • IM25L rotor/stator
  • Tow kit
  • Grate for premixed materials
  • Accessory tool box


Downloads

Owner's Manual

Product Sheet
