Product Description

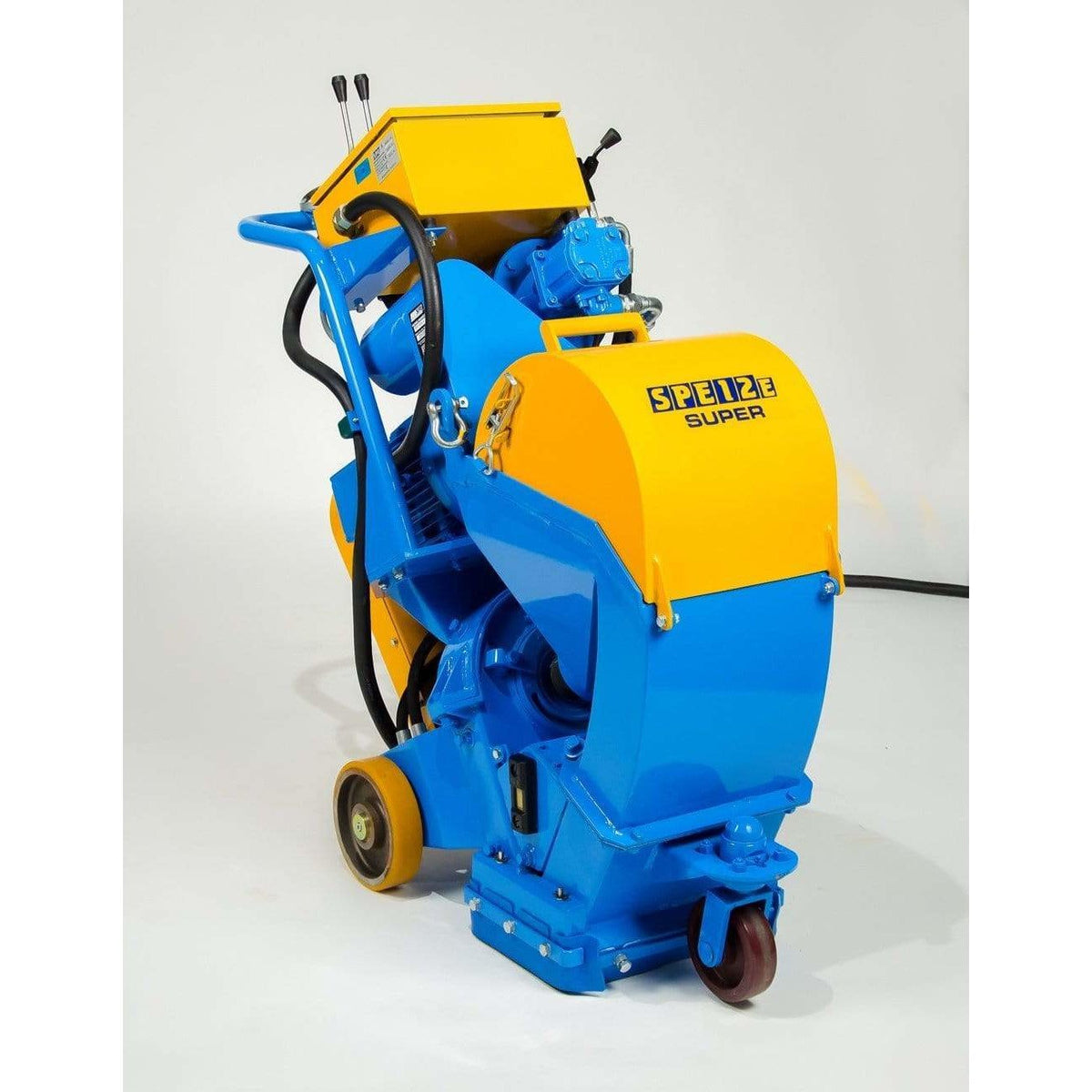

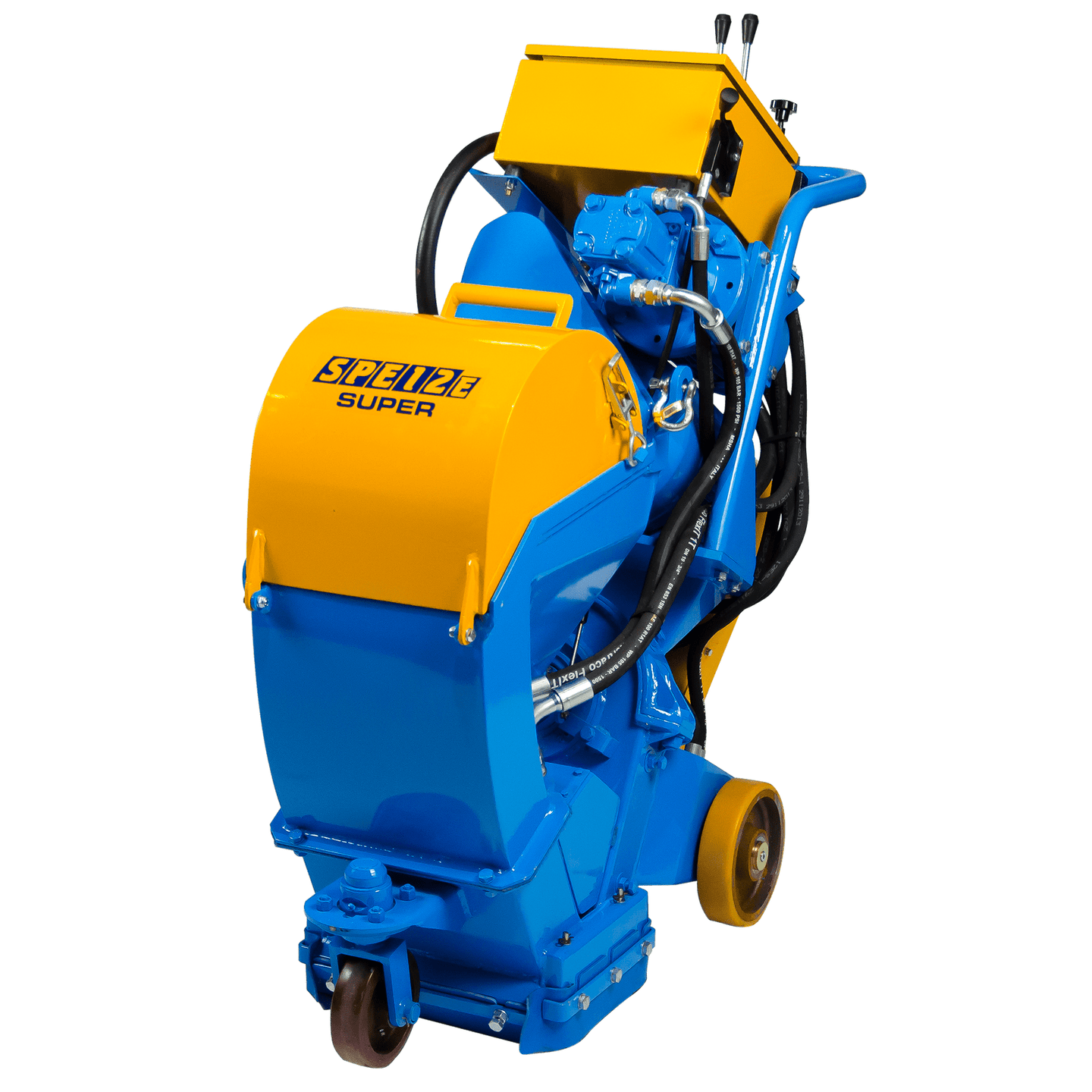

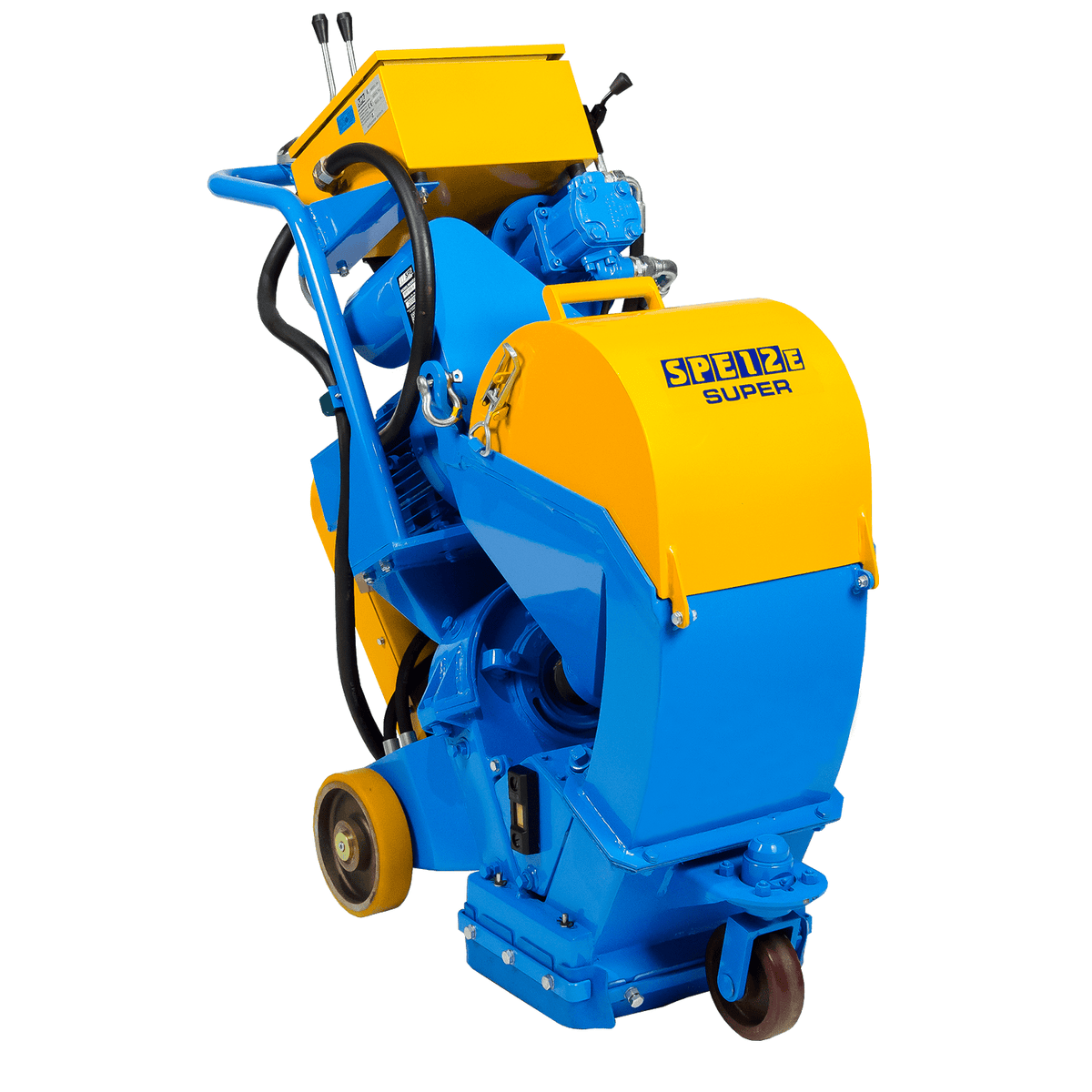

Bartell Global 12" Self Propelled Shot Blaster; 12HP 230V 3 Phase Electric - SPE12ES

Bartell Global’s shotblasters provide a fast, versatile, and virtually dust-free solution for abrasive cleaning and surface texturing on horizontal and slightly inclined surfaces. The process removes the mess associated with traditional hand blasting while creating a clean, properly prepared surface for coatings and overlays. Abrasive materials and debris are efficiently contained, helping reduce workplace hazards, cleanup, and environmental impact.

This medium-sized shotblaster is well suited for preparing concrete floors and steel surfaces. When paired with the SPE12DC Dust Collector, it helps maintain a cleaner, safer job site while supporting compliance with applicable air-quality requirements.



Features

  • 305mm (12″) working width
  • Electrically powered medium sized machine
  • Ideal for most general floor and steel preparation projects
  • Optional seal system to vary blast width


Additional Features

  • 12"/305mm working width

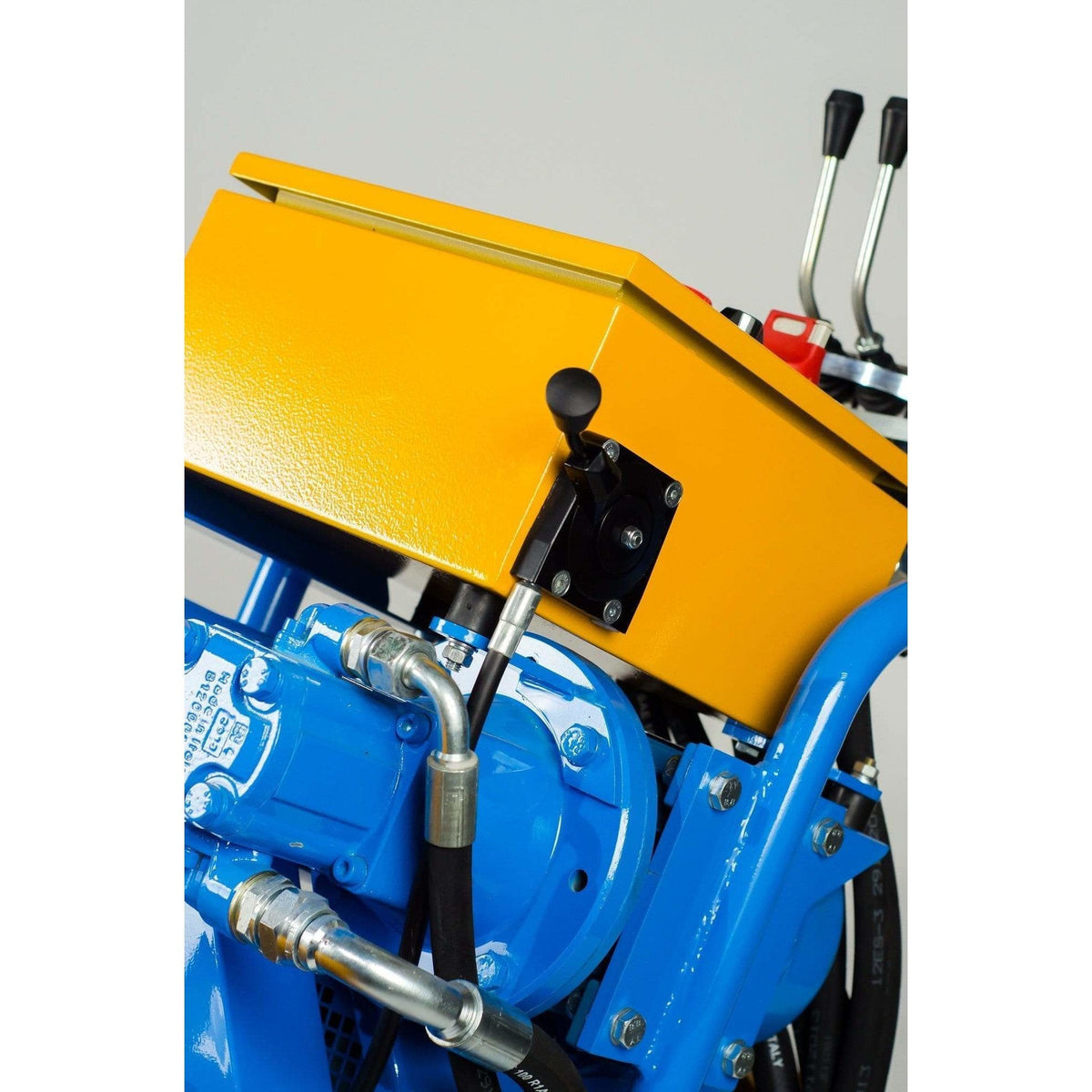

  • Self-propelled variable-speed drive allows for effective operator control
  • Ideal for most general floor and steel preparation projects
  • Blast unit constructed of manganese steel
  • Dust collector fitted with integral compressor and reverse air jet pulsation system to allow uninterrupted operation
  • Blast width can be reduced for line removal and weld inspection
  • Screening grill prevents damage caused by foreign objects
  • Optional magnetic/steel seal system available
  • Capable of using up to S550 abrasive
  • Fully machined blast-wheel support bearing assembly (Eliminates bearing problems and automatically aligns blast-wheel components)
  • Blast wheel can be rotated in both directions (optional upgrade)
  • Can be dismantled to pass through a 24"/60cm access hole in storage tanks

Specifications

Model SPE12ES
Voltage 380-415V
Phase 3-Phase
Blast Motor Output 10hp (7.5kW)
Working Width 12" (30cm)
Length 46.5" (118cm)
Width 18.9" (48cm)
Height 47.2" (120cm)
Weight 704 lbs (320kg)

Downloads

Linesheet
Specification Sheet
User Manual & Parts Book
