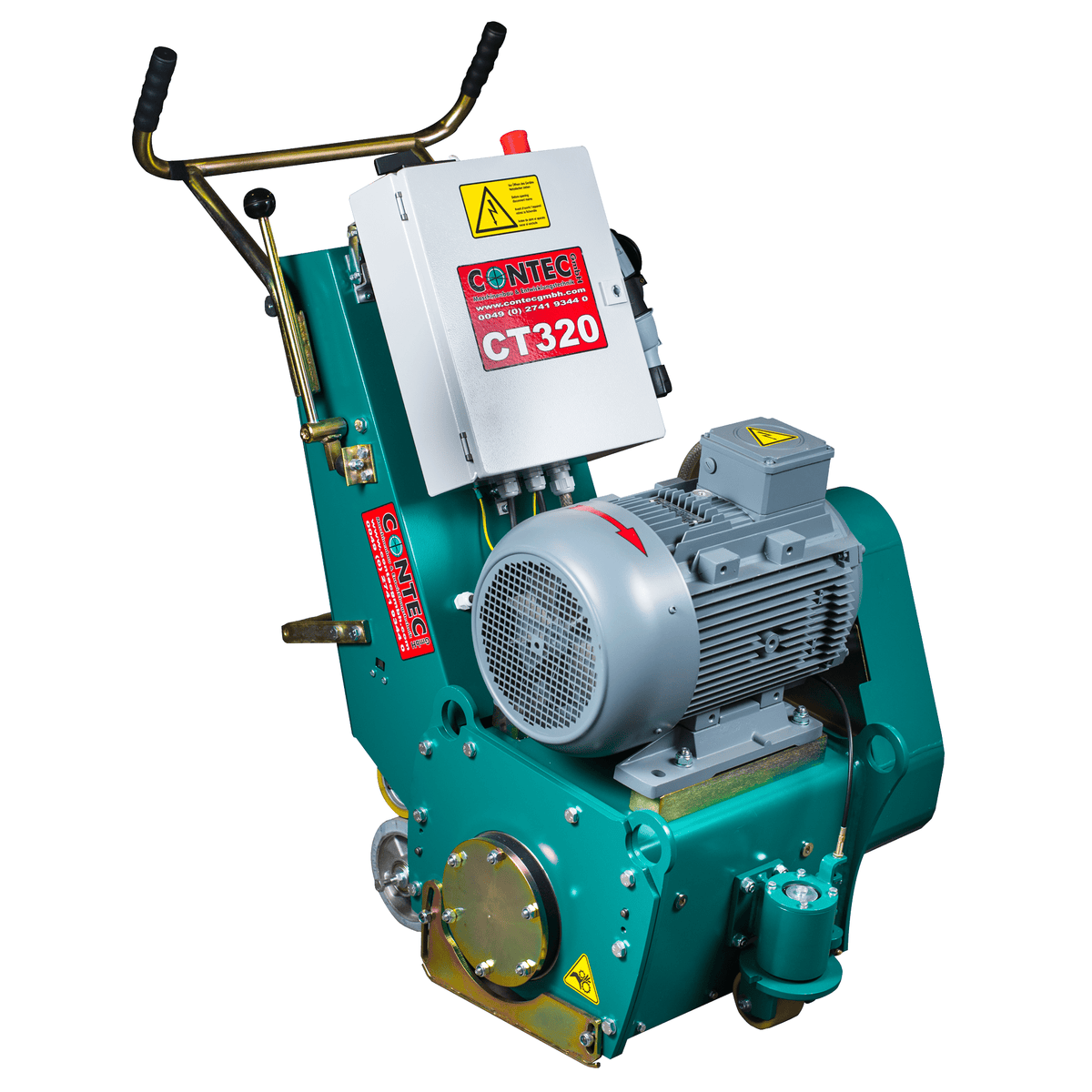

Bartell Global 13" Concrete Scarifier, Floor Planer - 23HP 480 volt - 3 Phase - CT320

The CONTEC CT 320 is the company’s largest and most powerful floor planer, designed to handle demanding applications and challenging floor surfaces. Its precision-aligned construction and heavy-duty bearings provide reliable, low-maintenance performance and smooth operation.

Equipped with a variable-speed drive and ergonomically designed, vibration-dampened handlebars, the CT 320 helps minimize operator fatigue during extended use. A wide selection of cutting tools makes the machine highly versatile for various surface preparation and removal applications.

The CT 320 provides cutting depths of up to 25 mm (1 in.). For applications requiring deeper material removal, the low-chassis version can achieve cutting depths of up to 40 mm (1.6 in.).



Features

  • Variable speed drive unit
  • Ergonomically dampened handle bars
  • Extensive range of cutting tools
  • Applications include removal of road markings, coatings, and membranes; surface texturing; scarifying; planing/shaving; grooving; cleaning; de-scaling

Specifications

Model CT320
Part Number CTPCT320 CTPCT320LC
Power Source Electric Motor: 23hp 480 V, 60Hz, 3-Phase, 25A
Maximum Working Width 12.6" (32cm)
Length 43" (109cm)
Width 24" (61cm)
Height 43" (109cm)
Weight 507 lbs (230kg)
Diameter of Diamond Blades (for shaving/planing) 11.8" (30cm)
Diameter of Cutters (for scarifying) 3" (8cm)

Weight 1 kg
Model

Standard – max cutting depth of 1"/25mm, Low Chassis – max cutting depth of 1.5"/40mm

Downloads

Product Brochure
Specifications Sheet
Manual & Parts Book
