Product Description

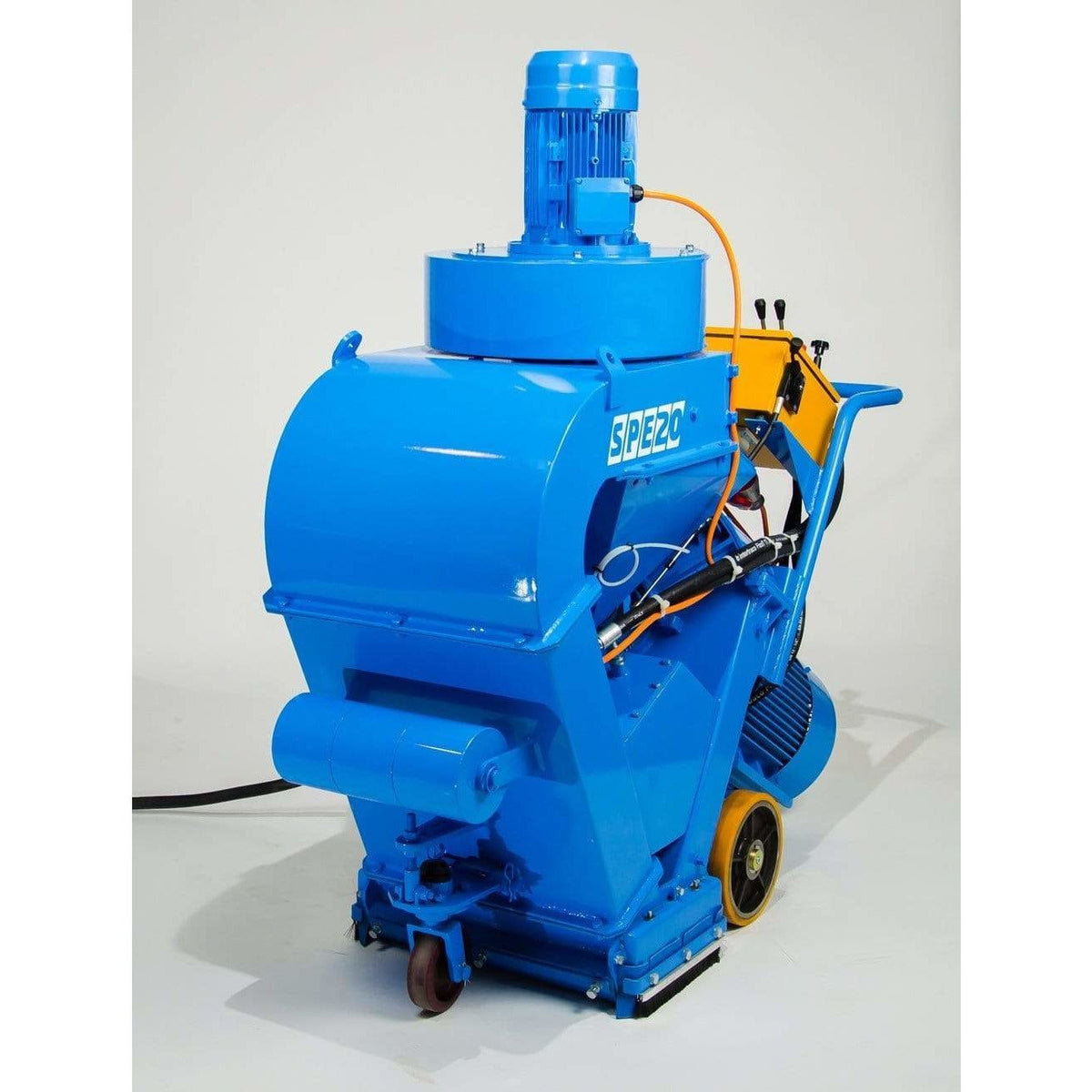

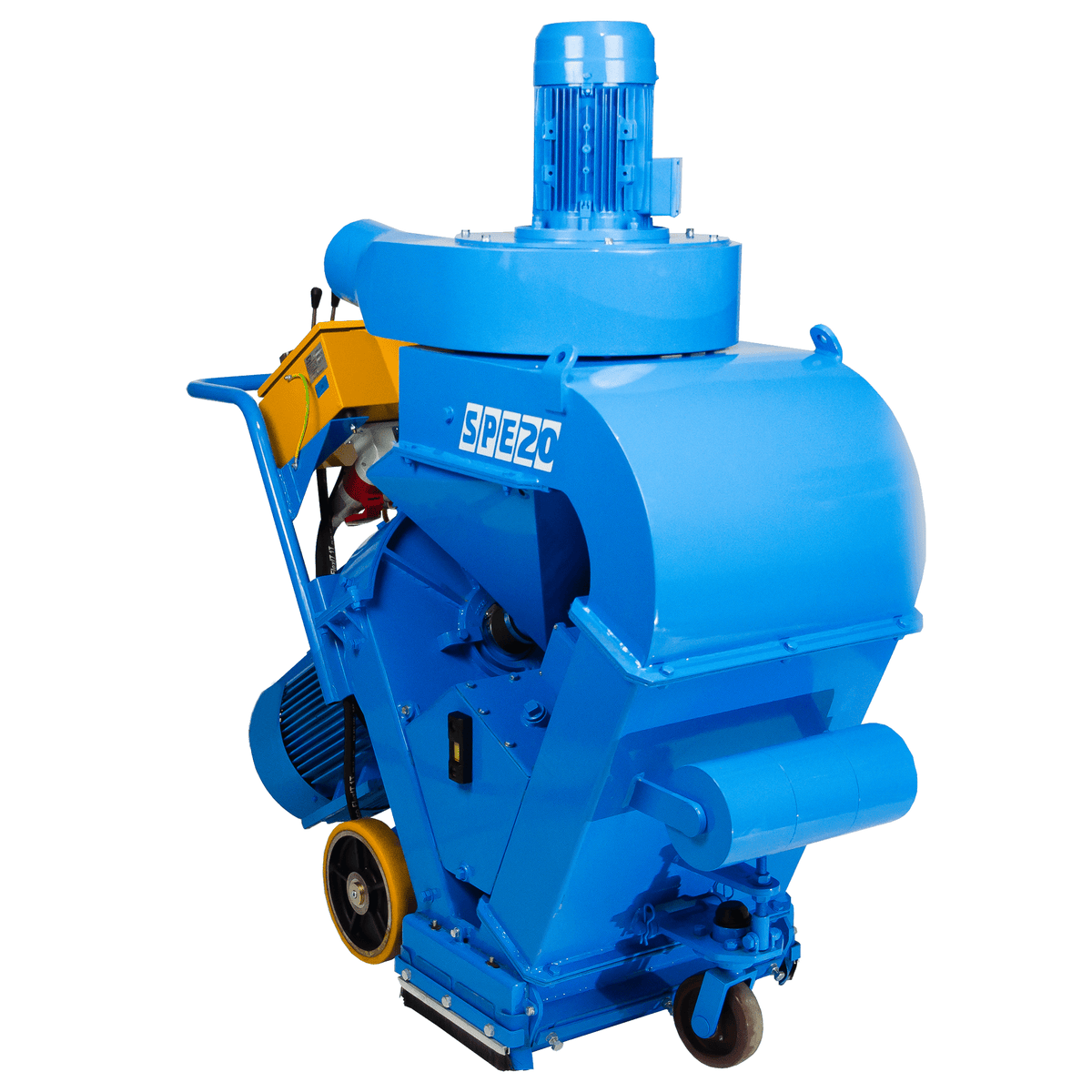

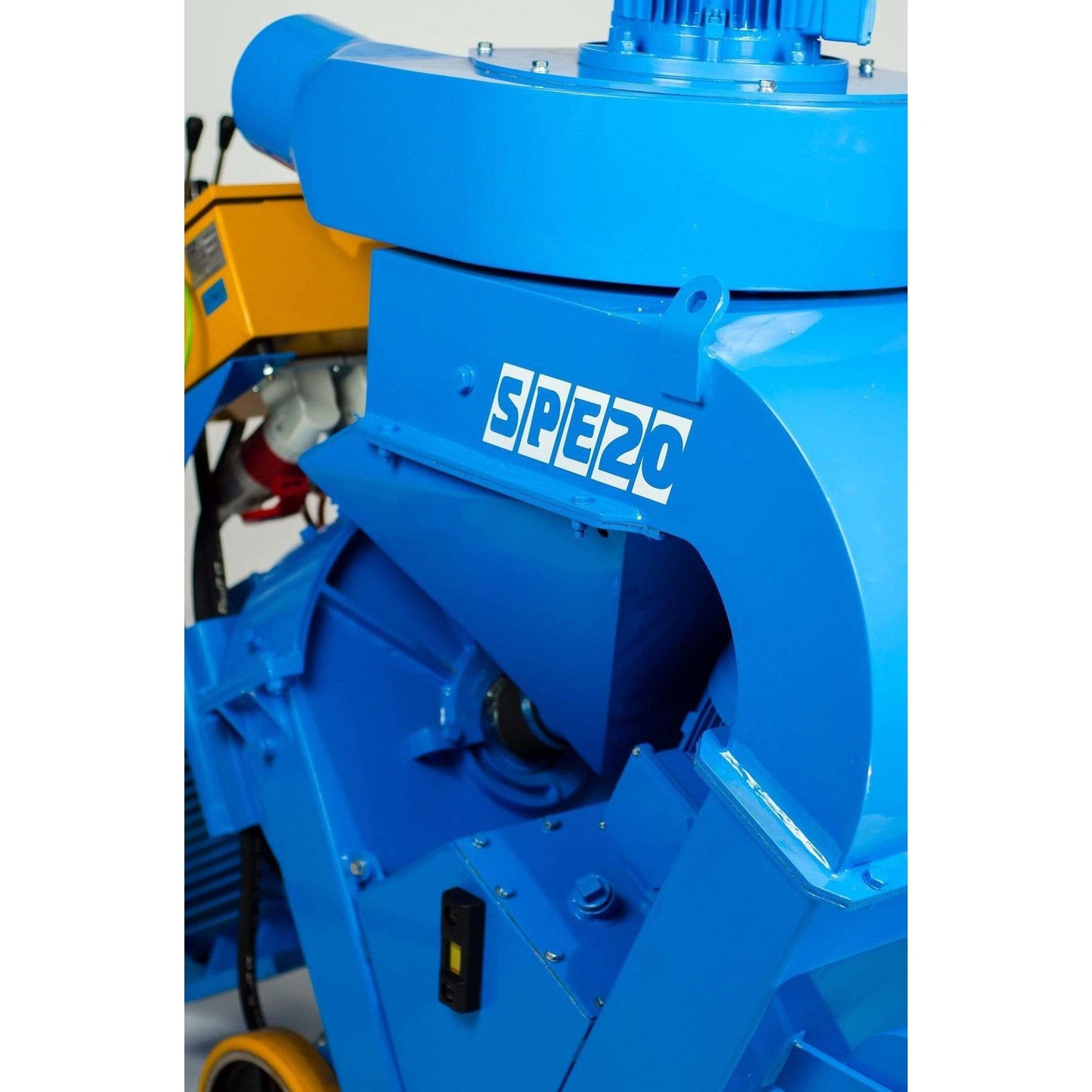

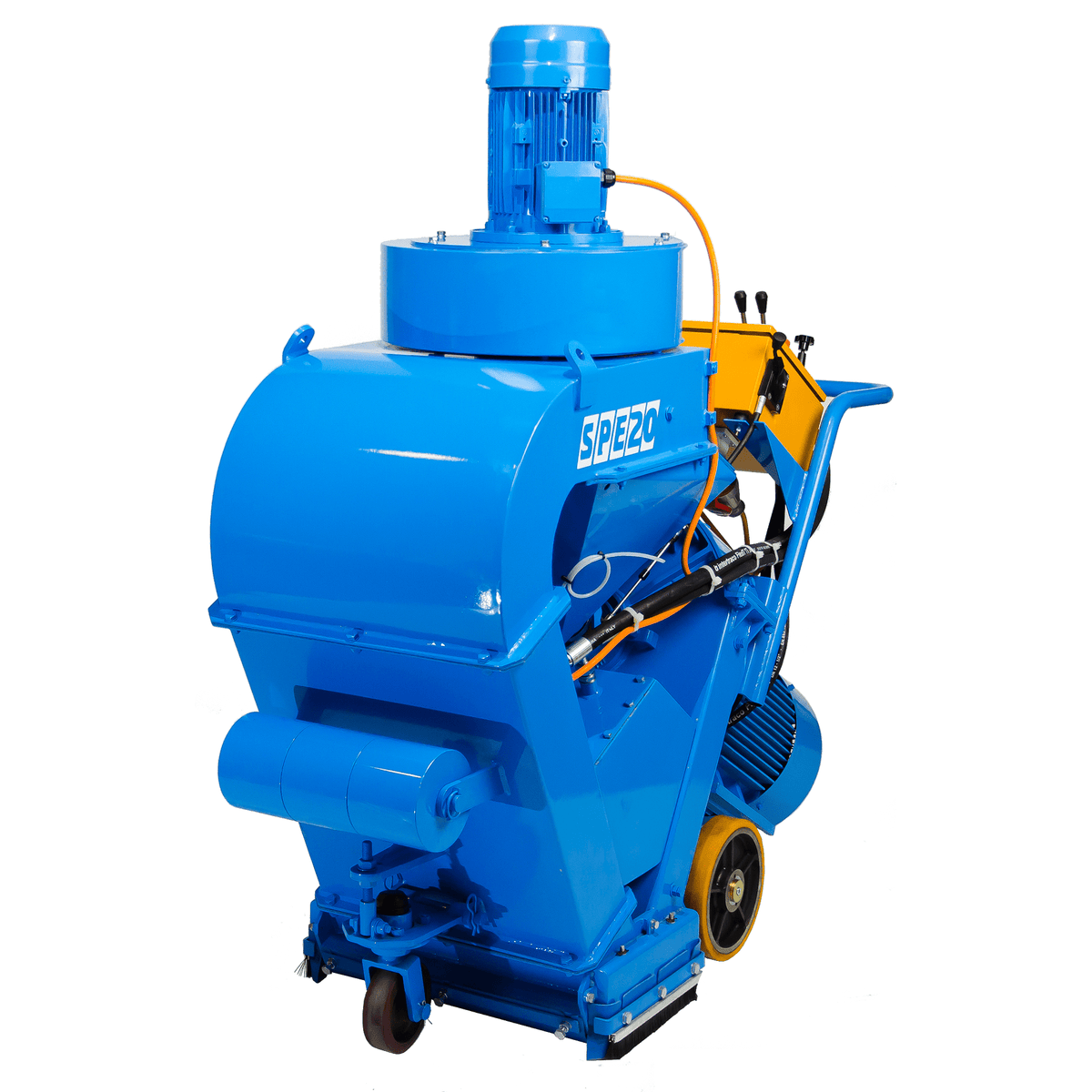

Bartell Global 20" Self Propelled Shot Blaster; 23HP 460V 3 Phase Electric - SPE20ES

The electrically powered SPE 20ES shot blaster is a heavy-duty, high productivity machine engineered specifically for serious contractors tackling large scale commercial projects. Built for maximum efficiency and rapid surface preparation, this high-capacity unit excels at profiling concrete floors while delivering equally powerful results on heavy steel surfaces.



Features

  • 508mm (20″) working width
  • Electrically powered, hydraulic dive
  • Fast blast steel to SA 2.5- 3 standards, concrete and asphalt with ease
  • Optional seal system to vary blast width

Applications include:

  • Removal of old coatings
  • Cleaning concrete and tiles
  • Exposing aggregates
  • Providing non-slip surfaces
  • Removing rubber deposits
  • Steel preparation to SA3 standard
  • Laitance removal on new concrete floors
  • Multi-storey car parks
  • Shopping centers
  • Food processing plants
  • Storage tank roofs and floors
  • Ships decks
  • Steel plates
  • Ro-Ro bridges
  • Ferries

Additional features include:

  • 20″/508mm working width
  • Electrically powered, hydraulic dive
  • Fast blast steel to SA 2.53 standards, concrete and asphalt with ease
  • Optional seal system to vary blast width
  • Blast unit constructed of manganese steel
  • Dust collector fitted with integral compressor and reverse air jet pulsation system to allow uninterrupted operation
  • Drive wheels are within the width of the blast cabinet
  • Blasting width can be reduced for line removal and weld inspection
  • Self-propelled variable-speed drive allows for effective operator control
  • Screening grill prevents damage caused by foreign objects
  • Uses up to S780 abrasive
  • Blast wheel can be rotated in both directions (optional upgrade)
  • Can be dismantled to pass through a 600mm access hole in storage tanks

Specifications

Model SPE20ES
Voltage 380-415V
Phase 3-Phase
Blast Motor Output 30hp (22.5kW)
Working Width 20.5" (52cm)
Length 59.5" (151cm)
Width 23.5" (60cm)
Height 57" (145cm)
Weight 1459 lbs (662kg)

Downloads

Line Sheet
Specification Sheet
User Manual & Parts Book - Standard
User Manual & Parts Book - 50hz
