Product Description


Bartell Global Tamping Rammer, 1400KG Force - BT1400H


FEATURES

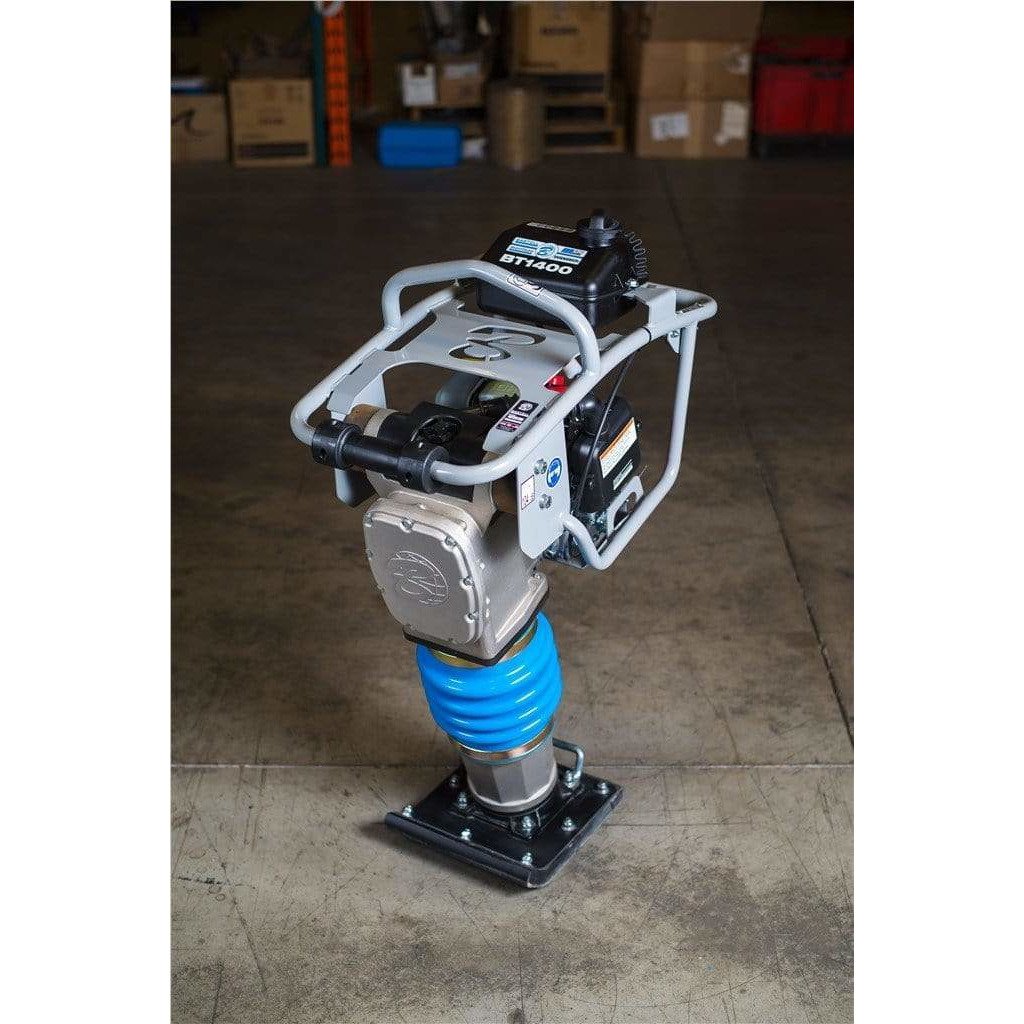

The Bartell BT1400 is a reliable, standard-duty tamping rammer designed for general soil and material compaction applications where a jumping-jack style rammer is the right solution. Unlike many comparable models equipped with a GX100 engine, the BT1400 features a Honda GX120 engine with a diaphragm carburetor, delivering additional power and improved performance, particularly when operating at higher elevations.

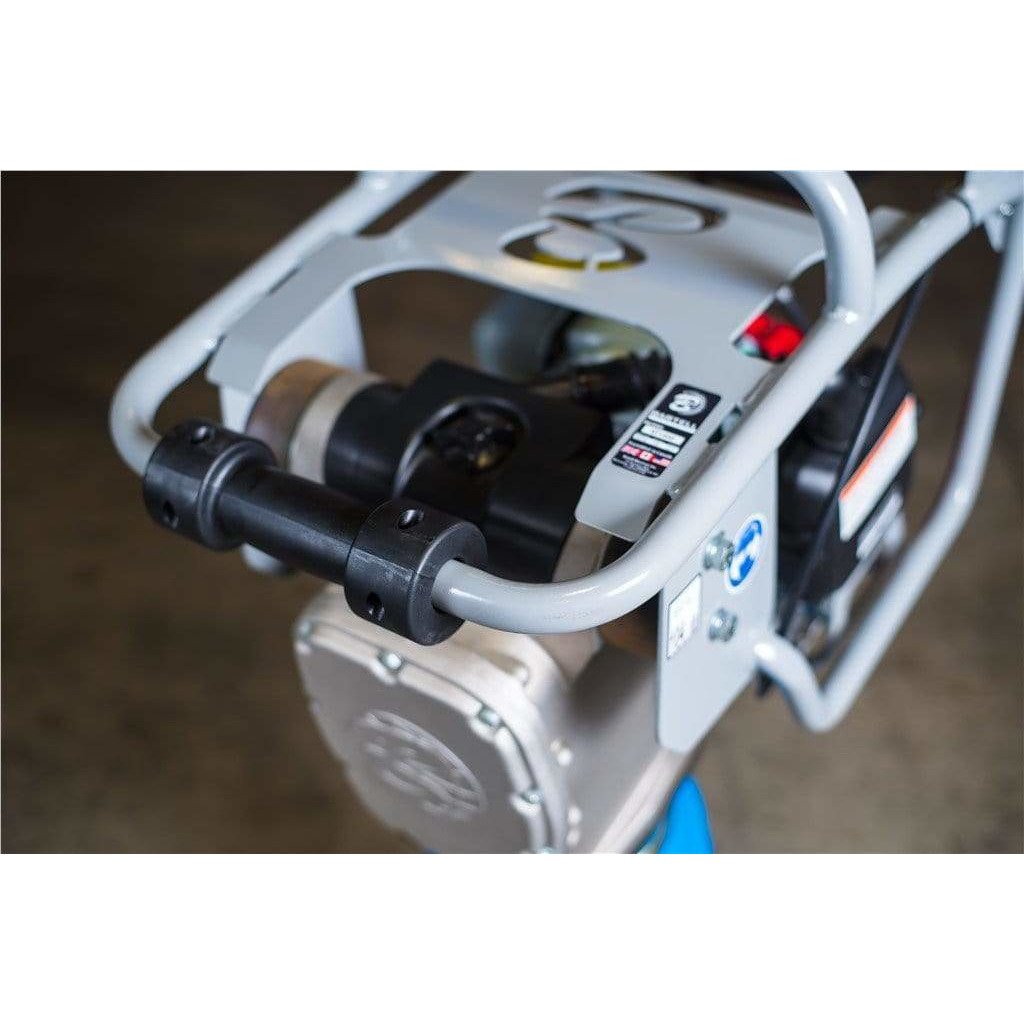

  • Adjustable operator handle allows for improved comfort and ergonomic positioning.
  • Honda GX120 engine with diaphragm carburetor provides additional power and reliable performance at higher elevations.
  • Heavy-duty throttle control is designed for extended service life and durability.
  • Dual air filtration system helps prevent dirt and debris from entering and damaging the engine.
  • Integrated fuel valve makes starting the rammer quick and convenient.
  • Heavy-duty shock mount system helps reduce hand-arm vibration for improved operator comfort during extended use.
  • Protective roll cage helps safeguard the machine from damage on demanding job sites.
  • Integrated roller and lifting handle allows for convenient one-person loading and unloading.

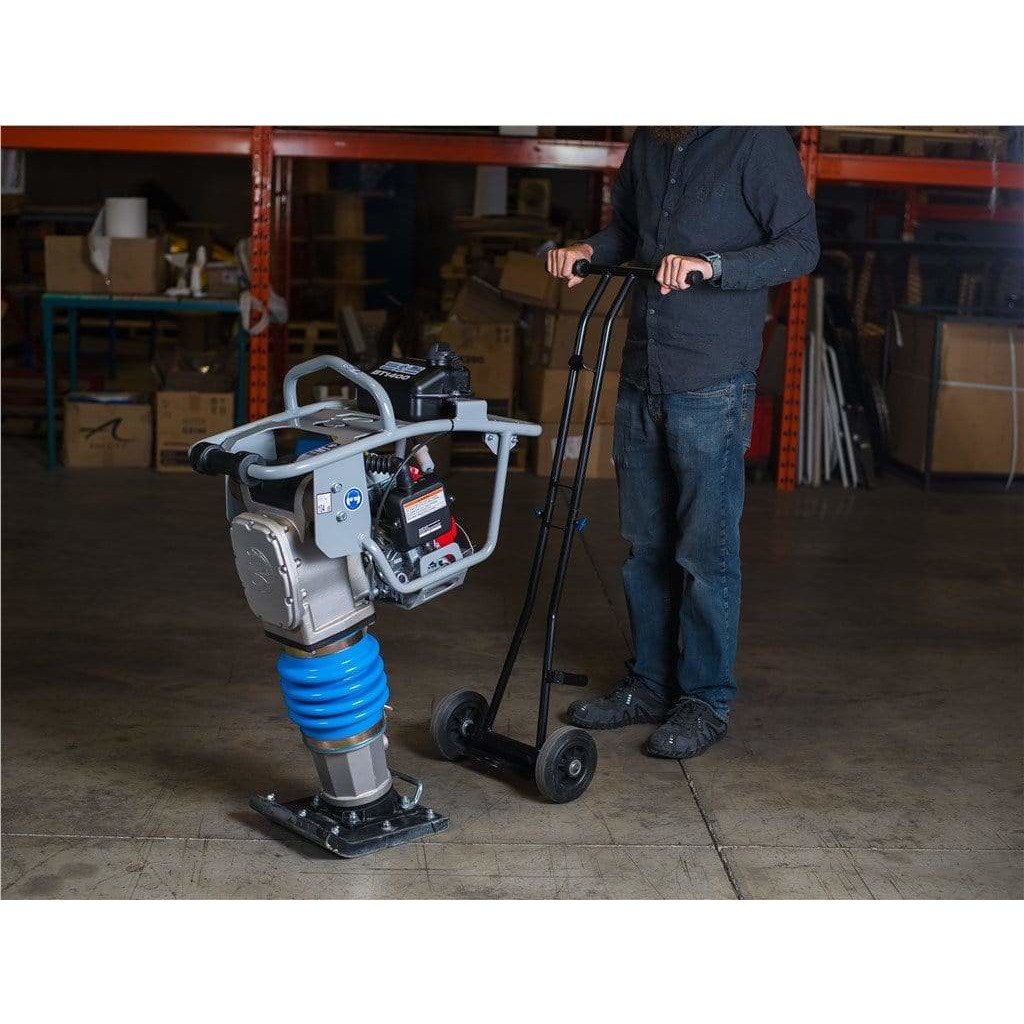

  • Rammer dolly included for easier transportation and job-site mobility.

Specifications

Part No.: BT1400H
Engine: Honda GX120
Power Output: 3.5hp (2.6kW)
RPM: 3600
Fuel Capacity: 0.5 GAL (2L)
Starting System: Recoil
Jumping Stroke: 2.8” (70mm)
Compaction Force: 3080lbf / 13.7kN (1400kgf)
Weight: 164lbs (74kg)
Plate Size: 11” x 11.8” (280mm x 300mm)

Manuals

Spec Sheet
