Product Description

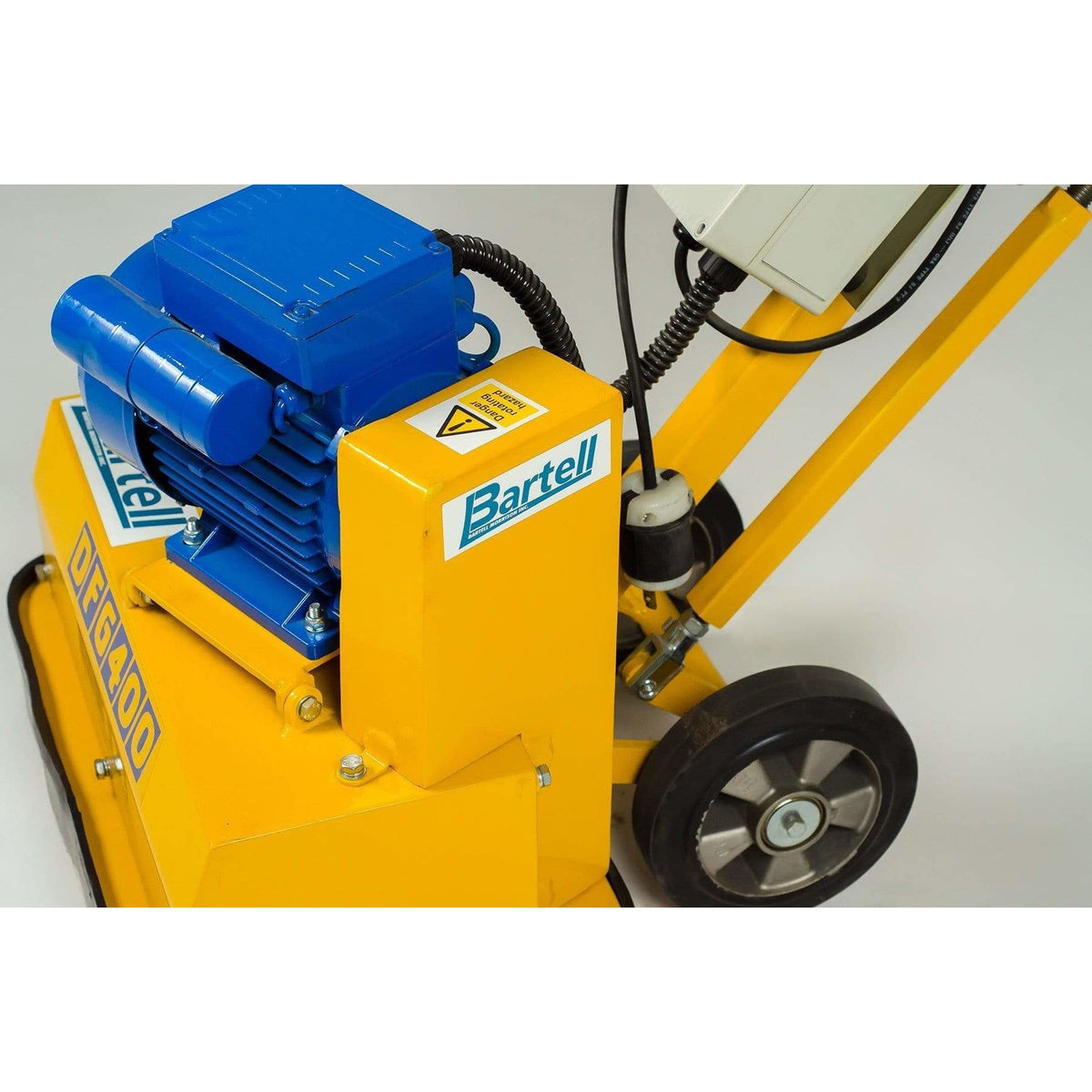

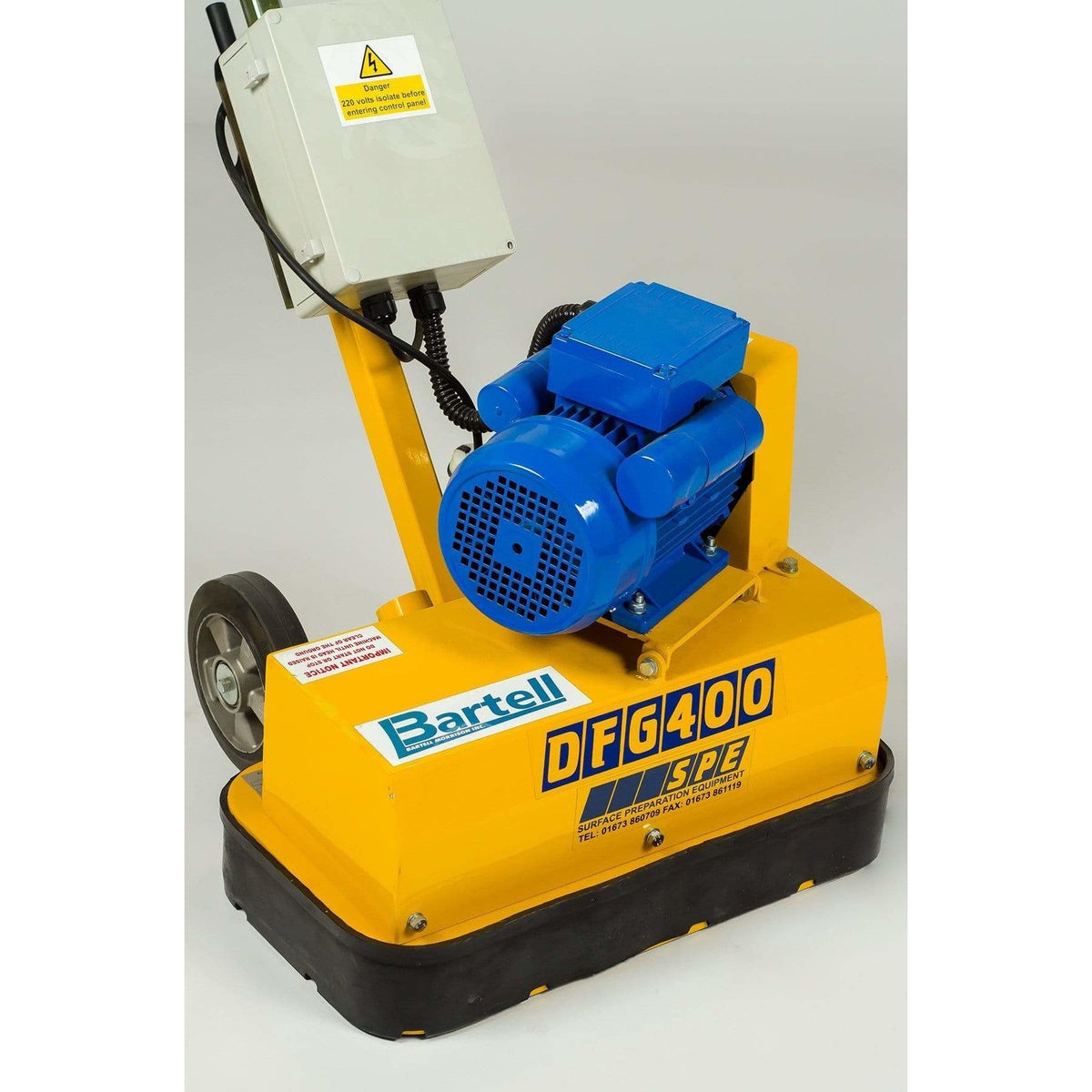

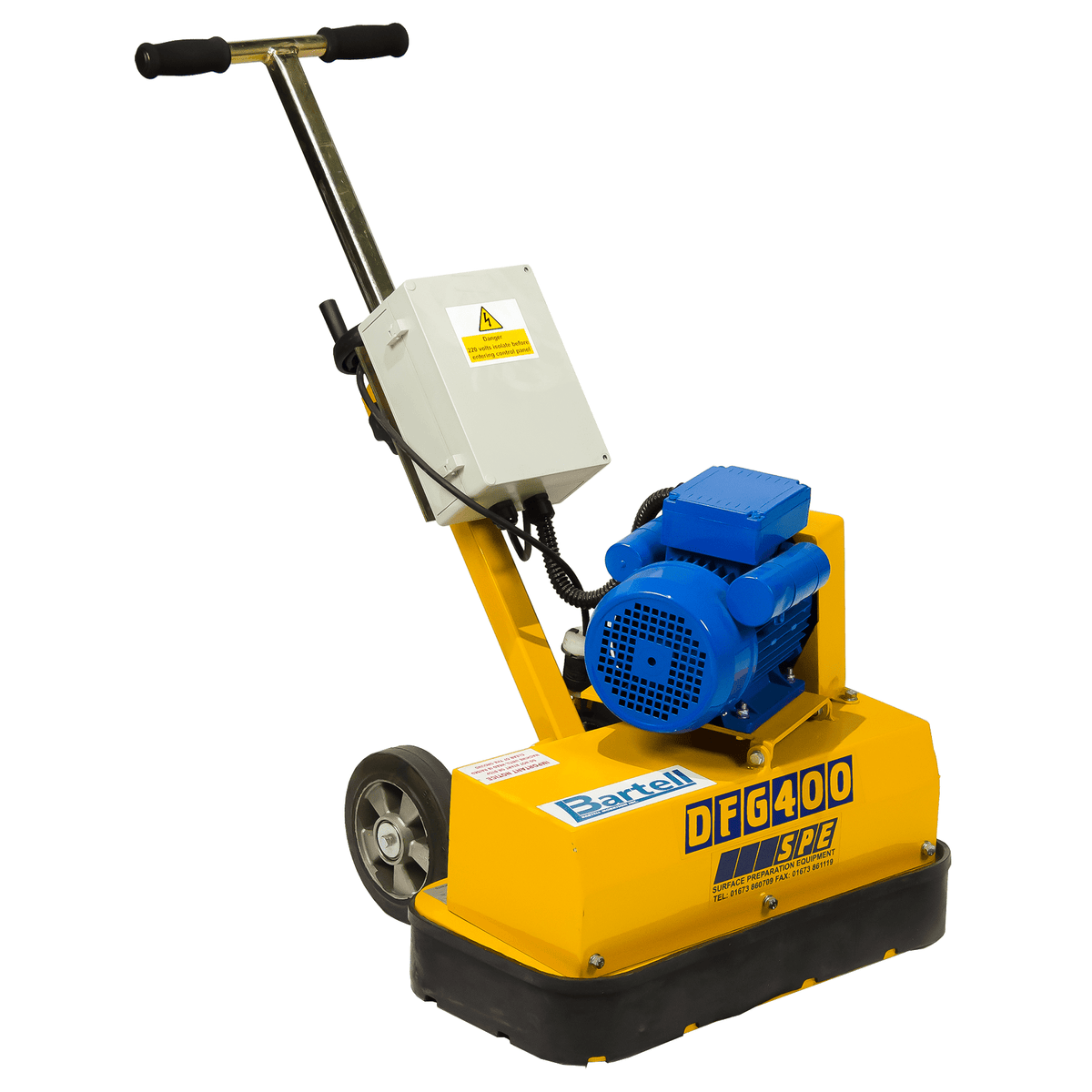

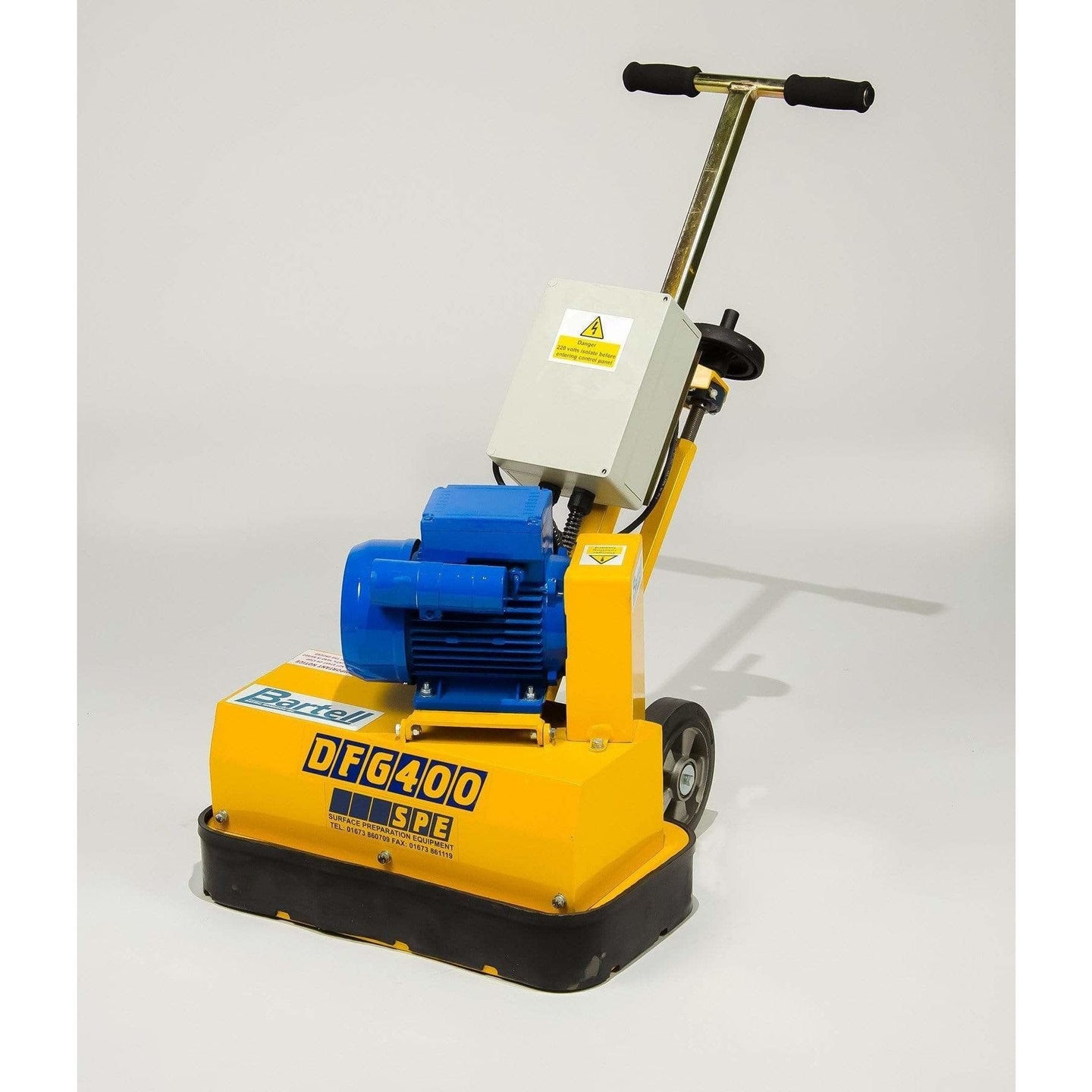

Bartell Global SPE Dual Disc Concrete Grinder, Gas/Electric - DFG400

A great choice for both rental companies and contractors.

FEATURES

The DFG 400 Floor Grinder has been developed to meet the competitive demands of the general floor grinding marketplace.

  • Twin head design
  • 16″ (400mm) working width
  • Heavy-duty gearbox drive system
  • Dust-free when used with a suitable dust collector
  • Screw type hand wheel allows the machine to be set accurately to the surface
  • Built-in lifting handles
  • Compatible with TMAG, SlideMAG, or standard 10″ diamond plate tooling
  • Also compatible with carborundum, wire brush and diamond blocks
  • Large diameter wheels for excellent mobility and stability

Specifications

Motor/Engine ELECTRIC GAS
Voltage 230V, 3-Phase, 60Hz
Power Output 3hp (2.2kW) 5.5hp (4.1kW)
Head Speed 335 rpm
Motor Speed 2800 rpm
Length 32.3" (82cm)
Width 22" (56cm)
Height 27.6" (70cm)
Weight 189 lbs (86kg)

Type: 110v 1Ø
Power Output (Kw): 3 / 2.2
Head Speed (rpm): 335
Motor Speed (rpm): 2800
Length (mm/in): 820 / 32.3
Width (mm/in): 560 / 22
Height (mm/in): 700 / 27.6
Weight (kg/lb): 86 / 189.2
