Product Description

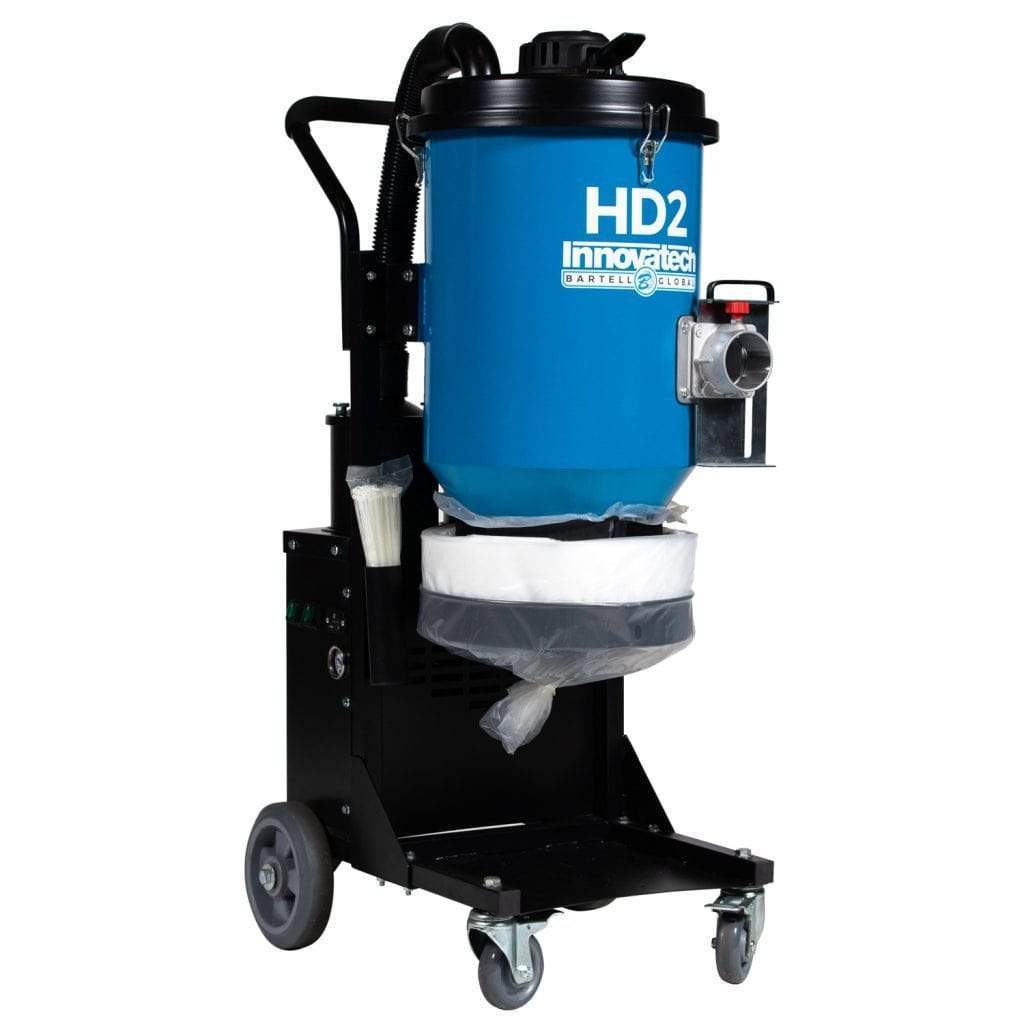

Bartell Global HEPA Dust Collector, 110V, Single Phase - HD2

Bartell Global’s HD Series dust extractors use a two-stage filtration system with jet-pulse filter cleaning technology to capture up to 99.97% of harmful airborne particles. This helps protect operators while supporting compliance with environmental regulations. Equipped with two independently controlled motors, the system allows users to adjust airflow and suction levels to suit a variety of applications and jobsite requirements.



FEATURES

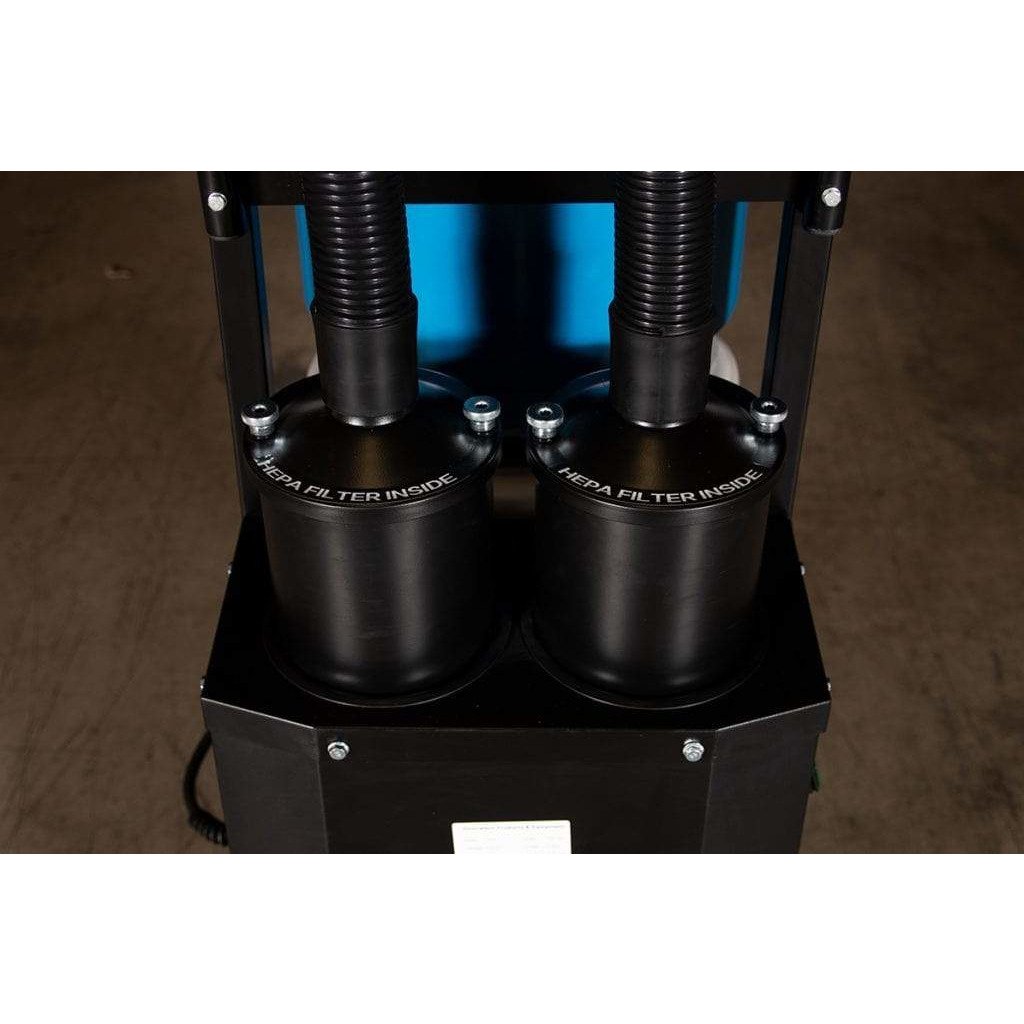

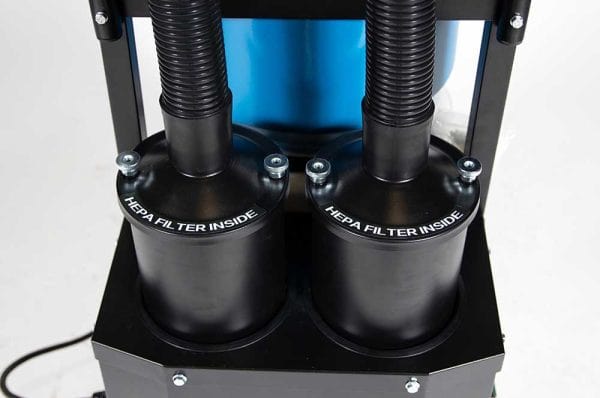

  • Equipped with 2 HEPA filters which remove at least 99.97% of airborne particles down to 0.3 micrometers in diameter securing a high standard of quality and safety

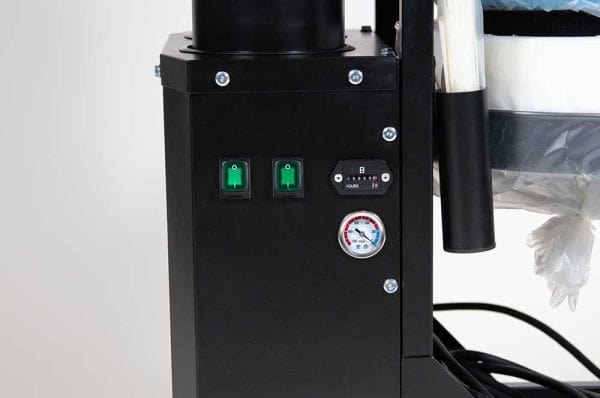

  • 2 individual motor switches provide variable suction strength and power
  • Reverse-air jet-pulse filter cleaning system effectively cleans and removes dust build-up on the filters.
  • Easy to use inlet closure eliminates the need to remove hoses when pulsing and cleaning filters
  • Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding
  • Equipped with a continuous-bag system for safe & easy disposal of concrete dust
  • Comes with 25ft hose and floor wand

Specifications

Volts: 120v
Inlet: 50mm
Power (HP): 2.4 HP
Amps: 16
Air Flow (cfm): 240
Water lift (inches): 100
Pre-filter (f8): 34 ft2, >99.5% @1.0um
HEPA Filter (H13): 26 ft2 >99.99% @0.3um
Dimensions: 24.7” x 22.0” x 48.0”
Weight: 119lbs

Models HD2
Volts 120
Amps 16
Inlet Diameter 2.5" (63mm)
Power (hp) 3.2hp
Air Flow (cfm) 240
Water lift (inches) 100
Pre-filter (F8) >99.5% @1.0um 34 ft2 (3m2)
HEPA Filter (H13) >99.99% @0.3um 26 ft2
Length 26" (65cm)
Width 23" (58cm)
Height 50" (126cm)
Weight 119 lbs (54kg)

Downloads

Product Brochure
Specifications Sheet
User Manual & Parts Book
