Product Description

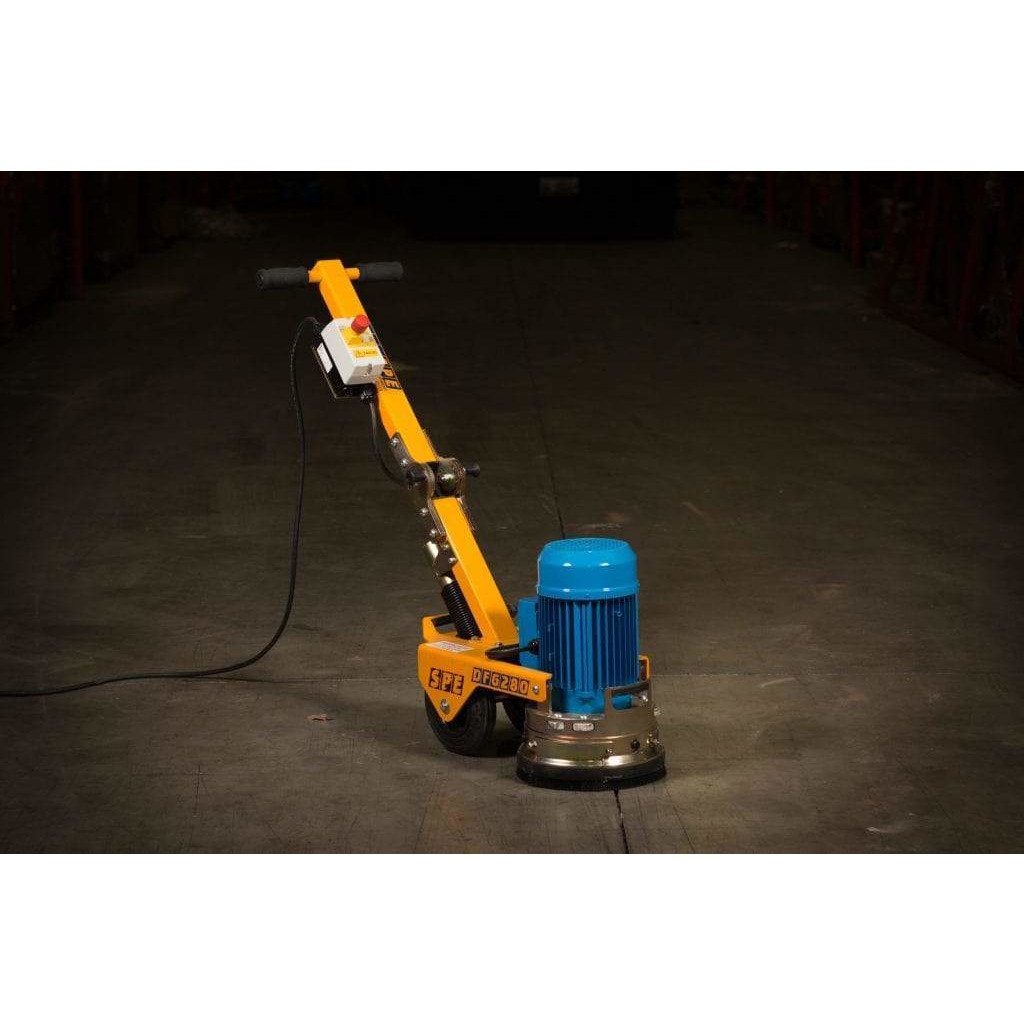

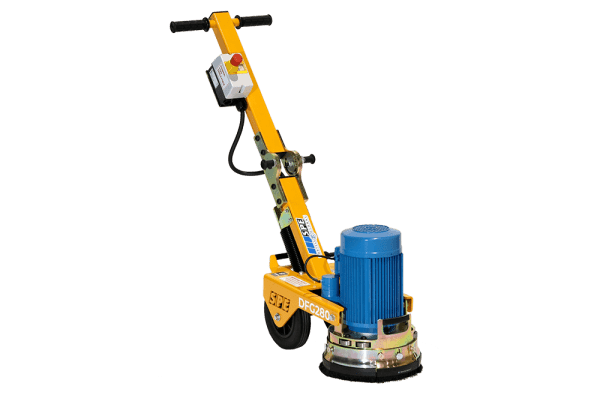

Bartell Global Concrete Floor Grinder, 1.5HP, 110 Volt, Single Phase - DFG280

The DFG280 gets into every tight spot and small corner. It is an easy must-have for every contractor and rental house!

FEATURES

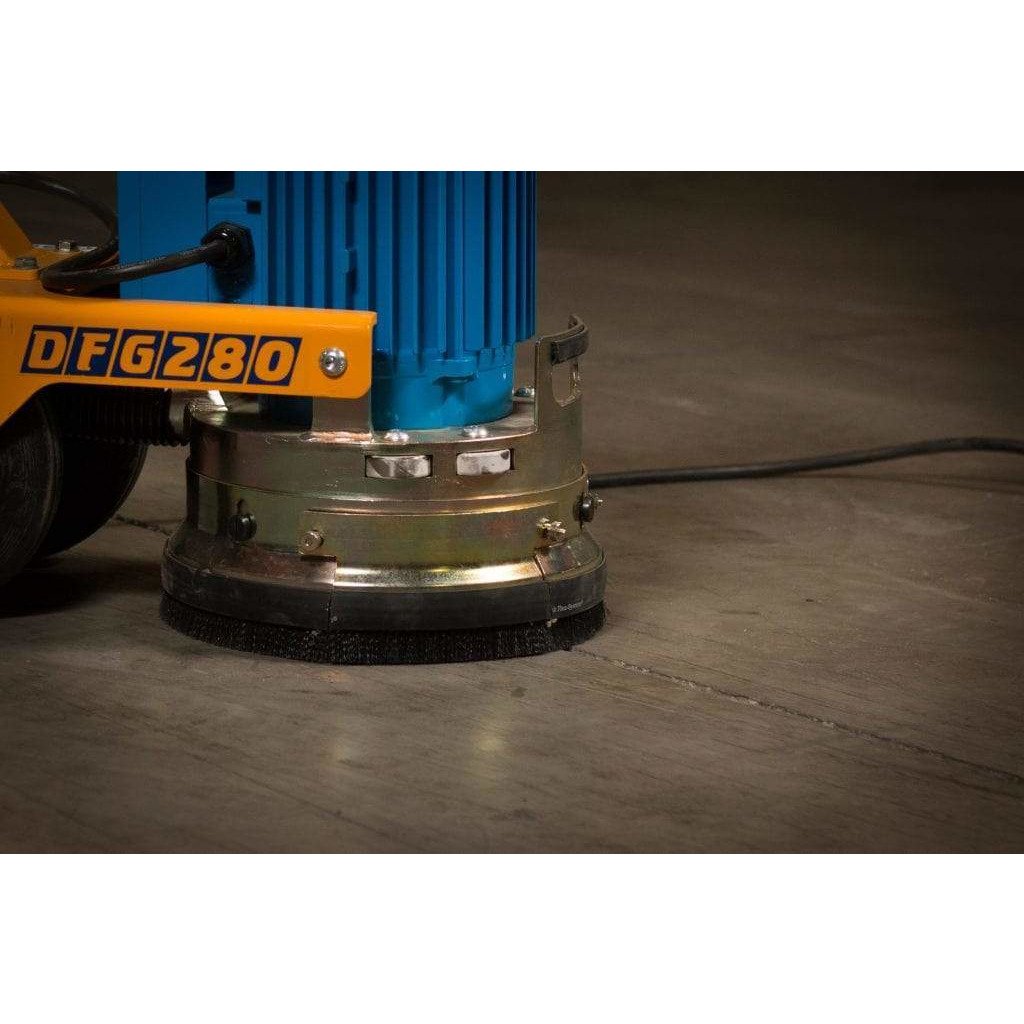

  • Single-head design with 10""/250mm diameter
  • Floating head design helps the machine grind consistently even when it hits high and low spots

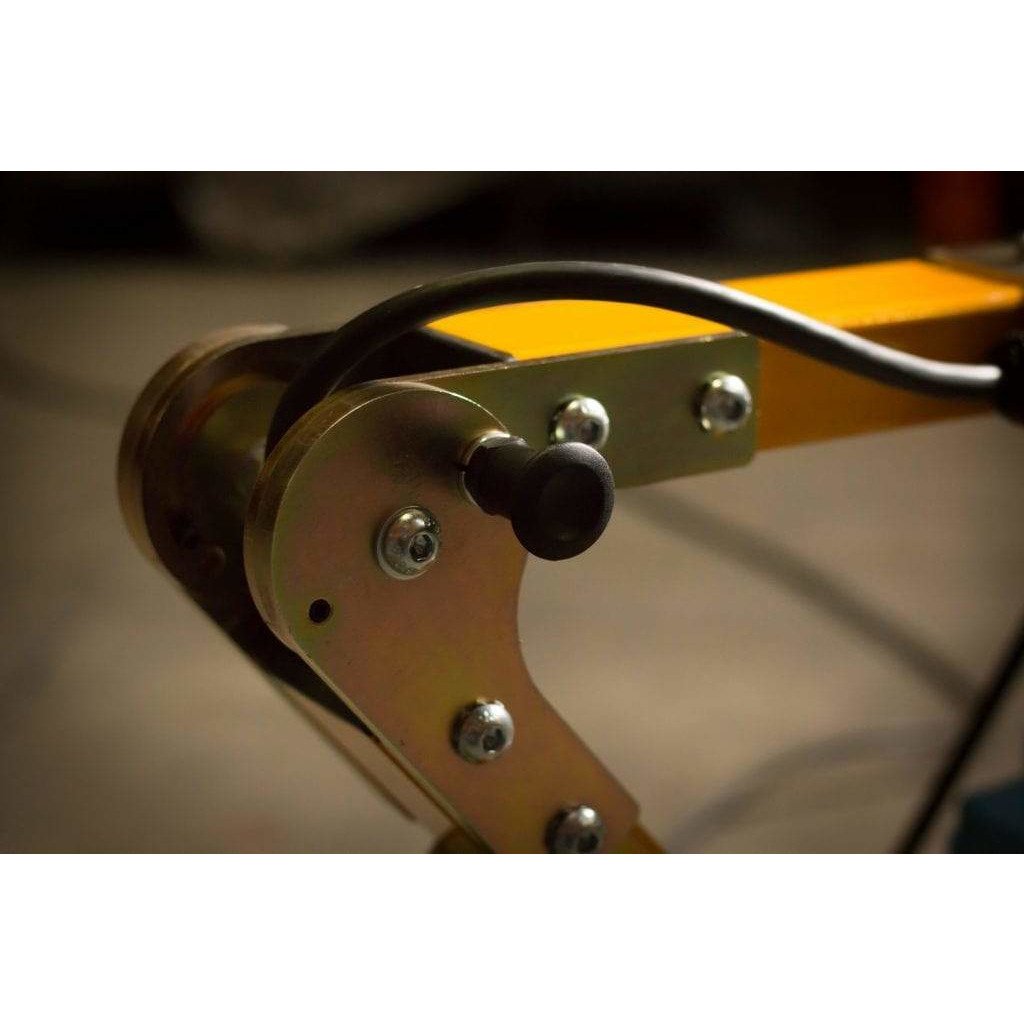

  • Folding handle, with multiple settings for height adjustment
  • Built-in lifting handles
  • Edge-grinding on both sides thanks to removable sections of skirting
  • Wall-walker roller-bearing for better control while performing edge work
  • Tough, compact design
  • Flexible 'morflex' coupling reduces vibration and extends the life of the machine
  • 2"/50mm dust extraction port
  • Compatible with TMAG or any standard 10"" diamond plate tooling

Specifications

MODEL DFG280
Engine/Motor Type Electric
Voltage 120V
Power Output 1.5hp (1.12kW)
Cycles 60Hz
Head Speed 1725 rpm
Motor Speed  1725 rpm
Length 40" (102cm)
Width 11" (28cm)
Height 37" (94cm)
Weight 97 lbs (44kg)
Removable Weight –

Type: Electric
Voltage: 230V
Power Output: 3hp (2.2kw)
Cycles: 50Hz
Head Speed: 1400rpm
Motor Speed: 1400rpm
Length: 40″ (1020mm)
Width: 11″ (280mm)
Height: 37″ (940mm)
Weight: 97lbs (44kg)

Downloads

Linesheet
Specifications Sheet

Manual & Parts Book
