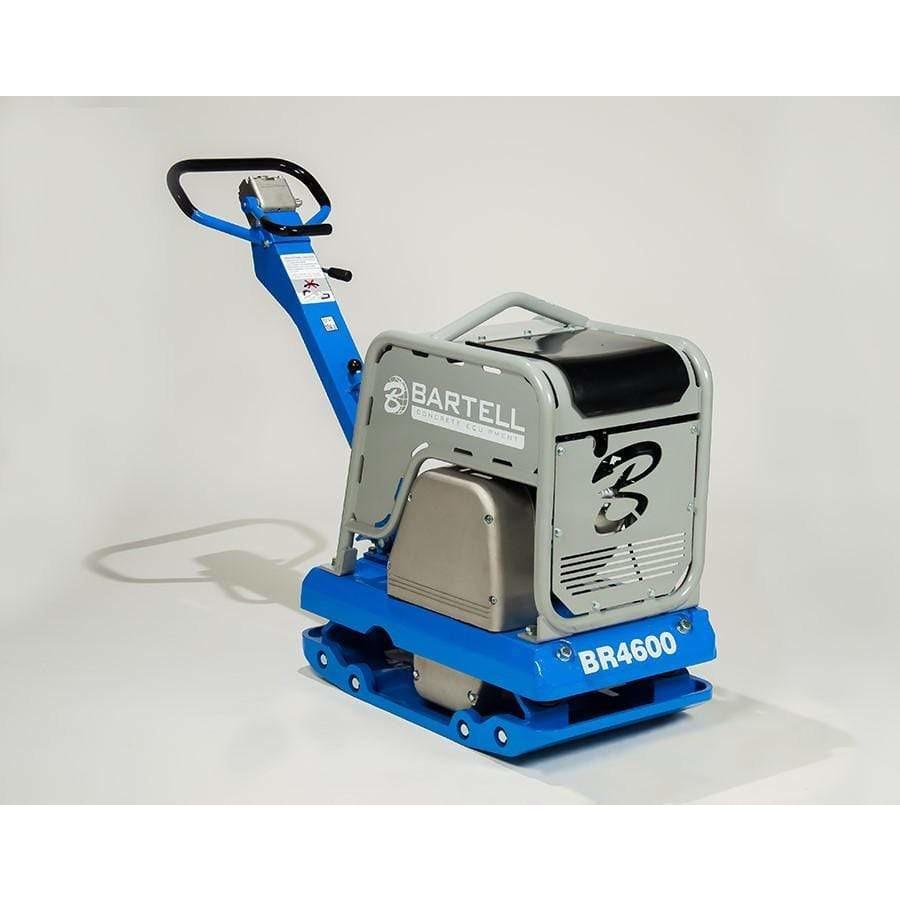

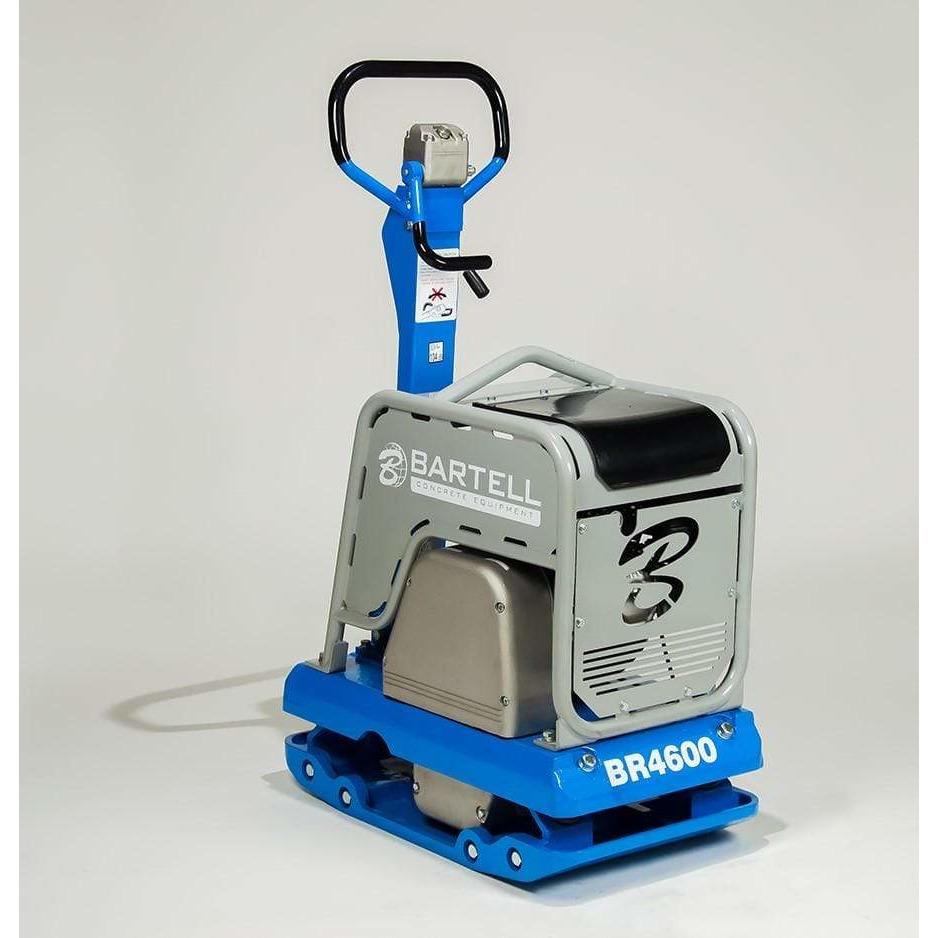

Bartell Global Reversible Plate Compactor, Honda/Yanmar, 4600KG Force - BR4600


FEATURES

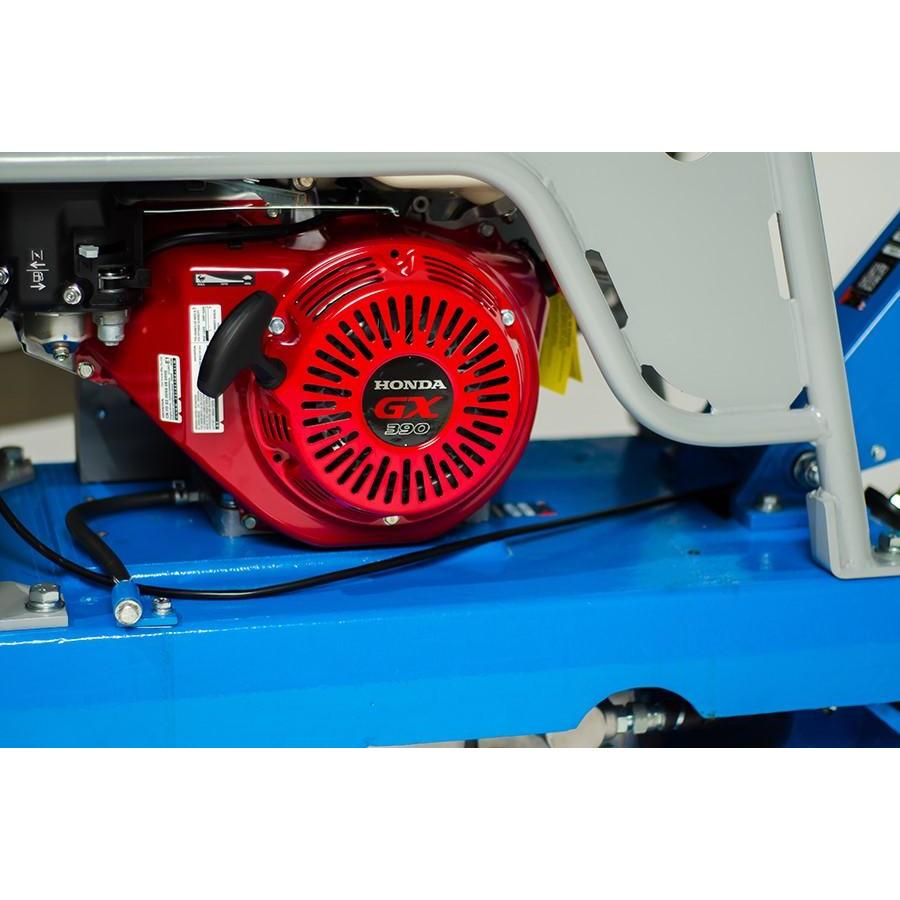

The BR4600 Reversible Compactor is built for medium – large applications. Equipped with a Honda GX390, it has the power and force to effectively compact deep base material properly.

  • Smooth Reversible Hydraulics allows effortless forward, backward, and spot compaction.
  • Heavy-Duty Aluminum Throttle provides maximum control and long-lasting tamping performance.

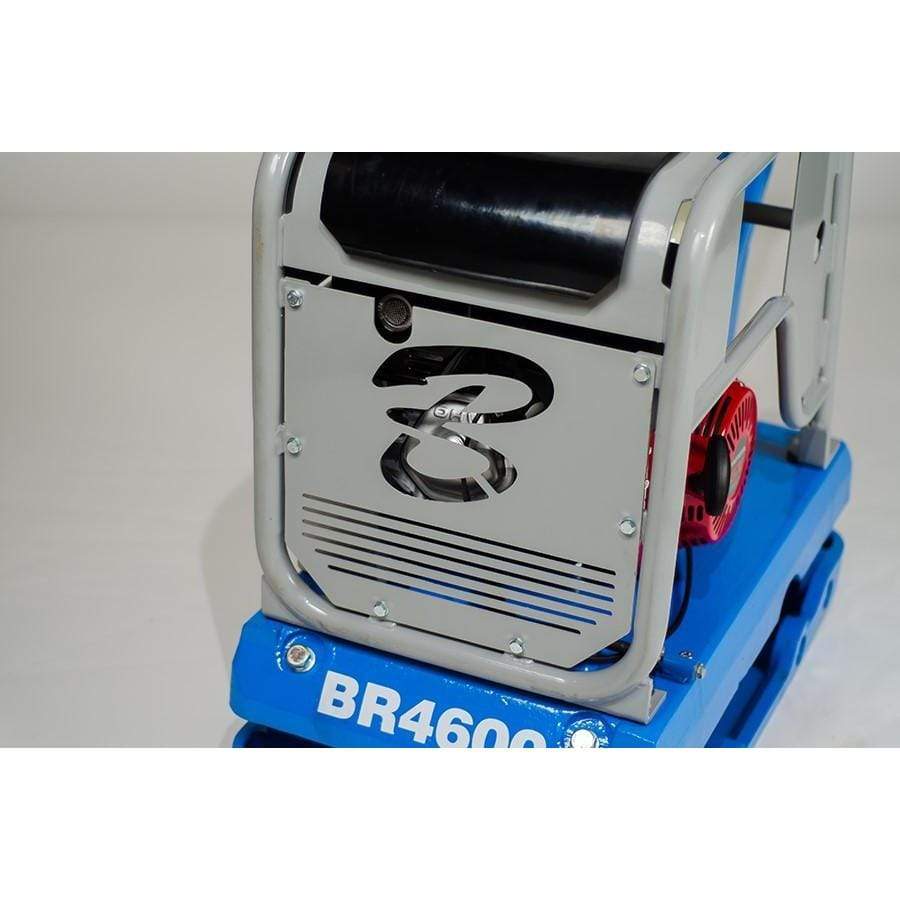

  • Enclosed Protective Frame guards the engine and hoist hook against damage.
  • Cast-Aluminum Belt Guard prolongs engine life and shields the clutch mechanism.
  • Ductile Iron Baseplate offers high-impact strength and superior wear resistance.
  • Expandable Accessories accept optional extension plates and protective urethane mats.
Specifications

Engine: Honda
Spec: GX390
Power Output Hp (Kw): 8.6(6.3)
Width, in. (mm): 19” (485)
Height, in. (mm): 37” (930)
Length, in. (mm): 62” (1570)
Weight, lbs (kg): 772 (350)
Compaction Force: 10120 lbf, 45 kN, 4590 kgf
Max Travel Speed: 75 ft/min, 22.9 m/min
