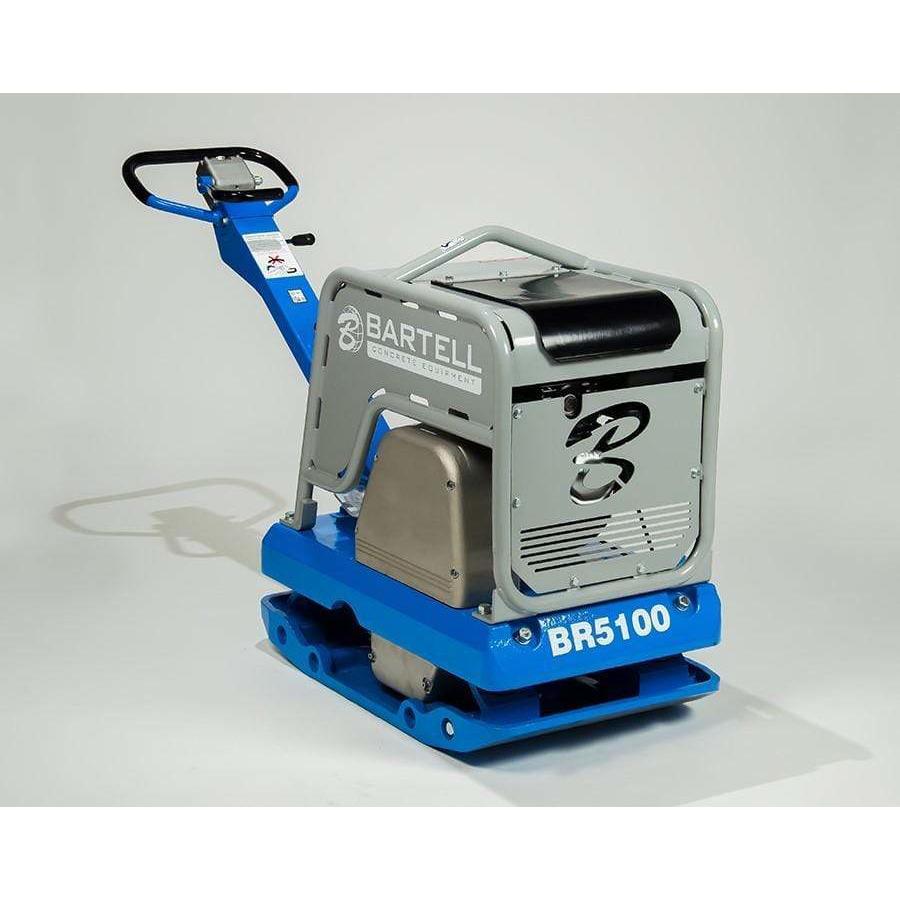

Bartell Global Reversible Plate Compactor, Yanmar Engine, 5100KG Force - BR5100


FEATURES

The BR5100 is the largest reversible plate compactor in Bartell’s fleet, offering high compaction force and travel speeds to help you accomplish your jobs quickly and effectively.

  • Smooth Reversible Hydraulics allows effortless forward, backward, and spot compaction.
  • Heavy-Duty Aluminum Throttle provides maximum control and long-lasting tamping performance.
  • Built-in lifting bale for increased engine and guide hook protection
  • Cast-Aluminum Belt Guard prolongs engine life and shields the clutch mechanism.
  • Ductile Iron Baseplate offers high-impact strength and superior wear resistance.
  • Optional Extension Plates expand your compacting coverage.
  • Full-Speed Reversibility maintains maximum speed in forward and reverse.
  • Dual-Start Options feature reliable key start or recoil start capability.
Specifications

Engine: Yanmar Diesel
Spec: L100W
Power Output Hp (Kw): 9.3 (6.9)
Width, in. (mm): 20” (500)
Height, in. (mm): 37” (930)
Length, in. (mm): 65” (1610)
Weight, lbs (kg): 1036 (470)
Compaction Force: 11244 lbf, 50 kN, 5100 kgf
Max Travel Speed: 72 ft/min, 22 m/min

Manuals

Spec Sheet
