Product Description

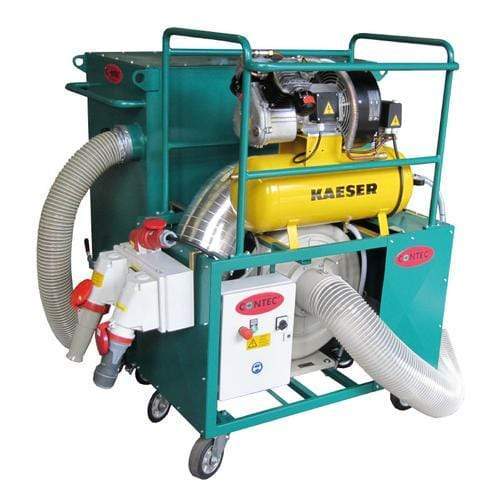

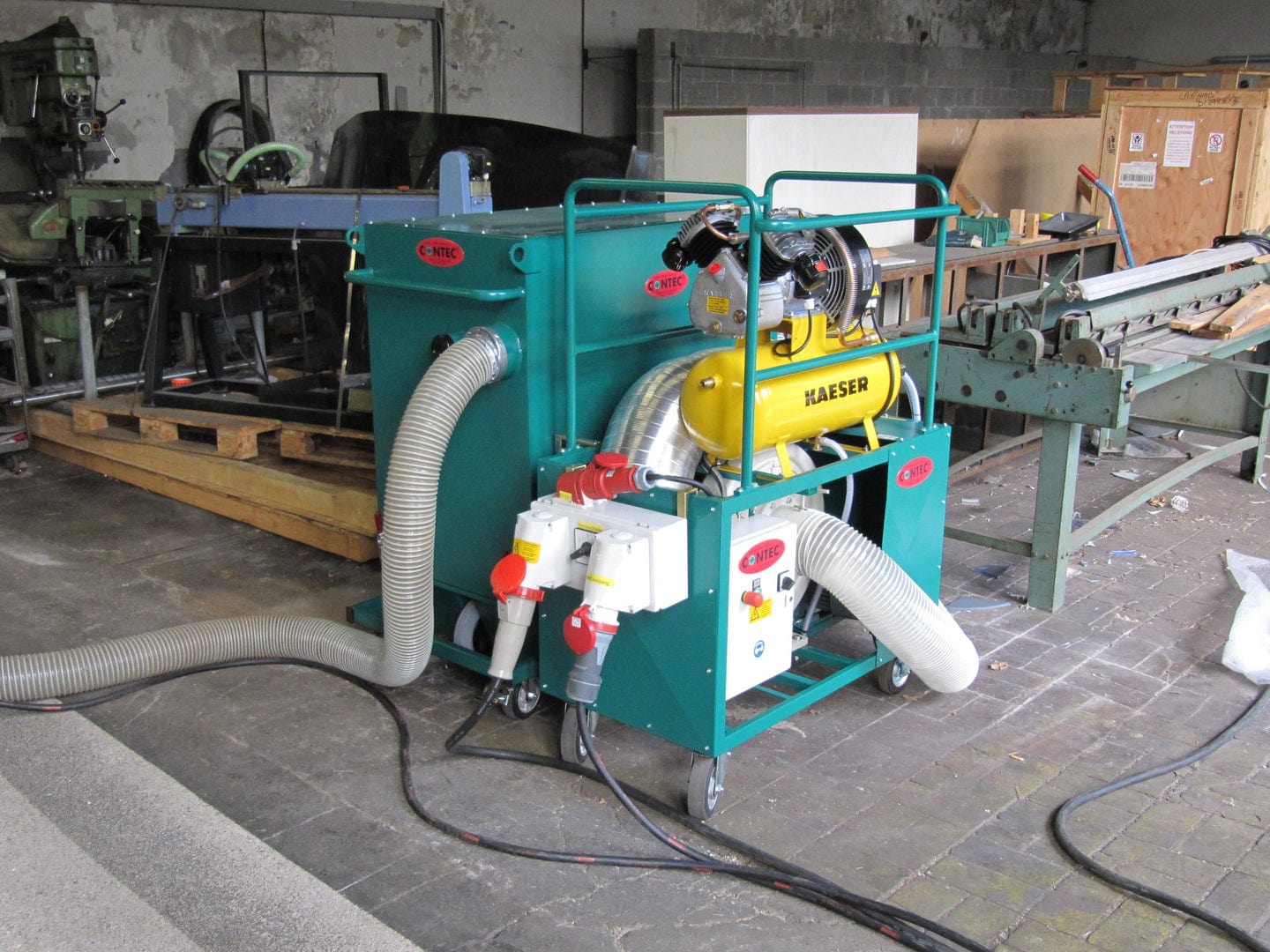

Shot Blasting Dust Collector, 480V, 3 Phase - R2D2-7

Built on the field-proven engineering of the standard R2D2 model, the high-performance R2D2-7 industrial dust collector features an upgraded, ultra-powerful ventilator and compressor system. To handle demanding commercial jobs, its filtration capacity has been expanded with two additional filter cartridges, delivering a massive 14 square meter filter surface area for superior dust containment. This heavy-duty performance upgrade provides the maximum extraction power and high-volume airflow required to support larger, high production surface preparation machinery seamlessly for the CONTEC© shotblasters ELGATOR® and MODUL 350/2®.

Features

Applications for the CONTEC© Dust collectors include:

  • Construction industry - to connect to planers, grinders, saws, shotblasters etc.
  • Industrial plants - to remove chippings, dirt and dust
  • Builders for cleaning - removing sand, rough material and to connect to machines and hand tools
  • Maintenance companies - to remove litter e.g. on railways or organic material such as leaves … and much much more

Specifications

Power Unit



 Compressor

Voltage

400 V



Frequency

50 Hz



Phase

3



Current Consumption

17.8 A



Motor Rating

7.5 kW

2.4 kW

Motor nominal Current

14.8 A

3 A

Motor Rotation Speed

2880 rpm

1500 rpm

Weight

247 kg



Height

157 cm



Length

112 cm



Width

63 cm



Air Flow

62 m3/min



Depression

8700 Pa



Ventilator Rotation Speed

6350 rpm









Filter unit

Container Version

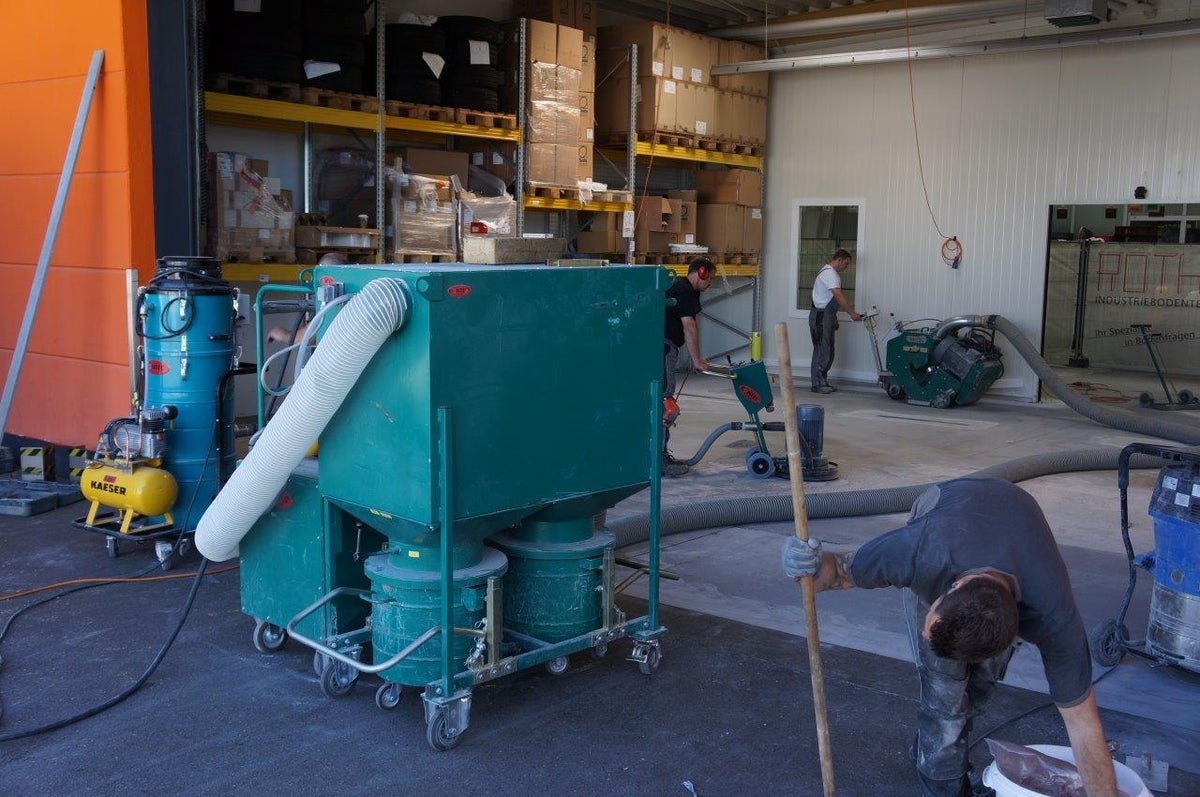

Bag Version

Weight

202 kg

on request

Height

141 cm

on request

Length

137 cm

on request

Width

80 cm

80 cm

Filter Area

14 m2 (7 x 2m2)

14 m2 (7 x 2m2)

Filter Crtridges

7

7

Capacity Dust Bin

140 l

2 x 75 l

Dust Port Diameter

70, 125, 150 mm

70, 125, 150 mm

Filter Cleaning

Automatically by Air Pressure

Automatically by Air Pressure

Accessories

Dust Hoses

Most of the CONTEC Surface Preparation Machines can be operated dust free. To connect the machine with the Dust Collector you need a Dust Hose.

Filter Cartridge

Filter Cartridge for CONTEC Dust Collectors with an automatically cleaning system by air pressure

R2D2 HEPA Filter Extension

HEPA Filter Extension for CONTEC Dust Collector R2D2

The filtration attachment is manufactured to securely clamp to the side of the R2D2 Power Unit. It is designed to filter the exhaust of the ventilator. It uses a quality, large volume replaceable filter. The addition of a pressure gauge ensures that the operator knows when to change the filter, in order to meet requirements.
