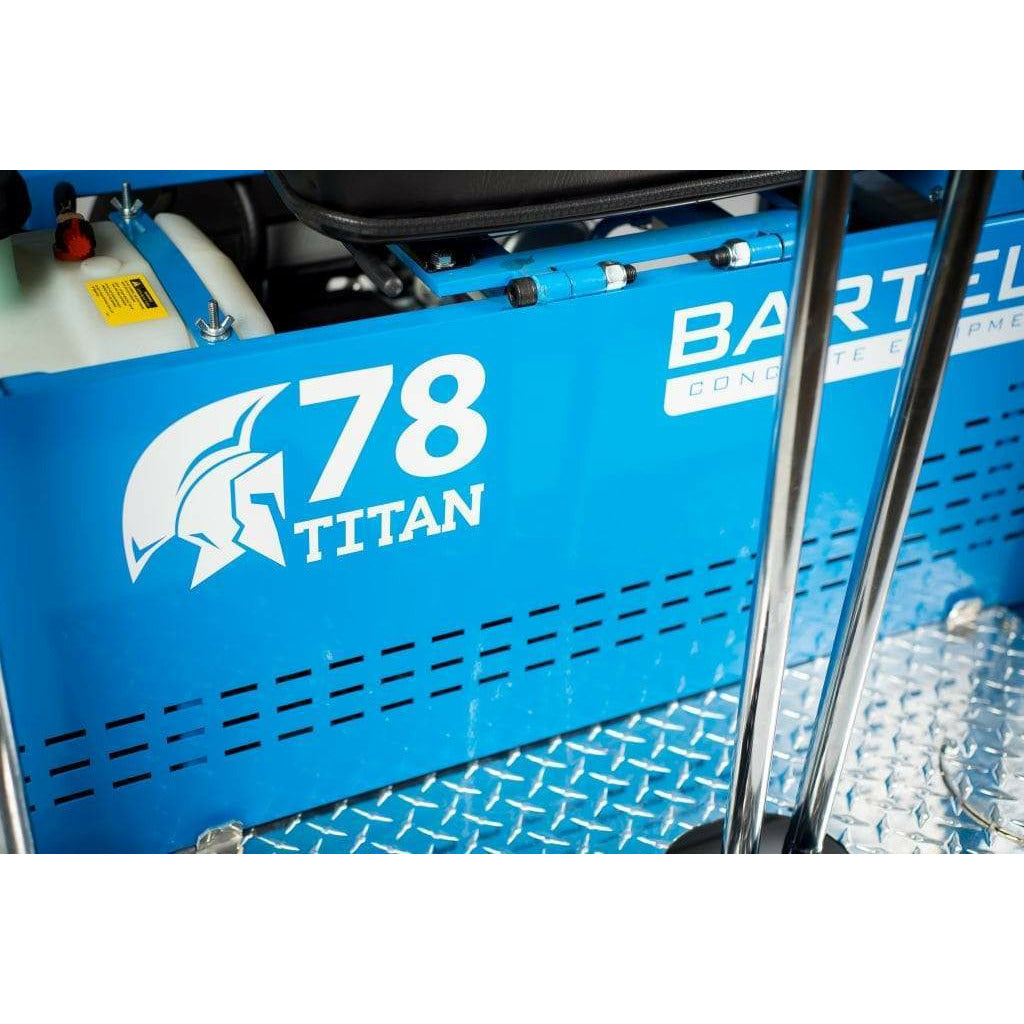

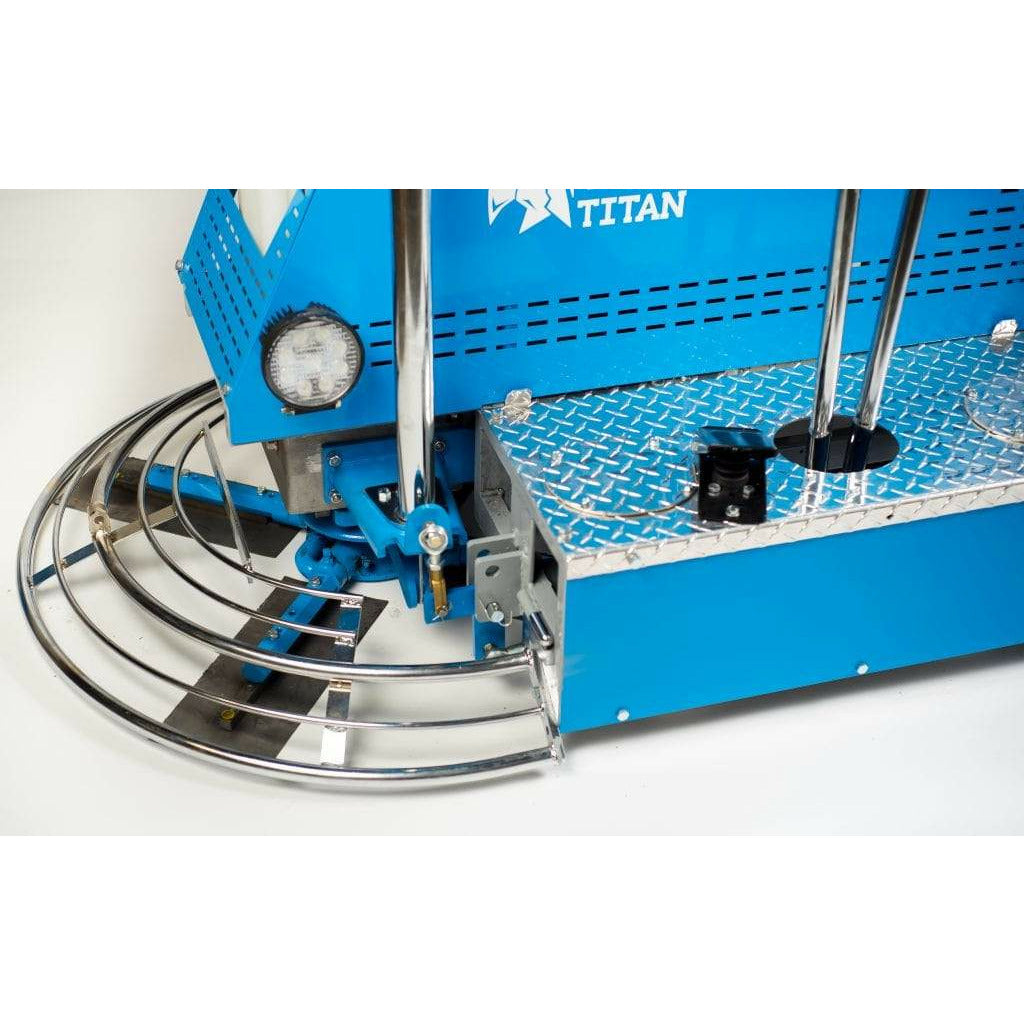

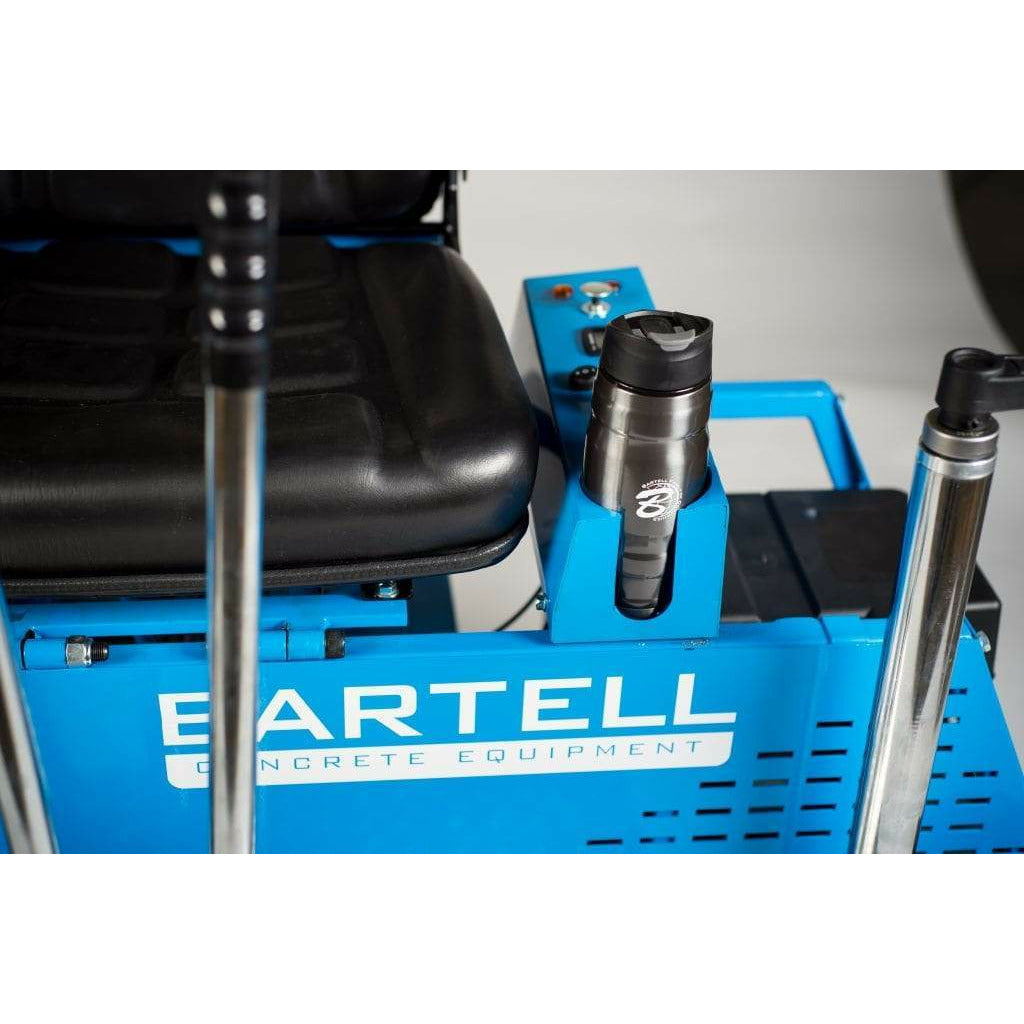

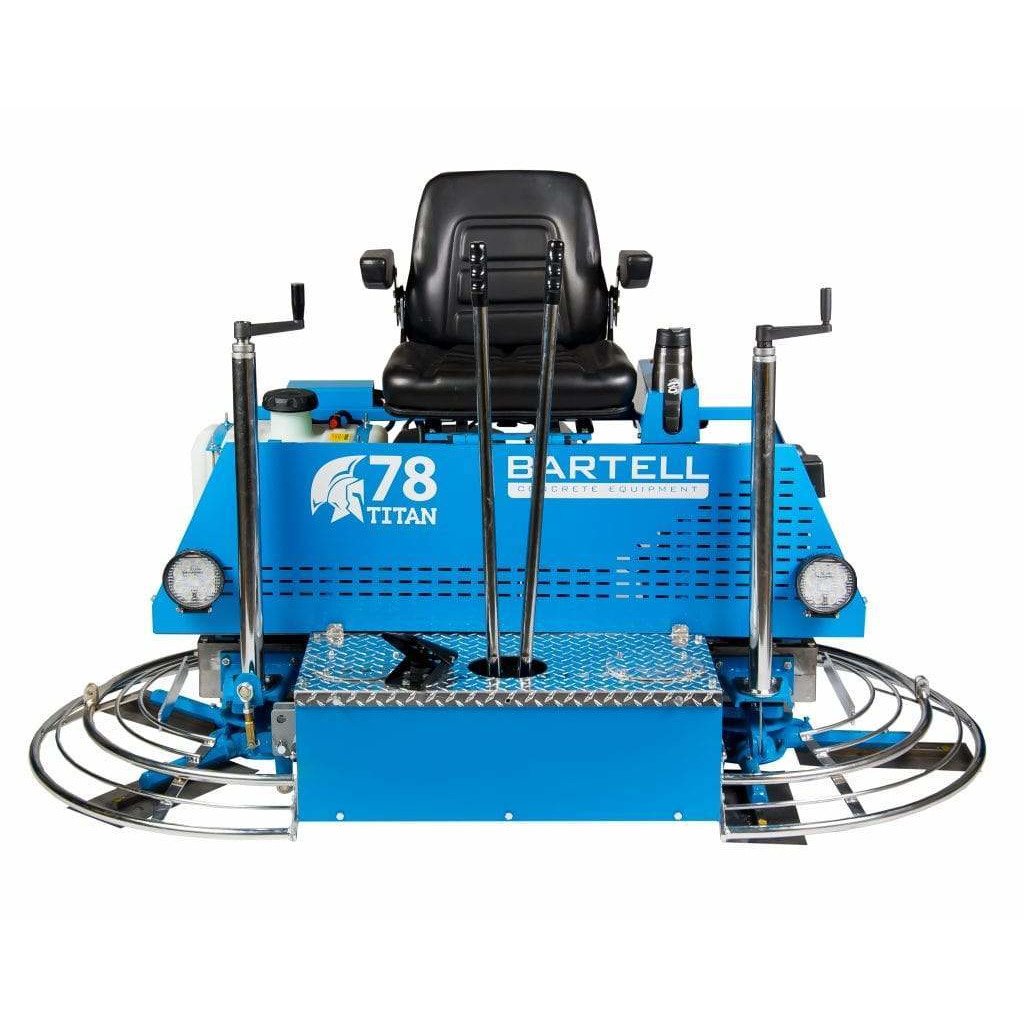

Bartell Global Titan 78 Ride On Power Trowel,  Honda/Kohler Engine - TITAN78


FEATURES

  • 6″ lower to the ground

  • 19” height from bottom of foot to seat

  • LED Lights in front and rear

  • 12v Outlet for USB charging

  • Greater visibility to blade

  • New accelerator pedal

  • Low profile design (Puts operator closer to concrete)

  • Heavy duty gearbox

  • Multiple engine selection

  • Weight plate add-on (Add up to 225lbs)

Specifications

Type: Panning & Finishing
Power Source: Kohler CH730 / Kohler 7CH40 / Kohler ECH749
Power Output: 23/25/26.5hp
Float Blade Size: 10” x 14” (25cm x 36cm)
Finish Trowel Size: 6“ x 14” (15cm x 36cm)
Combination Blade Size: 8” x 14” (20cm x 36cm)
Float Pan: 36” (91cm)
Operating Weight: 880lbs (399kg)
Length: 78” (198cm)
Width: 40.5” (103cm)
Height: 46″ (117cm)
Weight: 844lbs (383kg)

Manuals

Spec Sheet
