Robopac Robot Master Plus Semi-Automatic Pallet Wrapping Machine, Stretch Wrapper

SKU Robot Master Plus
$15,950.00
$13,795.00
$15,950.00
$13,795.00

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Prime Machinery Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@primemachinerysupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

Product Description

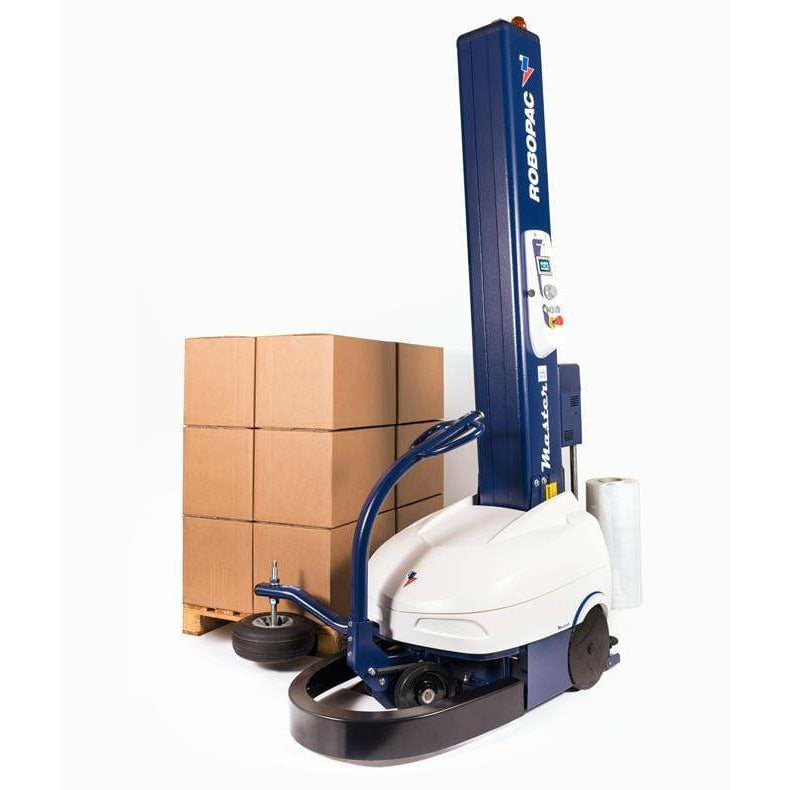

Robopac Robot Master Plus Semi-Automatic Pallet Wrapping Machine, Stretch Wrapper

Due to its extensive experience, Robopac is now introducing a new range of entry level self-propelled wrapping machines, the Robot Master.

The Robopac Robot Master combines sleek design with advanced technology to deliver a rugged, ultra-reliable mobile pallet wrapping solution. Built to the strict performance and safety standards of top-tier industrial machinery, this compact and agile robot leverages Robopac’s global expertise of over 25,000 units sold worldwide. While engineered to endure harsh industrial environments, it features an incredibly intuitive interface for easy operation. For ultimate workplace safety, it comes fully equipped with a startup siren, high-visibility flashing safety light, an immediate stop button, and automatic emergency bumpers.

Features

CONTROL PANEL

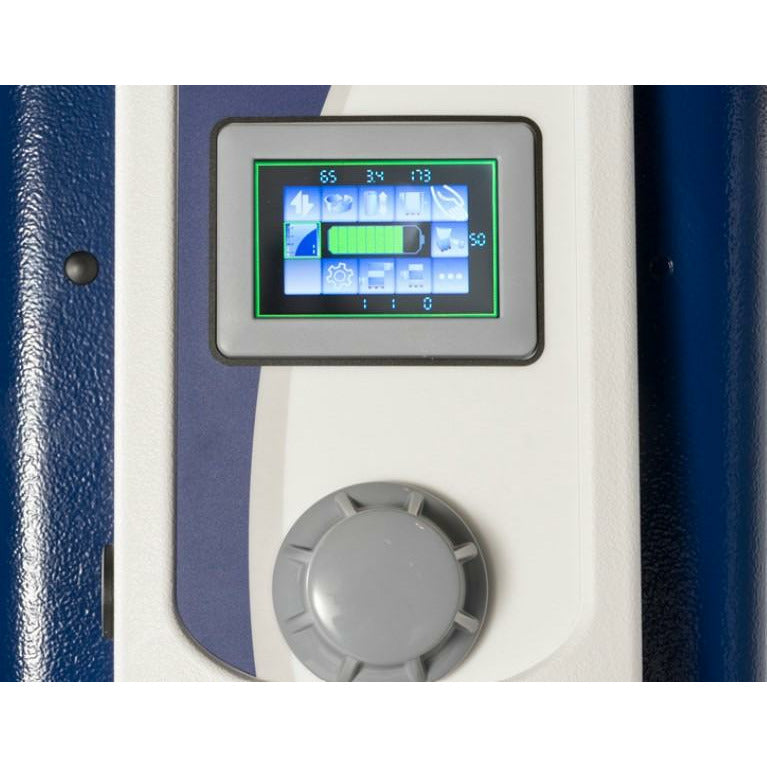

New 3.5 inches control panel with color graphic display.

FRD CARRIAGE
This advanced spool carriage uses a mechanical brake on the return roller to ensure consistent film stretch regardless of roll diameter. An intuitive brake release device allows operators to easily hook film to the pallet base, while auxiliary metal rollers increase surface contact to prevent slippage.

MOVE EVERYWHERE

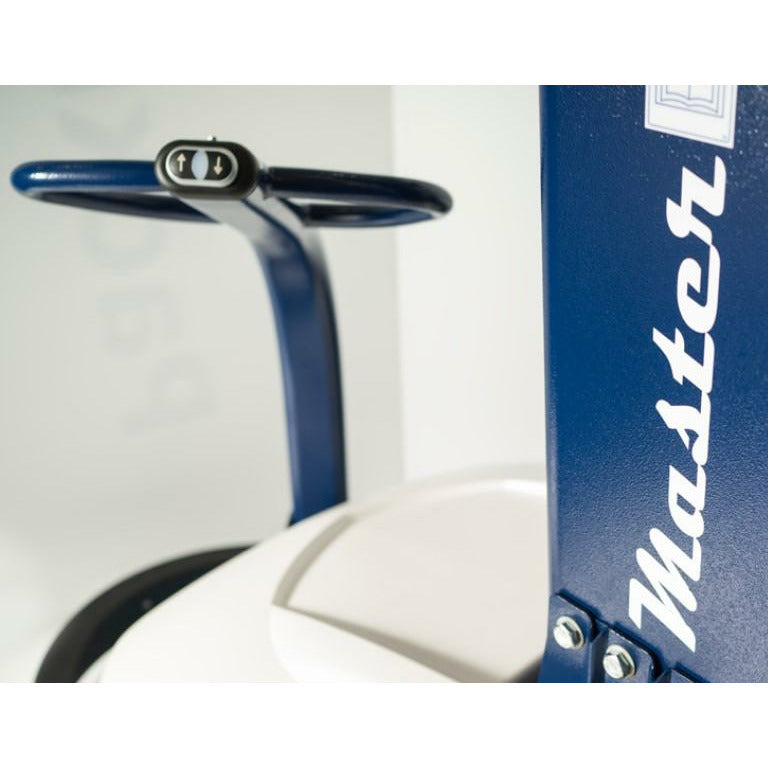

The integrated steering rudder lets you easily transport the wrapping robot across your facility without needing a forklift. Ergonomically positioned manual controls ensure comfortable, effortless steering and stress-free operation for your warehouse crew.

TRACING SYSTEM

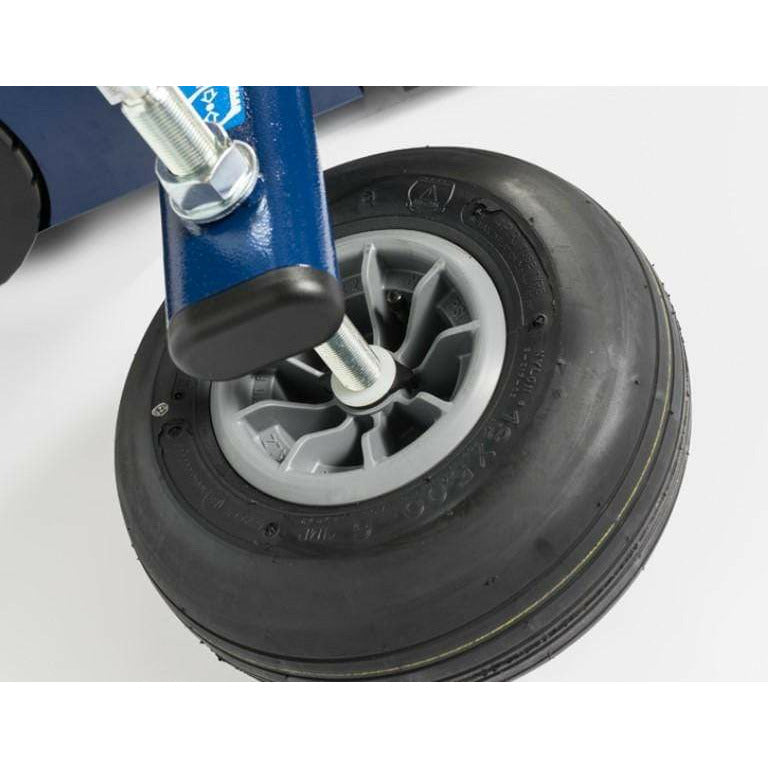

The integrated tracking wheel automatically follows the contours of any pallet, allowing the robot to wrap your loads with complete autonomy. This precision guidance system safely adapts to variable load shapes, ensuring perfect machine alignment without manual intervention.

Specifications

Performance Criteria
Production Speed: Up to 30 LPH
Rotation Speed: Variable from 1-3 miles/hr.
Cycle Expectancy: 200 loads based on wrapping pattern

Load Handling System
Maximum Load Dimensions: Unlimited L x Unlimited W x 86” or 110” H
Minimum Load Dimensions: 24” L x 24” W x 10” H
Maximum Load Weight: Unlimited
Minimum Load Weight: 200 lbs.

Film Delivery System
• Roller stretch variable to 100%
• FRD Carriage
• Film Width: 20”
• Height Sensing: Infrared photocell
• Film threading: Patented S-Pattern

Safety Features
• Pressure sensitive bumper with E-Stop
• Flashing light for machine in operation. Floor level strobe lights indicate wrap zone
• Audible cycle throughout the wrapping
process
• Patented anti-fall device
• CE Compliant

Utility Requirements
Charging System: 115V, 20 AMP, 60 Hz
Battery: 24V Battery System
Warranty: 1 Year

Data Sheet

TECHNICAL FEATURES
Batteries

N°2 12V 75 Ah (C5) AGV (M80) / N°2 12V 110 Ah (C5) Pb/Acid (M110)
N° of pallets per battery charge

>150 (M80) / >250 (M110)
Machine rotation speed m/min

35÷65
Carriage up-down speed m/min

1,5÷4,6
Minimum product dimensions (LxW) mm

600x600
Maximum product height mm

2200 std. 2400 opt.
Film carriage type

FRD, FR (M80) / FRD, FR, PDS (M110)
Film stretch

manual (FRD), adjustable from panel (FR, PDS)
Film pre-stretch

n.a. (FRD, FR), fixed 250% std. (PDS)
Forklifting

rear
ELECTRICAL FEATURES
Power supply voltage V

100-240 1Ph
Power supply frequency Hz

50/60
Installed power kW

0,3
REEL FEATURES
Max reel dimensions mm

500x300
Max reel weight kg

20
Film thickness μm

17÷35

ROBOPAC USER MANUALS

At Robopac USA, we understand the importance of efficient and reliable secondary packaging equipment. That’s why we not only provide top-of-the-line machinery but also ensure that our customers have all the information they need to operate them seamlessly with our Robopac user manuals.

Our collection of manuals for Robopac stretch wrap machines and other secondary packaging equipment is a testament to our commitment to customer satisfaction. In addition to a basic overview of the machine, these instruction manuals provide assembly instructions, safety guidelines, and other invaluable information to help you make the most of your equipment. Explore our collection of Robopac user manuals today and experience the difference that Robopac makes in optimizing your packaging processes.

SCALE PACKAGES

PIT INSTALLS

SEMI-AUTOMATIC STRETCH WRAPPERS

AUTOMATIC STRETCH WRAPPERS

CASE ERECTORS

CASE TAPERS

About Robopac

Robopac, established in 1982, is the world leader in stretch wrapping technology, with over 10,000 machines per year, 90% of which are exported to the main international markets. Our company develops six technologies: robot, turntable, horizontal, and rotating arm semi-automatic and automatic stretch wrappers to stabilize palletized loads with stretch film, case packers, palletizers, case erector and sealers and laser guided vehicles. With an extensive distribution network and customer and spare part service centers, Robopac ensures prompt and efficient post-sales service on the global level.


ROBOPAC is the world leader in the design, production, integration and service of secondary packaging solutions.

ROBOPAC Global Fast Facts

Active Installed Base:

  • 370 LGV systems
  • 900 Liquid Fillers
  • 2800 Palletizers / De-palletizers
  • 6100 Shrink Wrappers / Wrap Around Case Packers
  • 11000 Automatic Stretch Wrappers
  • 100k + Semi-automatic Stretch Wrappers
